Hydrosieve screens are resistant to clogging because they use curved wedge wire screen panels with V-shaped slots, allowing solids to remain on the surface while liquid passes through efficiently. The combination of slot geometry, curved design, and gravity-driven flow creates a natural self-cleaning effect.
For a complete guide, visit our Hydroseive Screen Guide

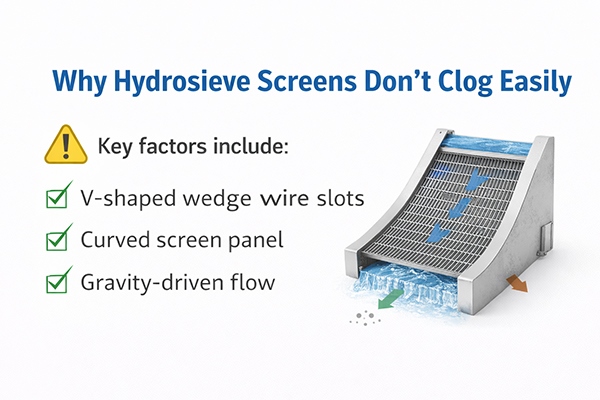

Hydrosieve screens are designed to minimize blockage through structural and hydraulic principles, rather than relying on mechanical cleaning.
The main anti-clogging factors include:
• V-shaped wedge wire slots
• Curved (parabolic) screen geometry
• Gravity-driven continuous flow
• Controlled solids discharge
These elements work together to reduce particle buildup and maintain consistent filtration performance.
The wedge wire screen is the core component responsible for anti-clogging performance.
1. V-Shaped Slot Design
Each slot is narrower at the surface and widens inward.
Effect:
• Prevents particles from getting trapped inside
• Reduces internal blockage
• Allows particles to stay on the surface for removal
This structure is often described as non-blinding, making it more reliable than traditional perforated or mesh screens.
2. Minimal Contact Surface
Only the top edges of the wedge wires contact the solids.
Result:
• Reduced friction
• Lower adhesion of particles
• Easier movement of solids
In hydrosieve applications, both curved wedge wire screens and flat wedge wire screens may be used, but curved designs generally provide better performance.
Key Differences
| Feature | Curved Wedge Wire Screen (Hydrosieve) | Flat Wedge Wire Screen |
|---|---|---|
| Geometry | Concave, parabolic | Flat |
| Flow behavior | Guided and accelerating | Straight, less controlled |
| Solids movement | Continuous sliding | Higher risk of accumulation |
| Effective area | Increased by curvature | Limited |
| Clogging tendency | Lower | Relatively higher |
Better flow distribution reduces localized clogging
Gravity-assisted solids movement prevents buildup
A higher effective area improves separation efficiency
Dynamic flow behavior keeps the surface cleaner
Hydrosieve screens operate without moving parts.
Working mechanism:
• Wastewater flows over the screen surface
• Liquid passes through wedge wire slots
• Solids remain on the surface
• Gravity pulls solids downward continuously
This process prevents accumulation and maintains stable operation.
Although designed to resist clogging, issues may occur under certain conditions.
Common causes:
• Incorrect slot size (too small)
• High levels of sticky or fibrous solids
• Uneven flow distribution
• Lack of cleaning or maintenance
To ensure optimal operation:
• Select an appropriate slot size
• Ensure uniform inlet flow
• Install spray cleaning systems if necessary
• Use pre-treatment for heavy solids
Proper design and operation are essential for long-term performance.
1. Why do wedge wire screens clog less than mesh screens?
Because wedge wire slots widen inward, preventing particles from getting stuck and reducing blockage.
2. Do hydrosieve screens require cleaning?
They typically require minimal maintenance, but periodic inspection or spray cleaning may be needed depending on the application.
3. Are hydrosieve screens suitable for high solids content?
They perform well under moderate solids loads, but high concentrations may require pre-treatment.
Hydrosieve screens resist clogging due to V-shaped wedge wire slots and curved design
Gravity-driven flow creates a natural self-cleaning effect
Curved wedge wire screens outperform flat screens in most applications
Proper design and operation are critical to maintaining performance
Hydrosieve screens achieve strong anti-clogging performance through design rather than mechanical complexity. The combination of wedge wire slot design, curved screen surfaces, and gravity-driven flow ensures efficient solid–liquid separation with minimal blockage.
By understanding these principles, engineers can design and operate hydrosieve systems more effectively, improving reliability and reducing maintenance in wastewater treatment and industrial filtration processes.
