Industrial bag filter housings are designed for continuous liquid filtration in demanding operating environments. Although the housing structure is built for long-term service, regular inspection and maintenance are still important to maintain filtration efficiency and reduce unexpected downtime.
A practical maintenance program should focus on several key areas, including pressure changes, filter bag condition, sealing performance, internal components, and the overall condition of the housing.
Proper maintenance helps operators identify problems before they affect the filtration process.
1. Maintain Stable Filtration Performance
The condition of the filter bag directly affects flow rate and filtration efficiency. A clogged or damaged filter bag may increase pressure drop, reduce flow capacity, or affect filtration quality.
Monitoring operating conditions allows users to determine when inspection or replacement is required.
2. Prevent Leakage and Filter Bypass
The sealing system plays an important role in preventing liquid leakage and bypass.
Regular inspection of:
• Gaskets
• O-rings
• Cover sealing areas
Inlet and outlet connections
helps ensure reliable operation.
3. Extend Equipment Service Life
The housing body, support basket, and sealing components are exposed to continuous operating conditions. Regular checks can help identify corrosion, wear, or damage before they become major problems.

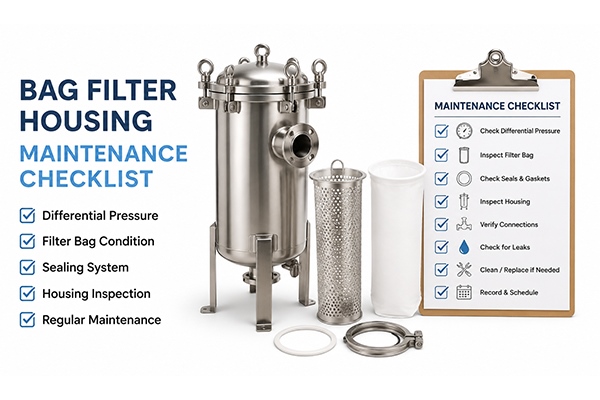

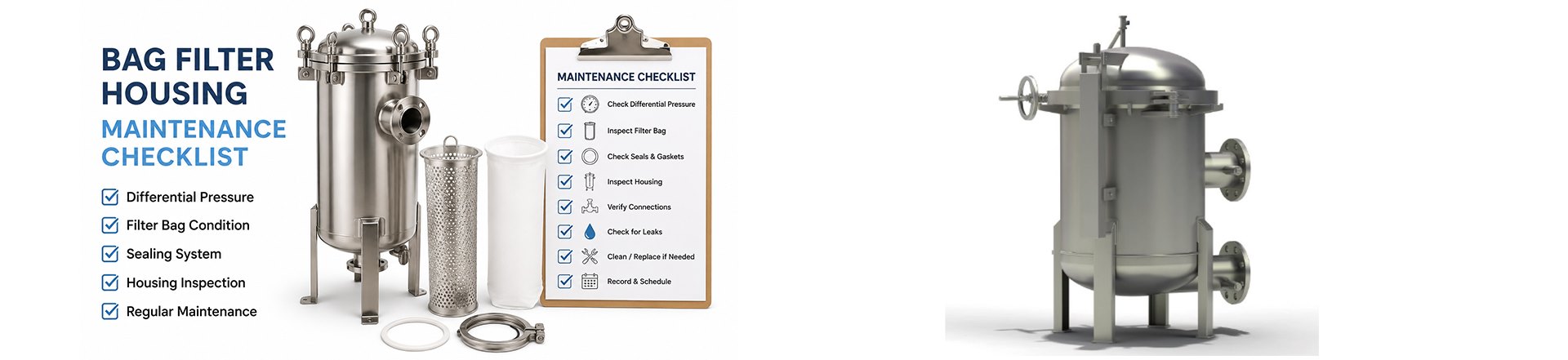

The following checklist covers the main components and operating conditions to inspect during routine maintenance.
| Inspection Item | What to Check | Possible Issues |
|---|---|---|
| Differential Pressure | Monitor pressure difference before and after filtration | Filter bag clogging or abnormal flow resistance |
| Filter Bag | Check contamination, damage, deformation, and installation condition | Reduced filtration performance or bypass |
| Support Basket | Inspect deformation, corrosion, or damage | Poor filter bag support |
| Sealing System | Check gasket and O-ring condition | Leakage or improper sealing |
| Housing Body | Inspect corrosion, surface damage, and residue buildup | Reduced service life |
| Connections | Check inlet/outlet connections and fittings | Leakage or unstable operation |
1. Monitor Differential Pressure
Differential pressure is one of the most important indicators during filtration operation.
An increasing pressure difference usually indicates that the filter bag is becoming loaded with captured particles and may require cleaning or replacement.
Abnormal pressure changes may also indicate:
• Incorrect filter bag installation
• Damaged sealing components
• Flow problems within the system
2. Inspect Filter Bags and Support Baskets
Filter bags and support baskets should be checked regularly, especially in applications with high solid loading.
Inspection should include:
• Filter bag damage or wear
• Excessive contamination
• Proper positioning inside the basket
• Basket deformation or corrosion
Using the correct filter bag specification is also important for maintaining filtration performance.
For more information about filter bag selection, see our guide on filter bag micron ratings.
3. Check Gaskets and Sealing Components
A reliable sealing system prevents liquid leakage and ensures that fluid passes through the filter bag instead of bypassing the filtration area.
During inspection, check:
• Aging or hardening of gaskets
• Damage to O-rings
• Cleanliness of sealing surfaces
• Proper installation after maintenance
Damaged sealing components should be replaced promptly.
4. Inspect the Housing Body and Internal Condition
The housing vessel should be inspected periodically for:
• Corrosion
• Surface damage
• Material buildup
• Unusual wear
The inspection frequency depends on the process fluid, operating temperature, chemical conditions, and working environment. Click here to learn more: Main Components of a Bag Filter Housing
Maintenance intervals vary depending on application conditions. A filtration system handling clean liquids may require less frequent inspection, while systems with high particle loading or corrosive fluids may need more regular checks.
| Operating Condition | Recommended Inspection Focus |
|---|---|
| Continuous filtration operation | Monitor pressure changes and leakage |
| High solid content liquids | Check filter bags more frequently |
| Corrosive process fluids | Inspect housing and sealing components |
| Critical filtration processes | Establish scheduled preventive maintenance |
1. Ignoring Increasing Pressure Drop
A continuously increasing pressure difference may indicate a clogged filter bag. Delaying inspection can reduce flow performance and increase operating pressure.
2. Continuing to Use Damaged Filter Bags
Damaged filter bags may allow contaminants to pass through the system and reduce filtration effectiveness.
3. Neglecting Sealing Inspection
Worn gaskets or damaged sealing surfaces can cause leakage and reduce filtration reliability.
4. Replacing Components Without Checking the Cause
Frequent replacement without identifying the reason for failure may increase maintenance costs. Checking operating conditions and equipment status helps solve the actual problem.
Maintenance requirements are closely related to bag filter housing design and manufacturing quality.
A well-designed housing should provide:
Reliable sealing performance
Easy access for filter bag replacement
Durable construction
Proper support for internal components
As an industrial bag filter housing manufacturer, YuanLv Filter focuses on customized filtration equipment designed for different operating conditions and application requirements.
For a detailed overview of housing structure, components, and selection considerations, refer to our industrial bag filter housing guide.
1. How often should a bag filter housing be inspected?
Inspection frequency depends on the filtration process, liquid characteristics, operating conditions, and required filtration reliability.
2. What indicates that a filter bag needs replacement?
Increasing pressure drop, reduced flow rate, visible damage, or poor filtration performance are common indicators.
3. Which parts of a bag filter housing require regular inspection?
The main inspection points include filter bags, support baskets, sealing components, housing body, and connections.
4. Can regular maintenance extend bag filter housing service life?
Yes. Routine inspection and timely replacement of worn components can help maintain stable operation and reduce unexpected downtime.
A proper maintenance checklist helps keep industrial bag filter housings operating reliably. Monitoring differential pressure, inspecting filter bags, checking seals, and maintaining housing components are key steps for achieving consistent filtration performance.
Regular maintenance combined with reliable housing design can improve equipment service life and reduce operational issues in industrial filtration systems.
Proper maintenance should also be combined with correct equipment selection. Learn more about how to choose a suitable bag filter housing for your application.
