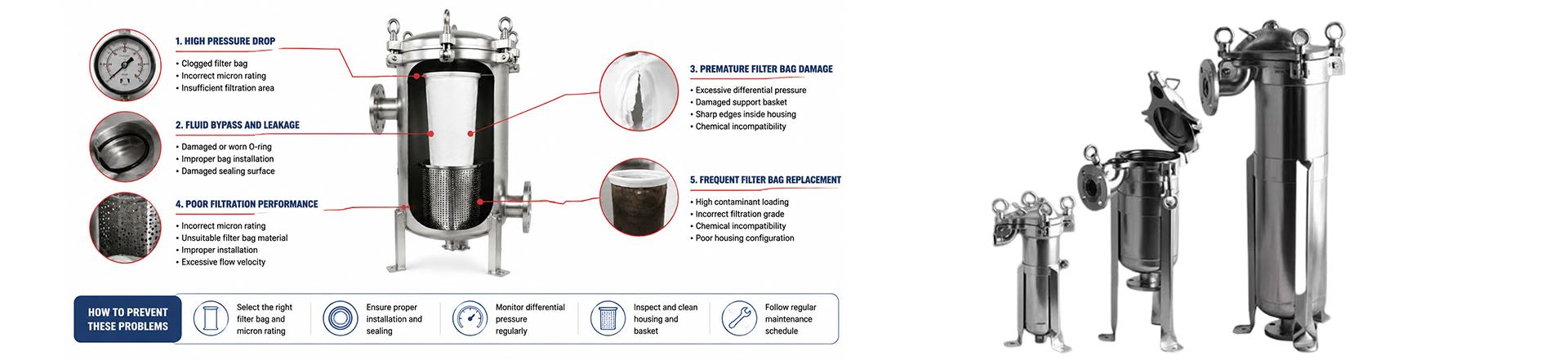

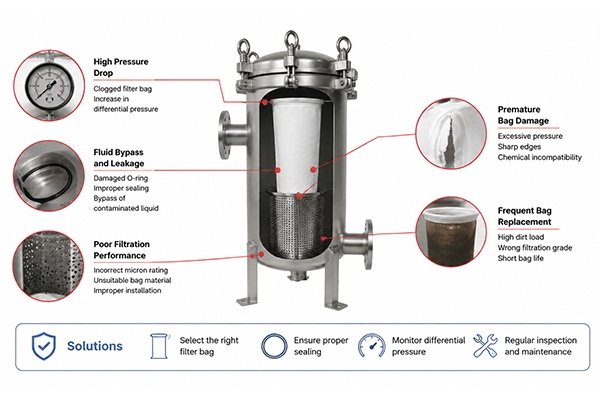

Common Bag Filter Housing Problems and How to Solve Them

Bag filter housings are designed for reliable liquid filtration in industrial processes. However, filtration problems may occur when filter bags, sealing components, or operating conditions are not properly matched.

Common issues include high pressure drop, fluid bypass, leakage, and premature filter bag failure. Identifying the cause helps reduce downtime and improve filtration performance.

Learn more about the industrial bag filter housing guide.

1. High Pressure Drop and Reduced Flow Rate

Problem

A high differential pressure usually indicates that the filter bag is becoming clogged or the filtration capacity is insufficient.

As contaminants accumulate on the filter media, liquid flow becomes restricted and pressure loss increases.

Common Causes

• Clogged filter bag

High levels of solids, sludge, or viscous materials can reduce available filtration area.

• Incorrect micron rating

A filter bag with a finer rating than required may clog faster and increase pressure drop.

• Insufficient filtration area

A small housing size may not provide enough capacity for the required flow rate.

Solutions

Replace filter bags before excessive pressure buildup.

Select the correct micron rating based on process requirements.

Use larger or multi-bag housings for higher flow applications.

Related Reading: filter bag micron rating selection

2. Fluid Bypass and Leakage

Problem

Fluid bypass occurs when contaminated liquid passes around the filter bag instead of flowing through the filter media.

This can reduce filtration efficiency and allow unwanted particles to enter the process.

Common Causes

• Damaged O-ring or sealing components

Worn seals, incorrect materials, or improper installation may cause leakage.

• Incorrect filter bag installation

The filter bag collar must be properly seated on the basket and sealing surface.

• Damaged sealing area

Scratches or deformation can affect sealing performance.

Solutions

Replace damaged O-rings and sealing components.

Check filter bag positioning during installation.

Select sealing materials compatible with operating conditions.

3. Premature Filter Bag Damage

Problem

Filter bags may tear, collapse, or wear out faster than expected.

Common Causes

• Excessive differential pressure

High pressure differences can create mechanical stress on the filter bag.

• Damaged support basket

A deformed basket or sharp internal edges may damage the filter media.

• Incorrect filter bag material

Chemical incompatibility or unsuitable temperature resistance can shorten service life.

Solutions

Inspect the support basket during maintenance.

Remove sharp edges inside the housing.

Select suitable filter bag materials according to fluid properties.

In-depth Reading: bag filter housing components

4. Poor Filtration Performance

Problem

The housing operates normally, but the filtration result does not meet the required standard.

Common Causes

• Incorrect micron rating

• Wrong filter bag material

• Improper bag size selection

• Excessive flow velocity

Solutions

Review:

• particle size

• liquid viscosity

• operating temperature

• filtration requirements

Proper filter bag selection is essential for stable filtration performance.

5. Frequent Filter Bag Replacement

Problem

Short filter bag service life increases maintenance frequency and operating costs.

Common Causes

• High contaminant loading

• Incorrect filtration grade

• Chemical incompatibility

• Poor housing configuration

Solutions

Use staged filtration when required.

Select suitable filter media.

Match housing size with flow rate and contamination level.

How to Prevent Bag Filter Housing Problems

Most filtration failures can be reduced through proper equipment selection and routine inspection.

Recommended practices include:

Select the correct bag filter housing size.

Match filter bag micron rating and material with the application.

Inspect gaskets, baskets, and sealing components regularly.

Monitor differential pressure during operation.

For applications with special pressure, temperature, or material requirements, customized bag filter housing designs can provide better performance than standard solutions.

Learn more about bag filter housing maintenance checklist.

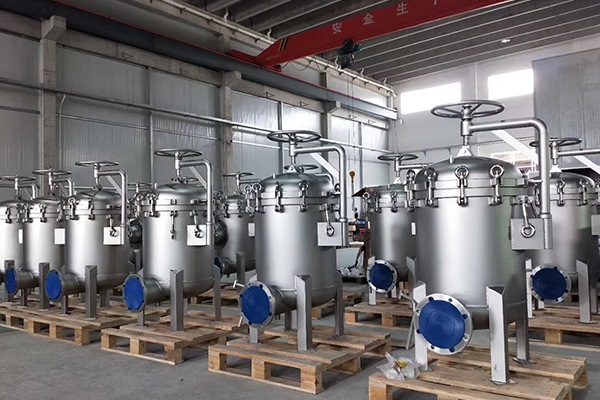

Customized Bag Filter Housing Solutions

Different industries require different filtration conditions. Chemical processing, water treatment, food and beverage, and manufacturing applications may require customized materials, connection designs, and flow capacities.

YuanLv Filter provides customized bag filter housing solutions based on specific operating requirements, including structural design, material selection, and fabrication needs.

A properly designed filtration system helps improve reliability and reduce unnecessary maintenance.

FAQ

1. Why does my bag filter housing have high pressure drop?

High pressure drop is usually caused by clogged filter bags, incorrect micron ratings, insufficient filtration area, or high contaminant loading.

2. Why is my bag filter housing leaking?

Common causes include damaged O-rings, incorrect filter bag installation, or poor sealing between the filter bag and housing components.

3. Why do filter bags fail too quickly?

Premature failure may result from excessive pressure, damaged baskets, sharp internal edges, or unsuitable filter materials.
