Wedge Wire Slot Nozzle Strainer for Ion Exchange Columns

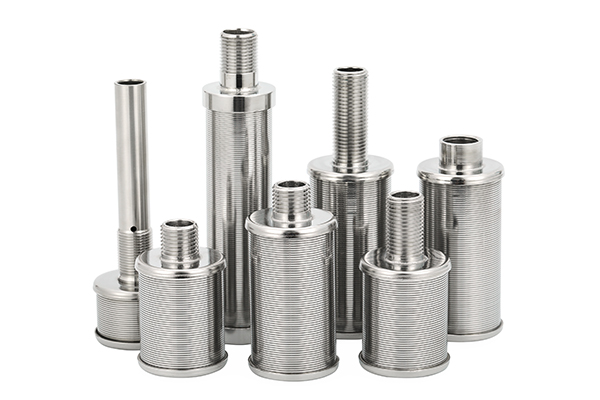

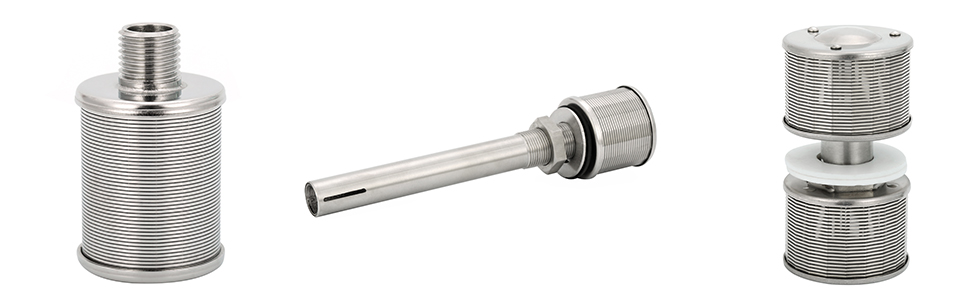

A wedge wire slot nozzle strainer is a stainless steel filtration component featuring V-shaped (wedge) wires welded to support rods, forming finely tuned slots that allow water to pass while retaining ion exchange resin or media.

Made commonly from SS304 or SS316L, these slot filter nozzles offer mechanical strength and corrosion resistance under challenging conditions.

Core Functions in Ion Exchange Systems

• Resin Retention & Flow Distribution

Installed at the bottom or middle plate of an ion exchange vessel, these slot nozzles ensure even resin distribution, uniform backwashing, and effective flow control—vital to prevent channeling. They are distributed across vessels via hub and header systems or nozzle configurations.

• Resin Trapping

At the system outlet, resin trap strainers serve as a safety net, capturing escaped resin beads to protect downstream components, such as pumps or membranes.

Key Advantages of Wedge Wire Nozzle Strainers

• High Flow Efficiency: Large open area (sometimes up to 60%) ensures low pressure drop and maximized flow.

• Non-Clogging: The wedge-shaped slots resist clogging and simplify backwashing.

• Mechanical Robustness: Withstands high pressure and prevents deformation or media passage.

• Corrosion Resistance: Suitable for harsh chemical environments, including acid or caustic media.

• Customizability: Slot size, thread type, assembly length, and material (from stainless steels to exotic alloys) can be tailored to customer needs.

Applications Across Industries

Wedge wire nozzle strainers are employed widely across:

✔ Demineralization systems

✔ Water softeners

✔ Activated carbon and sand filters

✔ Wastewater and desalination plants

✔ Pharmaceutical, food & beverage, and boiler feed systems

YuanLv offers nozzle solutions, including hub & header laterals, resin traps, and filter beds that are tailored to filtration tasks, backwashing, and underdrain support.

Design & Manufacturing Considerations

When specifying wedge wire nozzles for ion exchange systems, key criteria include:

• Slot Size Accuracy: Maintain tight tolerances (e.g., ± 0.001 in via CNC) to ensure effective resin retention.

• Flow Distribution: Aim for configurations (hub laterals, drop-leg nozzles) that prevent channeling and ensure uniform flow.

• Material Selection: Pick alloys suited to chemical exposure and pressure requirements.

• Structural Support: Ensure support rods and construction prevent deformation under flow or pressure.

• Ease of Installation & Maintenance: Threaded connections, flanges, or custom bolt patterns facilitate installation and future servicing.

Wedge wire slot nozzle strainers form the backbone of reliable ion exchange systems, combining precision filtration, mechanical strength, corrosion resistance, and efficient flow control.
