Wastewater treatment plants rely on reliable and durable screening equipment to ensure efficient separation of solids from water. Among the different technologies available, wedge wire screens have become a standard choice due to their strength, precision, and resistance to clogging.
However, to maximize performance, engineers and procurement managers must carefully consider two key design factors: material selection and slot sizing. This guide provides a practical overview to help decision-makers specify the right screen for their wastewater application.

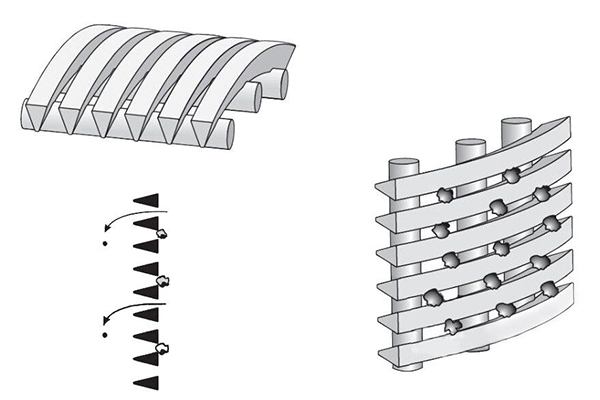

Wedge wire screens are made by welding V-shaped wires onto support rods, creating a continuous slot with excellent structural integrity. This design delivers several advantages in wastewater operations:
• High open area for greater flow capacity.
• Non-clogging surface due to the V-shaped wire profile.
• Durability under high loads and abrasive conditions.
• Customizable slot sizes to target different particle sizes.
• Applications range from inlet works and primary treatment to sludge thickening, industrial effluent screening, and membrane protection.
The choice of material directly influences corrosion resistance, mechanical strength, and lifecycle cost. The most common materials are stainless steels, but alternatives exist for highly aggressive environments.
| Material | Advantages | Best suited for | Limitations |
| Stainless Steel 304 | Cost-effective, good corrosion resistance in mild environments. | Municipal wastewater with low chloride content. | May suffer pitting or stress corrosion cracking in saline or chemically aggressive water. |
| Stainless Steel 316L | Higher resistance to chlorides and acids due to added molybdenum. | Industrial effluents, coastal installations, or plants using chemical treatment. | More expensive than SS304, but longer service life often offsets the cost. |
| Duplex Stainless Steel (e.g., 2205) | Exceptional strength and corrosion resistance; handles higher loads. | Heavy-duty wastewater applications, high-pressure systems, abrasive slurries. | Higher upfront cost, but long-term savings through extended service life. |
| Special Alloys (Hastelloy, Titanium) | Extreme resistance to corrosion, particularly against strong acids or seawater. | Specialized applications such as chemical wastewater or offshore plants. | Very high cost, generally reserved for niche projects. |
Pro tip: For most municipal plants, 316L stainless steel strikes the best balance between cost and durability.

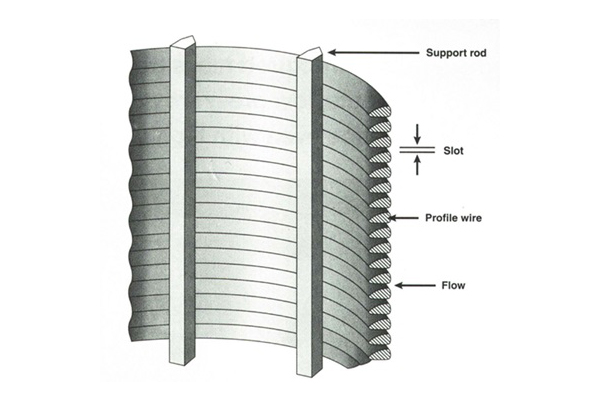

Slot size is the defining feature of a wedge wire screen. It determines how much water passes through and what particle sizes are retained.
Key Considerations:
• Nature of solids: Fibrous material, sand, and biological solids each behave differently.
• Downstream equipment: Protecting pumps, membranes, or biological processes requires different retention levels.
• Hydraulic loading: Higher flows require larger slots to prevent excessive head loss.
Typical Slot Sizes in Wastewater Applications:
• 0.25 - 0.5 mm: Fine screening for membrane protection and tertiary treatment.
• 0.5 - 1.0 mm: General municipal wastewater solids removal.
• 1.0 - 3.0 mm: Coarse screening, sludge thickening, and preliminary treatment.
Selecting the correct slot size prevents both clogging (if too fine) and ineffective screening (if too coarse). Pilot testing or consulting with experienced manufacturers is recommended when dealing with variable effluent streams.
Matching Material and Slot Size to Application
To ensure effective wastewater treatment performance, both material and slot sizing must align with the operating environment:
• Municipal wastewater, low chloride: SS304 with 0.5-1.0 mm slots.
• Municipal wastewater, coastal or industrial effluent: SS316L with 0.25-0.75 mm slots.
• Sludge thickening or high solids: Duplex stainless steel with 1.5-3.0 mm slots.
• Aggressive chemical effluent: Titanium or Hastelloy with 0.25-1.0 mm slots.
This structured approach minimizes maintenance, extends screen lifespan, and ensures consistent plant operation.
Even the best-designed wedge wire screen requires proper handling to maintain efficiency:
Backwashing or spray cleaning to prevent biofouling.
Routine inspection for signs of wear or corrosion.
Avoid chemical cleaners that may degrade the welds or alloy surface.
Use OEM replacement parts to ensure compatibility and maintain performance.
Selecting the correct material and slot size for wedge wire screens is a critical decision in wastewater treatment design. Stainless steel 316L remains the most versatile choice for most municipal applications, while duplex and special alloys serve demanding industrial environments. Proper slot sizing ensures the right balance between throughput and solid removal efficiency.
By aligning these specifications with operational needs, wastewater treatment plants can achieve a longer service life, lower maintenance costs, and more reliable treatment performance.
