Sand Filter Nozzles: Essential Components for Efficient Water Filtration
Wedge wire sand filter nozzles for Gravity Sand Filters, Activated Carbon Vessels, Large Ion Exchange Columns, Swimming Pool Filters
Product Details

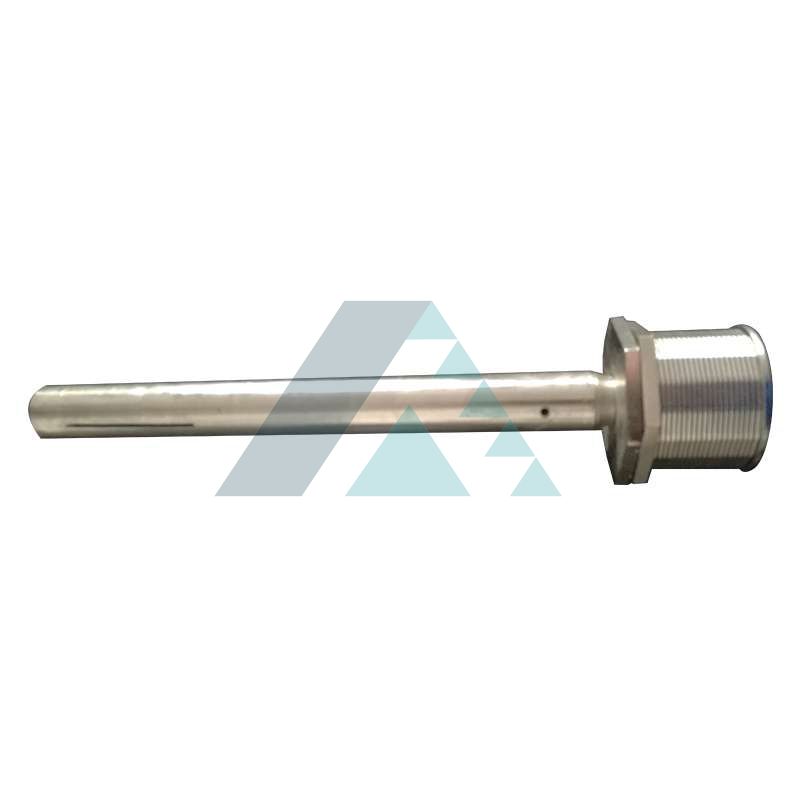

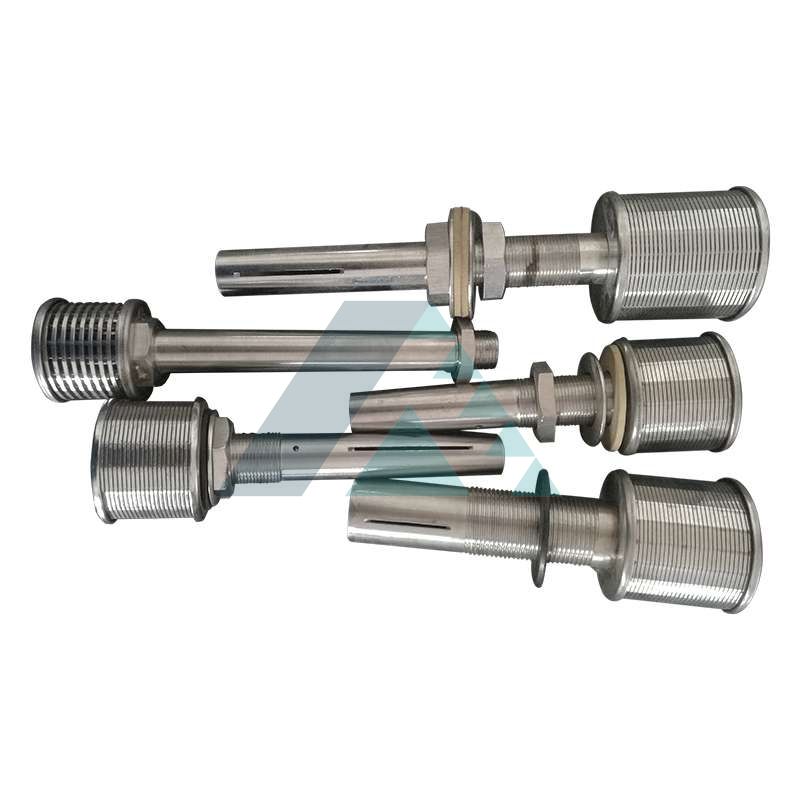

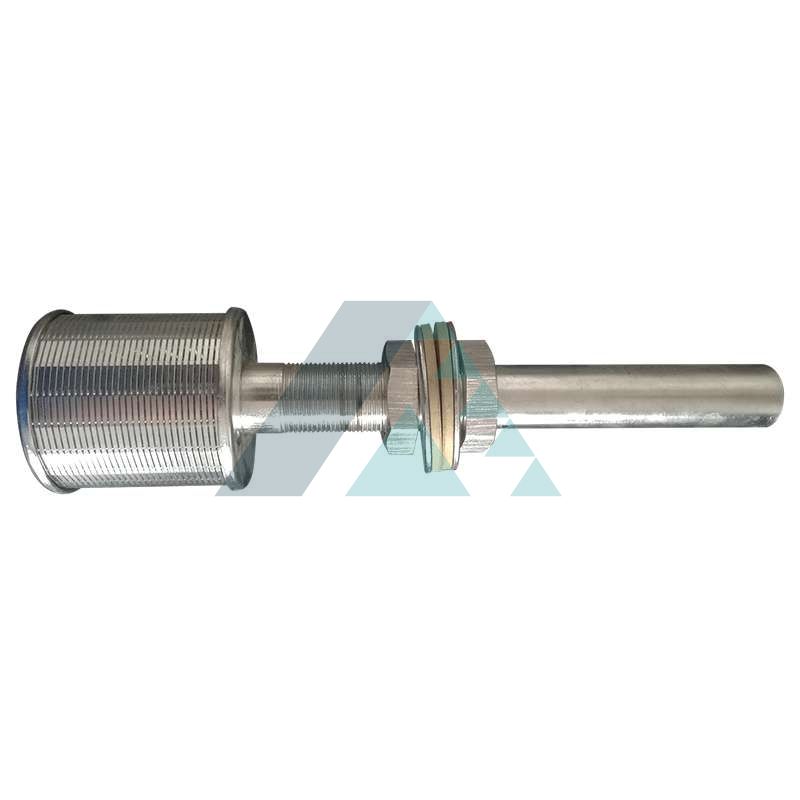

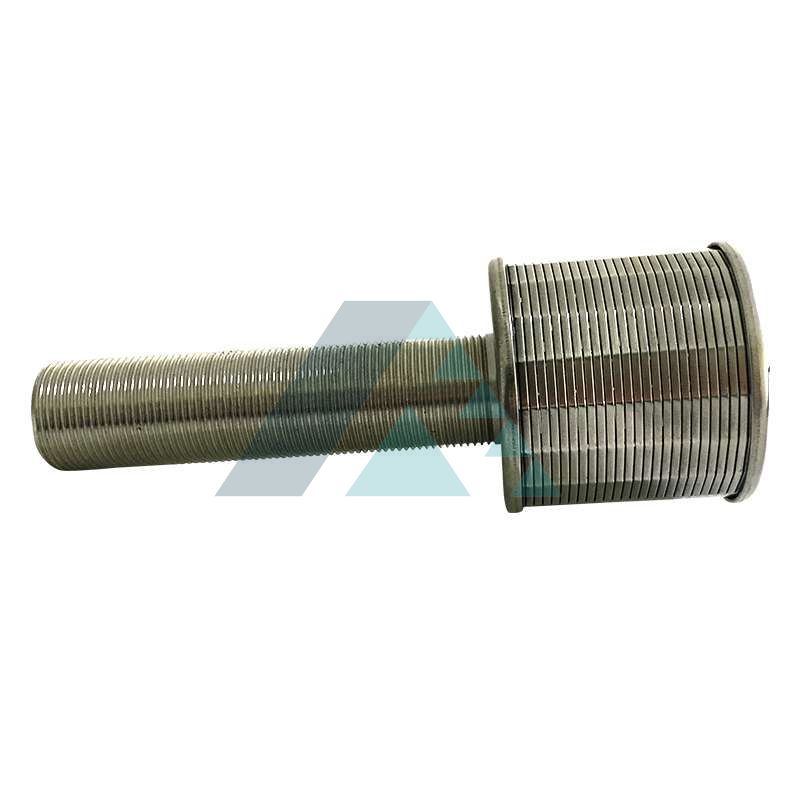

Sand filter nozzles are critical components in various water filtration systems. These nozzles typically comprise two main parts: the filter and the stem. The filter section features slots that prevent the passage of resin, gravel, and other particulates while allowing water to flow through. The efficiency of a sand filter nozzle is determined by the number of slots, their width, and length. The filter nozzle is usually attached to the underdrain bed by threading the stem into pre-drilled holes and securing it with washers and nuts.
Sand filter nozzles are versatile and can be used in a range of filtration systems, including:
--Gravity Sand Filters
--Activated Carbon Vessels
--Large Ion Exchange Columns
--Swimming Pool Filters

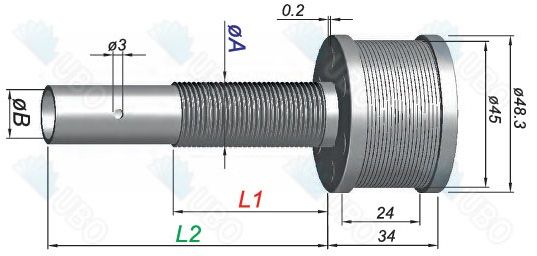

Specifications of wedge wire sand filter nozzle:
| No. | Type | Ton | SlotOpening | Size | 0.2-0.25mm slot opening Area of through-flow mm2(reference) | |||
| D | L1 | L | M | |||||
| 1 | 1-C | 0.5 | 0.2-0.5 | 45 | 45 | 95 | 24 | 500 |
| 2 | 2-B | 1 | 0.2-0.5 | 53 | 45 | 100 | 24 | 570 |
| 3 | 2-C | 1.5 | 0.2-0.5 | 53 | 50 | 110 | 32 | 700 |
| 4 | 3-B | 2 | 0.2-0.5 | 57 | 45 | 110 | 32 | 600 |
| 5 | 4-B | 3 | 0.2-0.5 | 70 | 55 | 120 | 32 | 1000 |
Yuanlv offers a comprehensive selection of sand, media, and gravity filter nozzles suitable for various applications. Our products are utilized in Water Treatment Plants (WTP) for producing drinking water, sewage treatment Plants (STP) for treating urban and industrial wastewater, ion exchange filters, resin traps, and swimming pool filters.
At Yuanlv, we understand the importance of efficient filtration systems. Our sand filter nozzles are designed to provide:
Optimal filter performance
Reduced maintenance costs
Increased system reliability
Improved water quality
With our expertise in designing and manufacturing filter nozzles, we can replace any OEM design on the market, supplying a direct replacement or redesigning the nozzle to ensure optimum filter performance.
