A sieve bend screen is the curved wedge wire screening panel used for gravity-driven solid–liquid separation, while a hydro sieve screen usually refers to a complete screening unit that incorporates a sieve bend panel inside a housing or frame.
In simple terms, the sieve bend is the screening component, and the hydro sieve is the integrated equipment built around it. Although the two terms are sometimes used interchangeably, understanding their differences helps engineers choose the right screening solution for wastewater and industrial applications.
| Term | Definition |
|---|---|
| Sieve Bend Screen | A curved wedge wire screen panel used for gravity-driven separation. |
| Hydro Sieve Screen | A complete screening unit that integrates a sieve bend panel within a frame or housing. |
A sieve bend screen is the curved wedge wire screening surface.
A hydro sieve screen is the complete equipment unit built around that screen.
Both use gravity flow and curved wedge wire slots for efficient solid–liquid separation.
In many wastewater systems, the hydro sieve uses a sieve bend screen as its core filtration element.

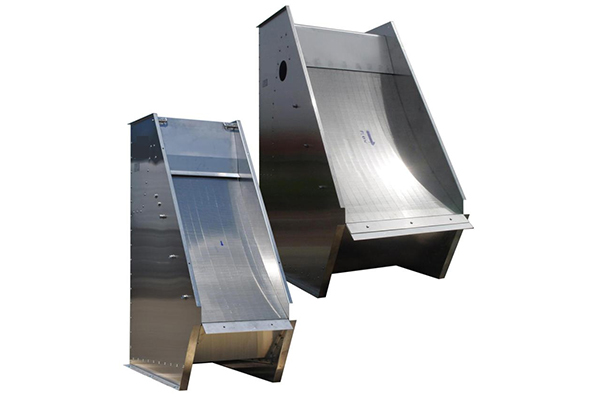

A hydro sieve screen is a static screening device used for continuous solid–liquid separation, particularly in wastewater treatment plants. It typically consists of a curved wedge wire panel mounted inside a frame that distributes incoming flow across the screen surface.
Wastewater flows over the curved screen, allowing liquid to pass through the slots while solids remain on the surface and move downward for discharge.
Typical Features
• Curved stainless steel wedge wire screen
• Gravity-fed operation
• No moving parts or motors
• Continuous solids removal
Hydro sieve screens are commonly installed as pre-treatment equipment in municipal and industrial wastewater systems.

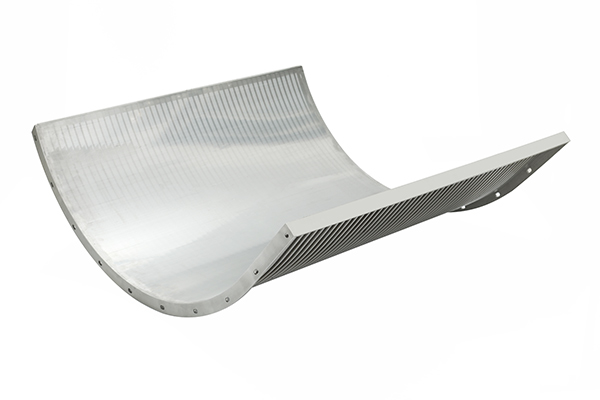

A sieve bend screen refers specifically to the curved wedge wire screen panel used for gravity separation. The panel is manufactured from wedge-shaped profile wires welded onto support rods to create precise slot openings.
Unlike hydro sieve screens, sieve bends are usually individual components installed within larger processing systems.
They are widely used in:
• Mining and coal processing
• Food and beverage processing
• Pulp and paper production
• Industrial filtration systems
• Wastewater treatment equipment
Both hydro sieve and sieve bend screens use the same gravity-driven separation principle.
Work principle:
• Wastewater or slurry enters the screen inlet.
• Flow spreads across the curved wedge wire surface.
• Liquid passes through the slot openings.
• Solids remain on the surface and slide downward due to gravity.
The wedge wire slots are designed with a V-shaped profile that widens inward, which helps reduce clogging and maintain consistent filtration performance.
| Feature | Hydro Sieve Screen | Sieve Bend Screen |
|---|---|---|
| Definition | Complete screening unit | Curved screen panel |
| Structure | Housing, distributor, screen | Screen panel only |
| Primary Use | Wastewater treatment | Mining, pulp & paper, filtration |
| Operation | Gravity-fed | Gravity-fed |
In practice, hydro sieve screens often incorporate sieve bend screens as their main filtration surface.
The curved design improves separation efficiency in several ways:
• Better flow distribution across the screen
• Increased effective screening area
• Reduced clogging or screen blinding
• Improved movement of solids along the surface
These advantages make curved wedge wire screens effective for continuous gravity-fed filtration.
Municipal wastewater treatment plants
Food processing wastewater
Industrial effluent treatment
Agricultural waste separation
Mining and mineral processing
Coal preparation plants
Pulp and paper manufacturing
Industrial slurry filtration
1. Are hydro sieve screens and sieve bend screens the same?
No. A sieve bend screen refers to the curved wedge wire panel, while a hydro sieve screen is a complete unit that includes that panel.
2. Why are these screens curved?
The curved surface improves flow distribution and helps move solids along the screen, reducing clogging.
3. Do hydro sieve screens require power?
Most hydro sieve screens operate entirely under gravity and do not require motors.
Hydro sieve screens and sieve bend screens use the same curved wedge wire technology but serve different roles. The sieve bend is the screening component, while the hydro sieve is the integrated screening system designed for continuous operation.
