Selecting the correct filter bag size is an important step when configuring an industrial bag filter housing system. A suitable filter bag should match the housing design, support basket, filtration requirements, and operating conditions to ensure reliable sealing and stable filtration performance.
Filter bag size selection is not only about choosing a larger or smaller bag. The correct choice depends on several factors, including flow rate, micron rating, filter media, and compatibility with the existing bag filter housing. In-depth Reading: Industrial bag filter housing guide.
The filter bag is the main filtration component inside a bag filter housing. Even when the housing is correctly selected, an unsuitable filter bag size may affect filtration performance.
Common problems caused by incorrect filter bag selection include:
• Poor sealing between the bag and housing
• Filter bypass caused by improper installation
• Reduced filtration efficiency
• More frequent filter bag replacement
Matching the filter bag size with the housing design helps maintain stable operation and simplifies maintenance.

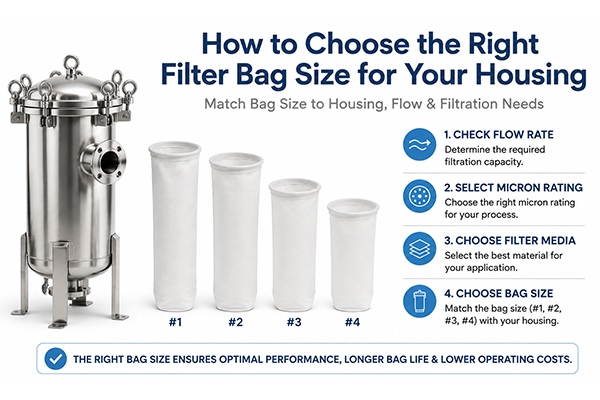

Industrial liquid bag filtration commonly uses standardized filter bag numbering systems, including:
• #1 Filter Bag
• #2 Filter Bag
• #3 Filter Bag
• #4 Filter Bag
These filter bag sizes are widely used with industrial bag filter housings and are designed for different filtration capacity requirements.
The correct bag size depends on the matching housing basket, sealing structure, flow requirements, and application conditions.
For example, higher flow applications may require larger filtration capacity or multi-bag housing configurations, while smaller filtration systems may use compact bag filter designs.
The filter bag number alone should not be the only selection factor. Always confirm compatibility between the filter bag and the housing before replacement.
Before selecting a filter bag size, confirm the specifications of your existing housing.
Important factors include:
Housing Model and Basket Design
The filter bag must fit correctly inside the support basket.
Check:
• Housing model
• Basket dimensions
• Bag mounting style
• Sealing design
A properly matched filter bag should sit securely inside the basket and create reliable sealing during operation.
Filter Bag Ring and Installation Style
Different filter bags may use different ring designs depending on the housing structure.
The correct ring style helps prevent:
• Liquid bypass
• Incorrect positioning
• Sealing problems
Flow requirements directly affect filter bag size selection.
Applications with higher flow rates or higher contaminant loading may require:
• Larger filter bag capacity
• Multiple bag filter housings
• Longer service intervals
However, selecting the largest available filter bag is not always the best solution.
The filter bag size should match the actual filtration demand, operating conditions, and housing configuration.
For applications requiring higher capacity, users can also compare different housing configurations such as single bag and multi bag filter housings.
You can see the detail: selecting the right bag filter housing
Filter bag size is only one part of the selection process.
The filter bag should also match:
Micron Rating
The micron rating determines the size of particles removed during filtration.
A tighter micron rating may improve particle removal but can also increase pressure drop and require more frequent replacement.
Learn more about filter bag micron rating selection.
Filter Media Material
The filter bag material should be compatible with the process liquid, temperature, and operating environment.
Common considerations include:
• Chemical compatibility
• Temperature resistance
• Contaminant characteristics
• Choosing Only Based on Bag Number
Selecting #1, #2, #3, or #4 bags without checking the housing design may result in poor fit or sealing issues.
• Ignoring Operating Conditions
Flow rate, contamination level, and filtration requirements all influence filter bag performance.
• Replacing Bags Without Checking the Housing Condition
A damaged basket, worn gasket, or incorrect housing configuration may also cause filtration problems.
As a bag filter housing manufacturer, Johnson Wedge Wire understands that filter performance depends on the complete filtration system, not only the housing vessel.
Proper compatibility between:
filter housing
support basket
filter bag
sealing components
helps achieve reliable filtration performance and easier maintenance.
YuanLv Filter provides customized bag filter housing solutions for different industrial applications, including requirements involving different filter bag sizes, materials, and operating conditions.
1. What are the common filter bag sizes for industrial filtration?
Common industrial filter bag sizes include #1, #2, #3, and #4. The correct choice depends on housing compatibility and filtration requirements.
2. Are #1 and #2 filter bags interchangeable?
Not always. Filter bag compatibility depends on housing design, basket size, and sealing structure.
3. How do I know which filter bag size fits my housing?
Check the existing filter bag specification, housing model, basket design, and operating requirements.
4. Does a larger filter bag always provide better filtration?
No. The correct filter bag size depends on flow requirements, contaminant loading, micron rating, and housing design.
Choosing the right filter bag size requires more than selecting a standard bag number. A reliable filtration system depends on proper matching between the filter bag and bag filter housing.
By considering housing compatibility, flow requirements, micron rating, and operating conditions, users can select a filter bag that provides stable performance and efficient filtration.
