V-wire slot geometry is one of the most important engineering factors affecting flow efficiency in filtration, screening, and water treatment systems. The shape, angle, and precision of each slot directly influence hydraulic performance, clog resistance, energy consumption, and long-term operating costs.

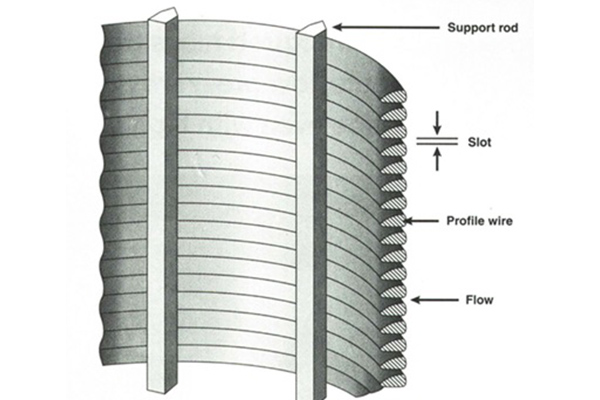

V-wire (also known as wedge wire) features a narrow external opening and a wider internal opening. This tapered structure creates a natural flow path that directs solids away from the slot, rather than trapping them.
Key performance benefits:
| Performance Factor | V-Wire Screens | Conventional Mesh / Perforated Plate |
|---|---|---|
| Open Area | 25–60% | 10–30% |
| Clogging Rate | Up to 40% lower | Higher due to flat surfaces |
| Flow Efficiency | 20–35% higher under equal pressure | Lower |
| Cleaning Frequency | Reduced by 30–50% | Frequent |
| Energy Use | Lower because of smooth hydraulic profile | Higher due to resistance |
These measurable improvements explain why industries with high-solid or continuous-flow conditions, municipal wastewater, food processing, petrochemicals, pulp and paper, favor V-wire slot designs.
1. Slot Shape: The Taper Matters
A slot that is wider internally creates a self-relieving effect: solids enter only at the narrowest point and lose contact as they pass through, reducing blockage.
2. Slot Width Precision
Modern V-wire screens maintain tolerances as tight as ±0.02 mm.
More consistent gaps result in:
• Stable flow rate
• Predictable particle cut-off size
• Better protection of pumps and downstream filters
3. Hydraulic Profile
The smooth, continuous surface of V-wire reduces turbulence. Testing in water treatment plants shows:
• Up to 28% lower flow friction
• Higher throughput under identical pumping pressure

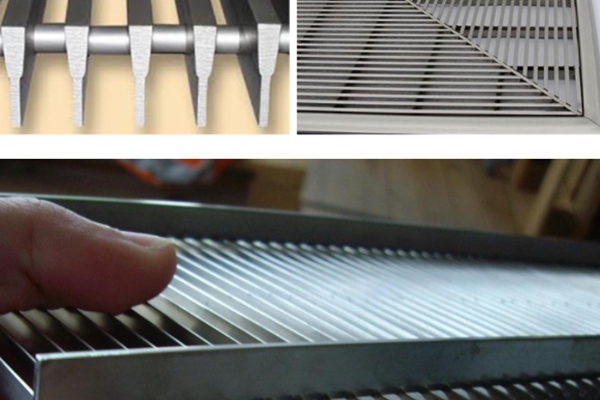

4. Surface Smoothness
The triangular wire profile provides:
• No sharp edges to trap fibers
• Minimal turbulence zones
• Longer lifespan (typically 8–15 years, compared to 2–5 years for mesh)
• Wastewater Treatment
Dense biological solids adhere less to V-wire than mesh, reducing manual cleaning and improving reliability during peak loads.
• Industrial Filtration
Processes involving viscous liquids benefit from faster flow and fewer shutdowns for cleaning.
Precise slot spacing protects pumps by ensuring uniform particle exclusion.
V-wire slot geometry is more than a design detail; it is a measurable performance advantage. The tapered profile, smooth surface, and precision spacing collectively reduce clogging, enhance hydraulic efficiency, and lower operational costs. For facilities aiming to improve reliability and reduce downtime, V-wire remains a proven, data-backed engineering solution.
1. What makes V-wire slot geometry different from standard wire mesh?
V-wire screens use a tapered slot that is narrower on the surface and wider inside. This geometry reduces contact between solids and the wire, allowing particles to move away from the slot instead of getting stuck, something flat wire mesh cannot achieve.
2. How does slot width affect filtration performance?
Even small differences in slot width influence hydraulic resistance and particle cut-off size. A variation as small as ±0.02 mm can change flow rate predictability, pump load, and screening accuracy. High-precision V-wire designs maintain consistent gaps to ensure stable performance.
3. Are V-wire screens more energy-efficient?
Yes. Because the slots guide fluid smoothly, pumps require less pressure to maintain target flow. Many treatment plants report 10–30% reductions in energy use after upgrading from mesh or perforated plate to V-wire designs.
4. Why do V-wire screens resist clogging better?
The angled profile creates a self-cleaning flow path. Fibers, sludge, and fine solids have fewer contact points, reducing buildup during continuous operation and lowering manual cleaning frequency.
5. Which industries benefit most from optimized slot geometry?
Industries that deal with high-solids or continuous flow conditions see the largest advantages:
Municipal wastewater treatment
Food and beverage processing
Petrochemical refining
Pulp and paper screening
Mining and mineral separation
6. How long do V-wire screens typically last?
Service life ranges from 8 to 15 years, depending on material grade (such as SS304 or SS316L), flow conditions, and cleaning practices. The smooth profile reduces abrasion, extending lifespan compared to woven mesh.
7. Can V-wire slot geometry be customized for special applications?
Yes. Slot widths, wire profiles, materials, and open-area percentages can be customized to meet industry-specific requirements, such as bio-solids separation, abrasive slurries, or high-temperature industrial processes.
8. What is the ideal slot size for wastewater applications?
Typical slot openings range from 0.25 mm to 1.0 mm, depending on influent solids load and downstream equipment protection requirements. Smaller slots are used for fine screening, while larger openings support higher flow capacity.
