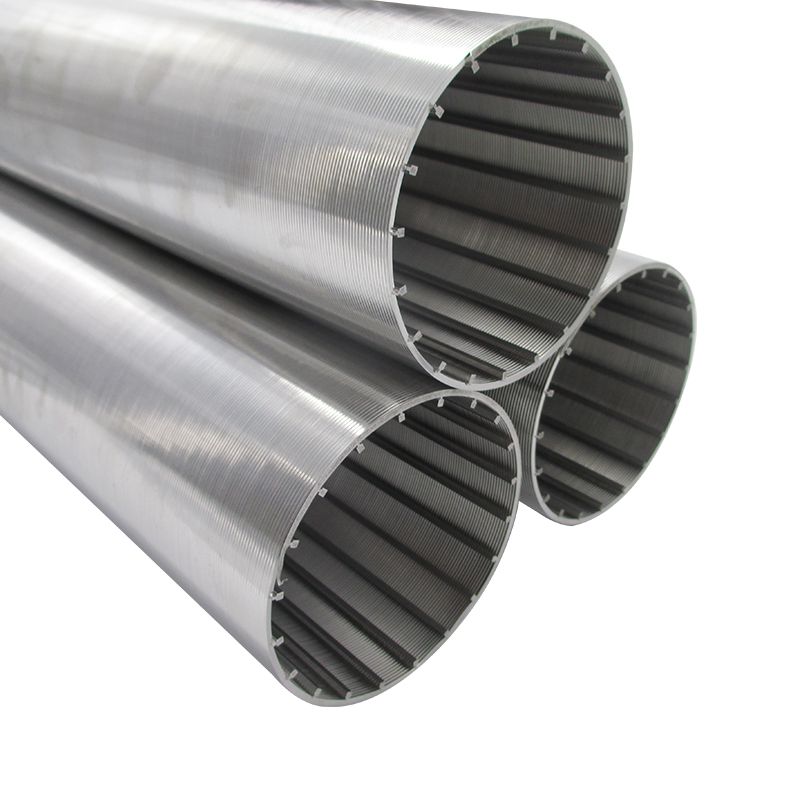

With a very strong, smooth welding surface and resistant to clogging, wedge wire candle tube filter elements are ideal for mechanical filtration and separation of liquids and solids.
Product Details

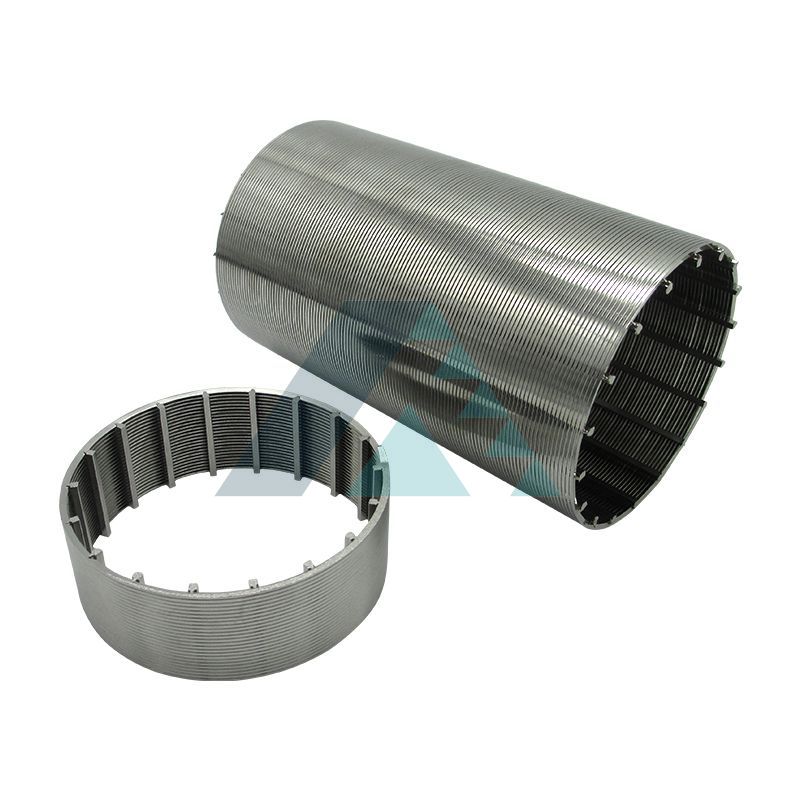

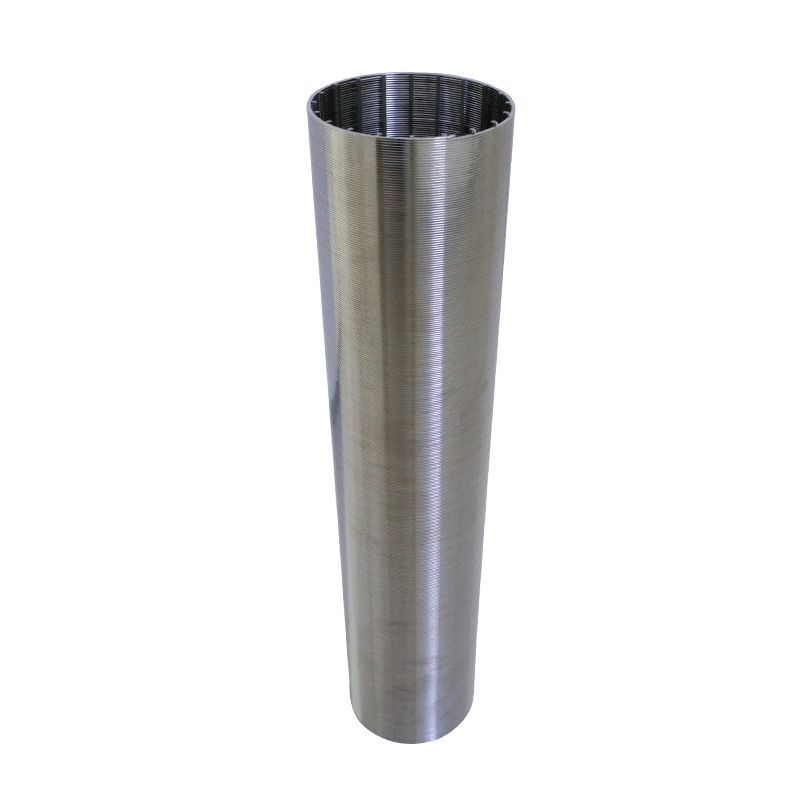

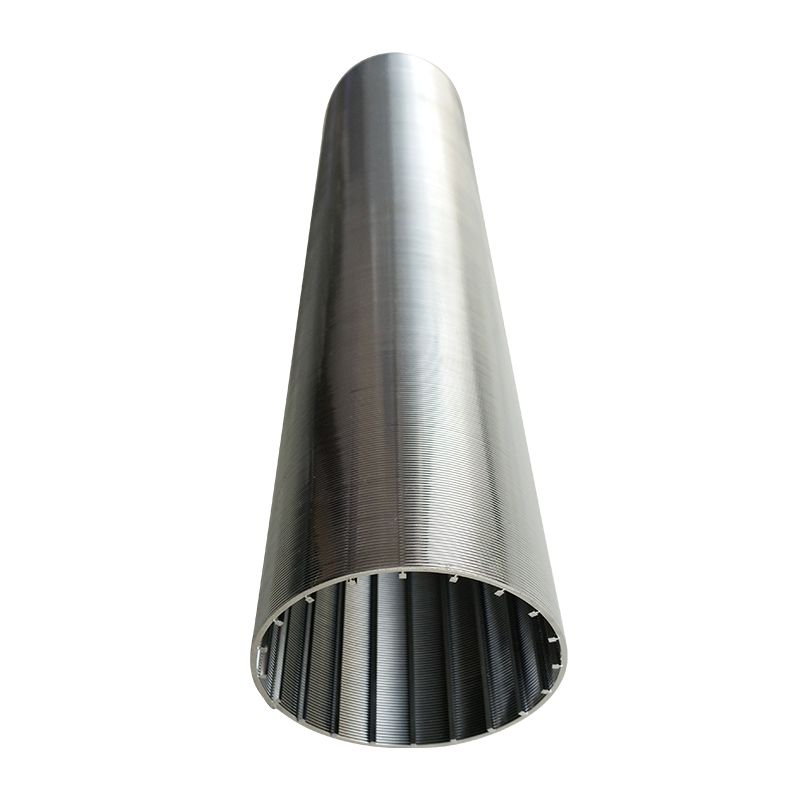

Wedge wire screen candle filter tubes are commonly used as screening components in a variety of industries to provide screening and filtration of solids or liquids.

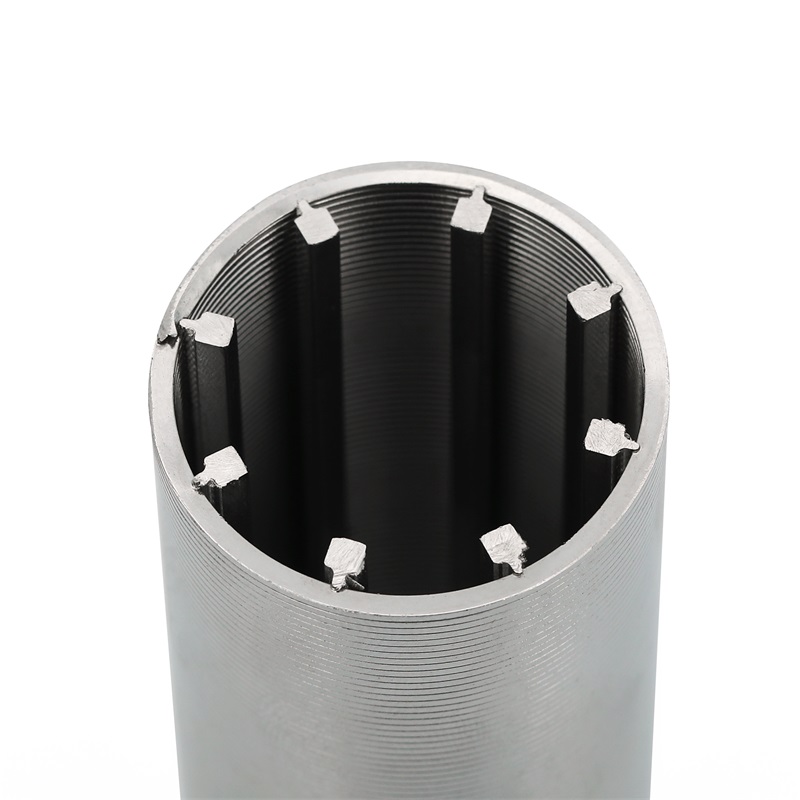

Wedge wire screen tubes are constructed of V-shaped wires and support rods. These screen tubes are used in a variety of applications, including water treatment,the oil and gas industry, food and beverage production, mining, and environmental protection.
Our dedicated engineering team offers a comprehensive customization service for wedge wire screen candle filter elements, supporting customized tube diameters, slot spacing, and ports to suit different applications.
Our products are manufactured to industry standards, and your screen tube filter needs will be met.
Material | SS304, SS304L, SS316, SS316L, SS321, Duplex, Hastelloy, etc | ||||||
OD Range | 19mm-2000mm | ||||||
ID Range | 13mm-1981mm | ||||||
Length Range | Up to 6000 mm | ||||||
Slot Range | 20 micron to 3000 microns (Tolerance:+-5 micron) | ||||||
Wedge Wire | 0.5x1.5 | 0.75x1.5 | 1x2 | 1.5*2 | 2x3 | 2*4 | 3*5 |
Support Rod | 1.5x2.5 | 1.5x2.5 | 1.5x2.5 | 1.8*2.5 | 2x3 | 2x4 | 3x5 |
End Finishing | Thread fitting, Flange, Closed Plated, Resistance welded closed plate, Metal Ring, etc | ||||||
Note | Customized According To Requirement | ||||||

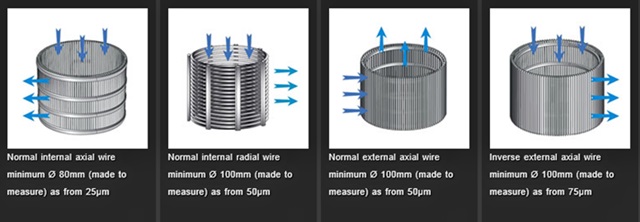

We offer 4 types of wedge wire screen tubes with different material flow directions and filament winding methods. We expect you to find the type of tube that matches your equipment:
FOTI: From outside to inside
FITO: From inside to outside
Radial Slots: Slots oriented along the screen diameter in a parallel fashion
Axial Slots: Slot oriented along the screen length in a parallel fashion
Choose wedge wire screen tubes to provide durable, reliable support for your machinery and equipment.
1. Customization support. Select the matching wedge wire screen tube according to the application scenario and filtration accuracy.
2. Precise filtration performance. State-of-the-art equipment ensures precise slot sizes and high roundness of the screen tube.
3. Various types. Wedge wire screen tubes are available with different edge types and diameters.
4. Versatile. Wedge wire screens can be used in a variety of industries, including water treatment, oil and gas, food and beverage, mining, and more.
5. Quality assurance. Use of strictly sourced corrosion-resistant steel
The wedge wire screen candle filter tubes produced by our factory are widely used in various filtering, screening and stripping with its reasonable structure, high filtering precision and high working efficiency is considered as one of the best filtering elements.
General Industry
Mineral & Aggregate Processing
Water Treatment
Oil & Gas
Mineral & Aggregate Processing
Petrochemical & Refining
