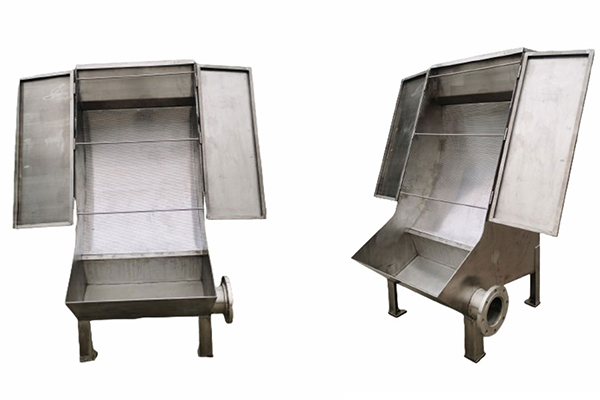

Wastewater treatment relies on robust and efficient screening systems to remove solids before biological or chemical processing. Among the most dependable options available is the Stationary Hydrosieve, also known as a static wastewater screen or sieve bend screen.
Unlike mechanical bar screens or rotary drum filters, the hydrosieve wastewater screen has no moving parts, making it an energy-efficient and low-maintenance option for a wide range of applications.

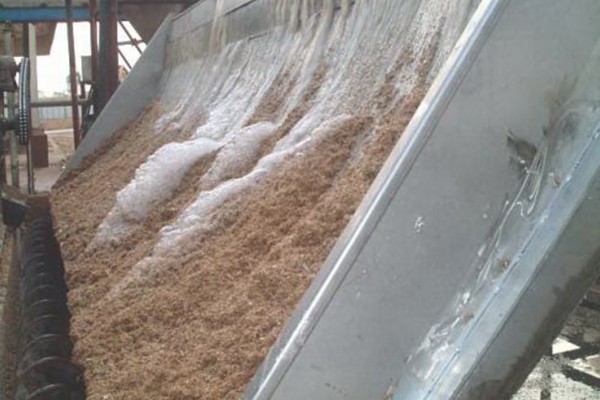

Wastewater flows over a curved parabolic wedge wire panel, allowing liquids to pass through while retaining solids on the screen surface.
Its simple yet effective design has made it a trusted solution for municipal plants, industrial facilities, and food processing wastewater treatment.
YuanLv Stationary Hydrosieve Key Benefits
• Durable Materials - Built with stainless steel wedge wire, resistant to corrosion and wear.
• Non-Clogging Efficiency - The V-shaped wire profile prevents blockage and ensures continuous operation.
• Low Operating Costs - No motors or complex mechanisms; cleaning is straightforward.
• Environmentally Friendly - Operates entirely by gravity, reducing energy consumption.
• Adaptable Design - Available as both coarse wastewater screens and fine screening systems, depending on treatment needs.
• Simple Installation - Compact design, often requiring no moving parts or external power.
• Custom Configurations - Options for industrial wastewater screens tailored to plant specifications.
These features make hydrosieves an excellent first stage in primary wastewater screening before biological or chemical treatment.
Applications Across Industries
The versatility of stationary hydrosieve screens allows them to be used in multiple sectors:
• Municipal Wastewater Treatment: Effective for removing rags, plastics, and organic solids.
• Food & Beverage Processing: Ideal for breweries, dairies, and meat plants where organic matter must be separated.
• Pulp & Paper Mills: Screens out fibrous material and reduces solids loading on downstream systems.
• Industrial Effluents: Common in textiles, mining, and chemical plants for pretreatment.
• Sludge Handling: Used as a sludge screening device to reduce handling costs.
By deploying wastewater treatment screens, facilities improve process reliability and lower maintenance on downstream pumps and clarifiers.
Why Wedge Wire Technology Matters
The heart of the hydrosieve wastewater screen is its wedge wire construction. This technology provides:
• Precision slot openings for consistent separation.
• Self-cleaning capability as solids slide off the parabolic surface.
• Mechanical strength to handle high flow volumes.
• Customizable dimensions for small-scale plants or large municipal installations.
Compared with alternatives such as rotary drum screens, static hydrosieves offer a cost-effective and sustainable choice where simplicity and reliability are top priorities.
A stationary hydrosieve wastewater screen is one of the most efficient and cost-effective solutions for primary wastewater screening. With its stainless steel wedge wire construction, parabolic design, and non-clogging features, it provides long-term reliability in both municipal and industrial settings.
Contact us for a free quote and customization solution!
