Filter Nozzle Strainer

Share:

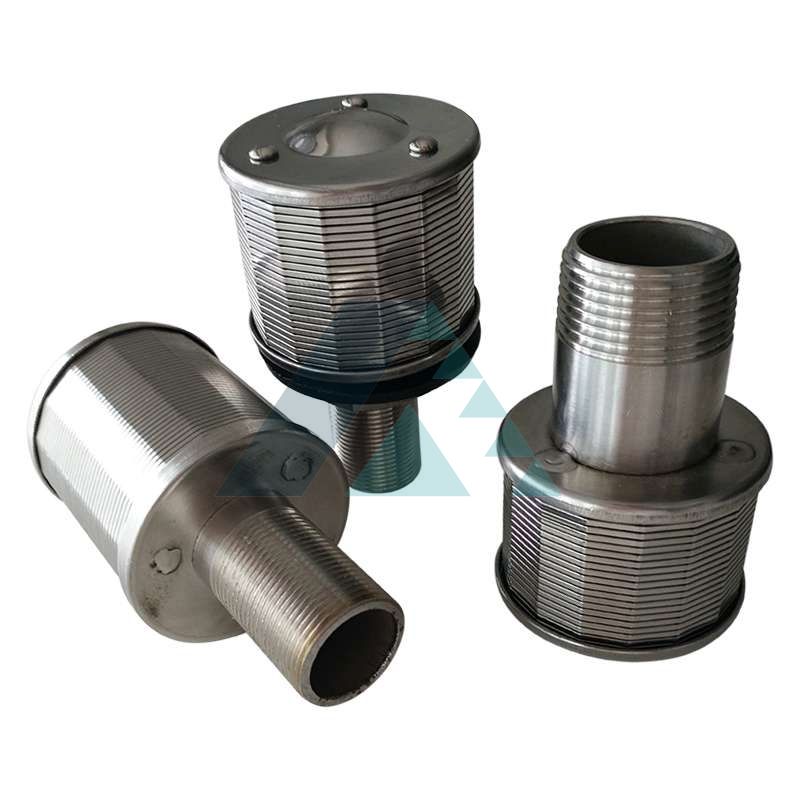

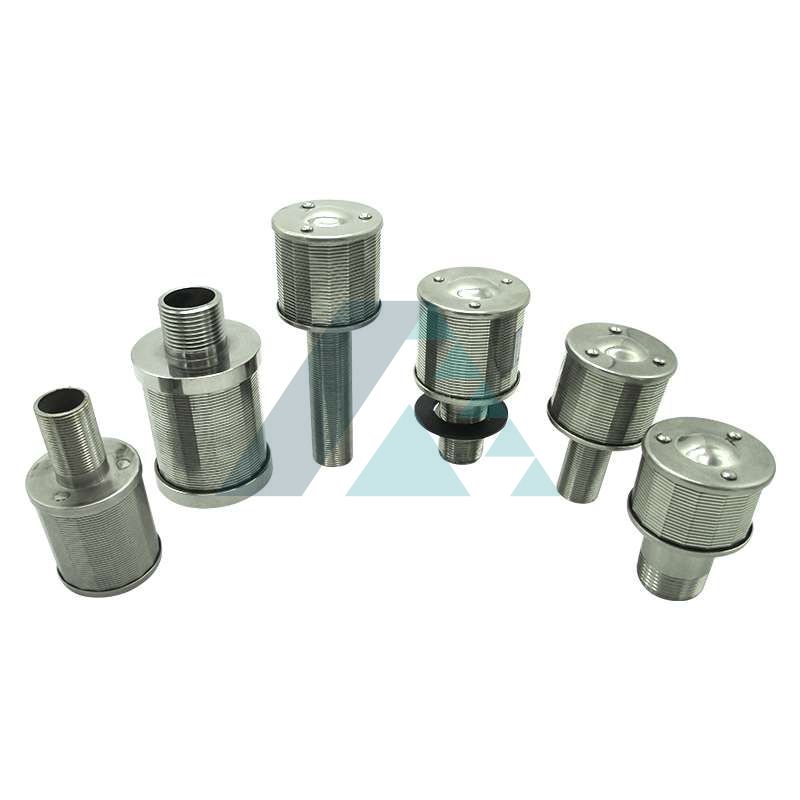

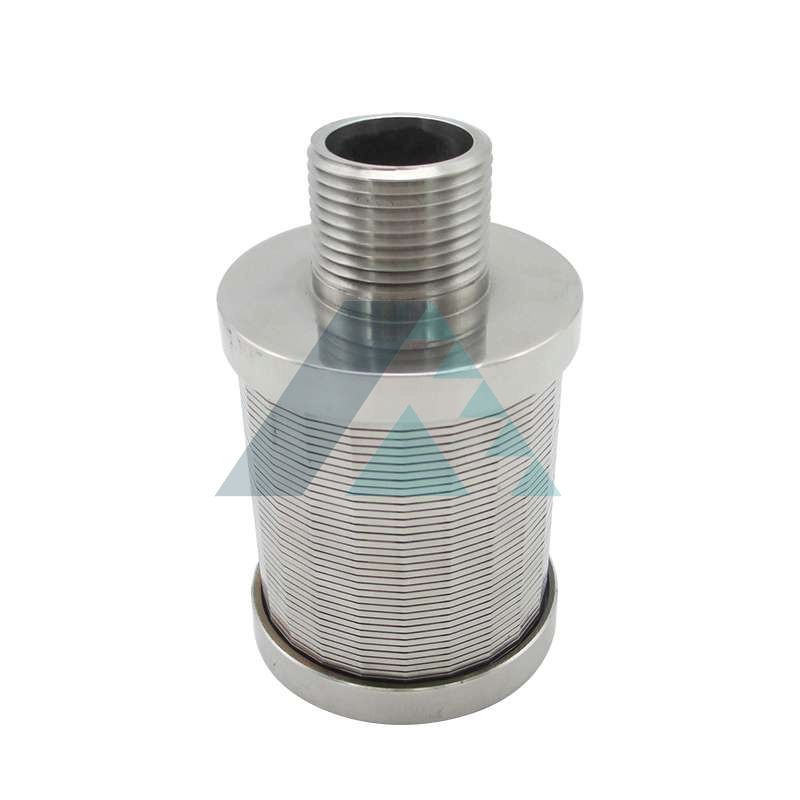

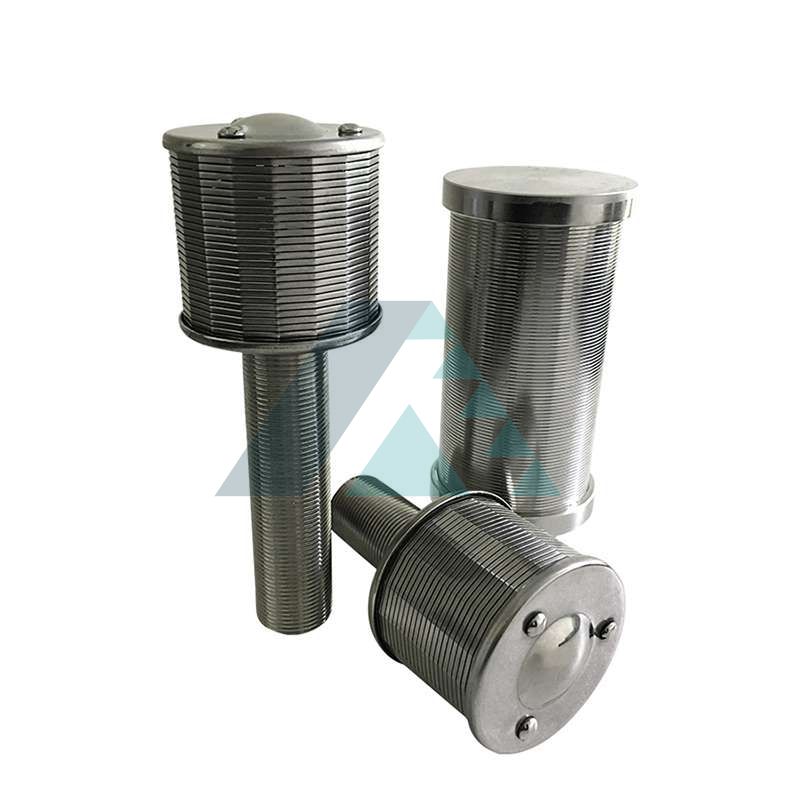

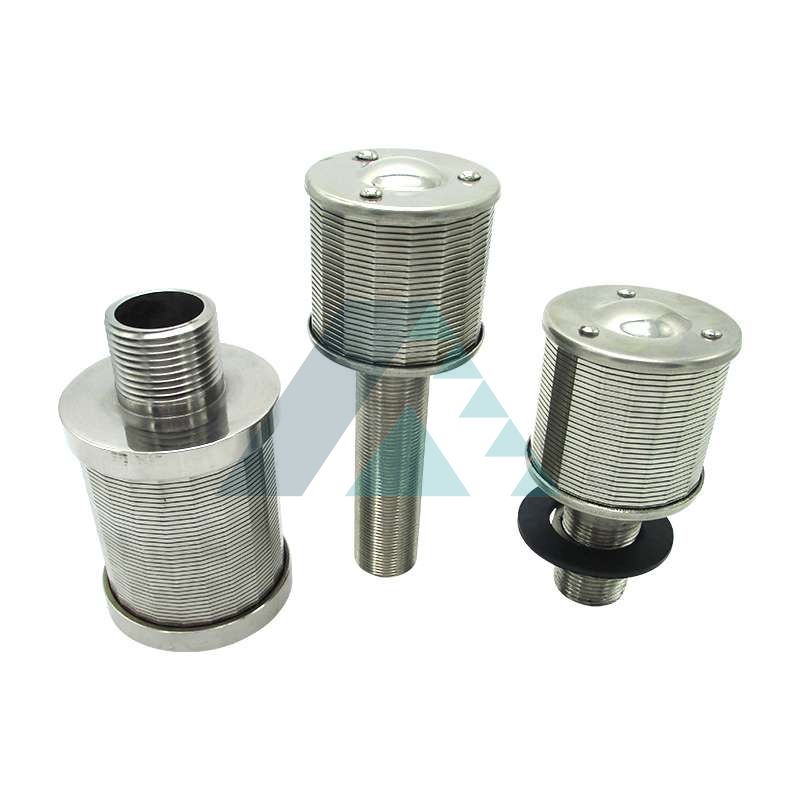

Wedge Wire Filter nozzles are used in liquid/solid or gas/solid separation (sand, catalyst, resins, zeolite etc). The design of each nozzle and the exact quantity will be proposed in order to obtain a perfect distribution or collection of flow. It has the types single, double, long-handle and Single and Double Flow Rating Filter Nozzle.

Product Details

Description of Stainless Steel Filter Nozzle for Water Treatment

Materials: Stainless steel 304, 316L or custom
Application: Water treatment, resin traps, oilfield, mining, food industry, chemical industry, paper making industry, decoration.
Surface treatment: Polishing, chroming.
Product structure: Wedge wire screen, pipe, cap.
Wire diameter: 1.5x2mm, 2x3mm, etc.
Length: 0.5meters or as per your request.
Diameter: 80mm or as per your request.
Slot size: 1mm also achieved upon request.
Characteristics: High filtering accuracy, High strength, and durability.
Certificate: ISO9001: 2000


Type

Slot (mm)

Dimension

Flow Rating (M3/H)



D(mm)

H(MM)

L(MM)

Thread

Fittings


Yuanlv-0.5

0.25

45

45

90/request





M, NPT,

G, PT, Z,

request





SS Gasket, Rubber gasket, Nut, or as your requirement

0.5

Yuanlv-1.0

0.25

53

45

90/request


Same as above

1.0

Yuanlv-1.5

0.25

57

45

90/request


Same as above

1.5

Yuanlv-2.0

0.25

57

55

100/request


Same as above

2.0

Yuanlv-2.5

0.25

70

55

100/request


Same as above

2.5

Yuanlv-3.0

0.25

70

70

120/request


Same as above

3.0







Note

All the above size are the normal size. Customized size is possible.

Yuanlv could help to design according to the application and requirement.

The nozzles customized range as below:

1. Slot range: 0.05-2mm

2. Dimension: Diameter, Screen Height, Length could produce according to actual requirement and application

3. Thread, gasket, nut according to requirement


Stainless Steel Filter Nozzle for Water Treatment Application

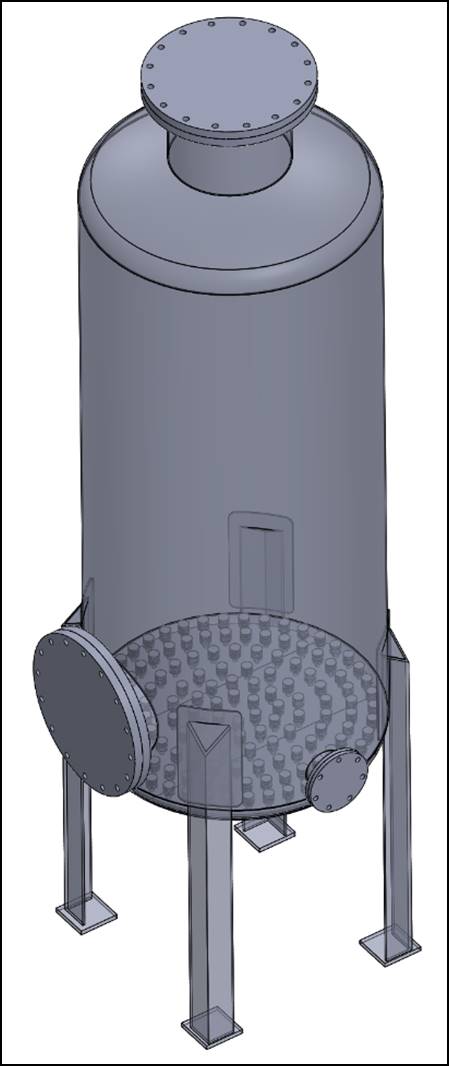

Stainless Steel Filter Nozzle used in water treatment processes namely in 'Ion Exchange' and other numerous media filter systems。This screen system is primarily used as a safety device and is positioned immediately after the outlet nozzle of the vessel/reactor.

Stainless Steel Filter Nozzle for Water Treatment
