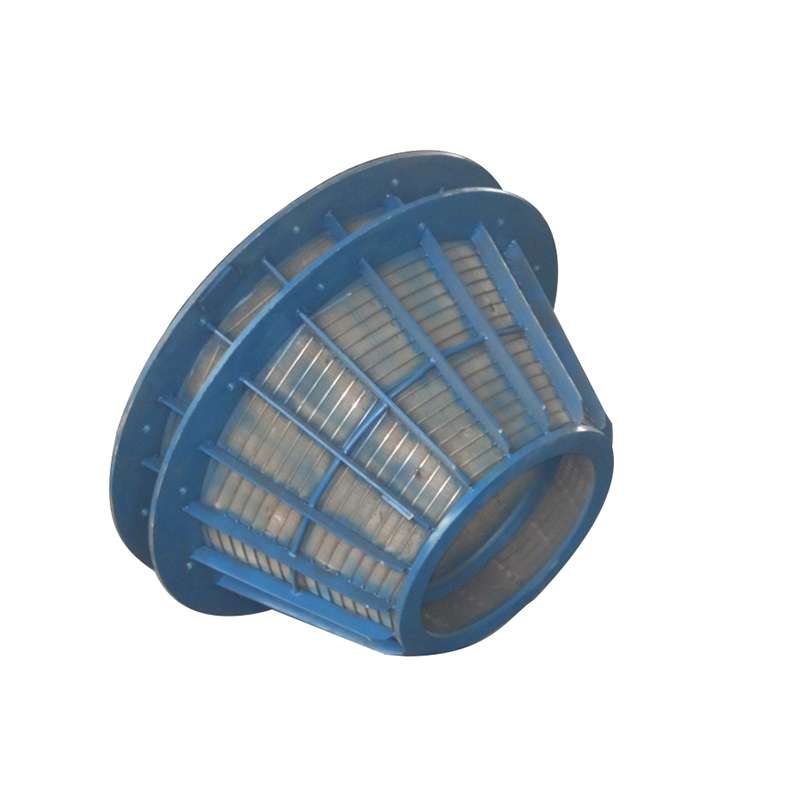

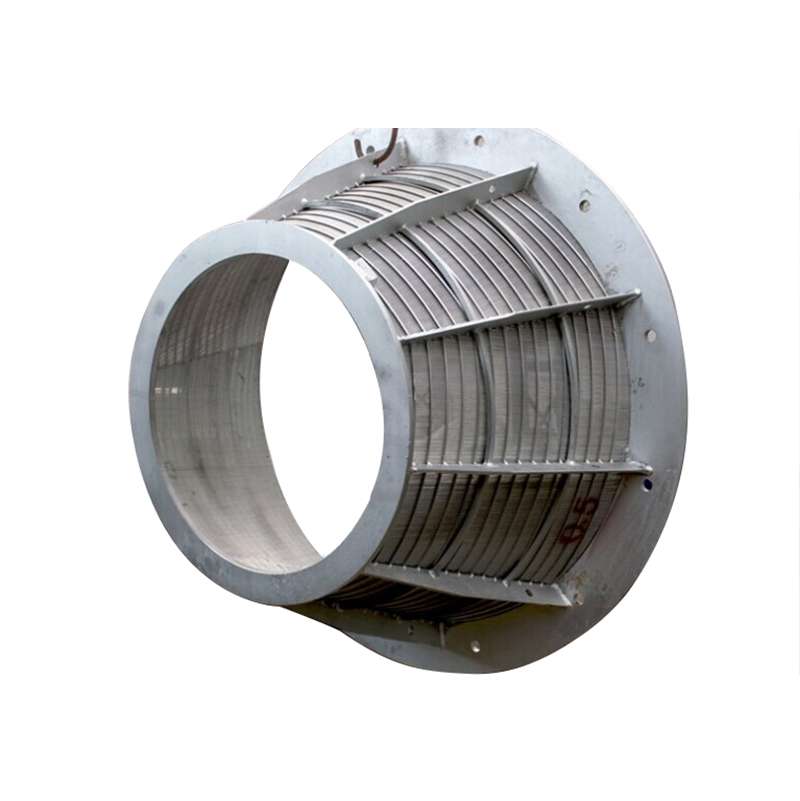

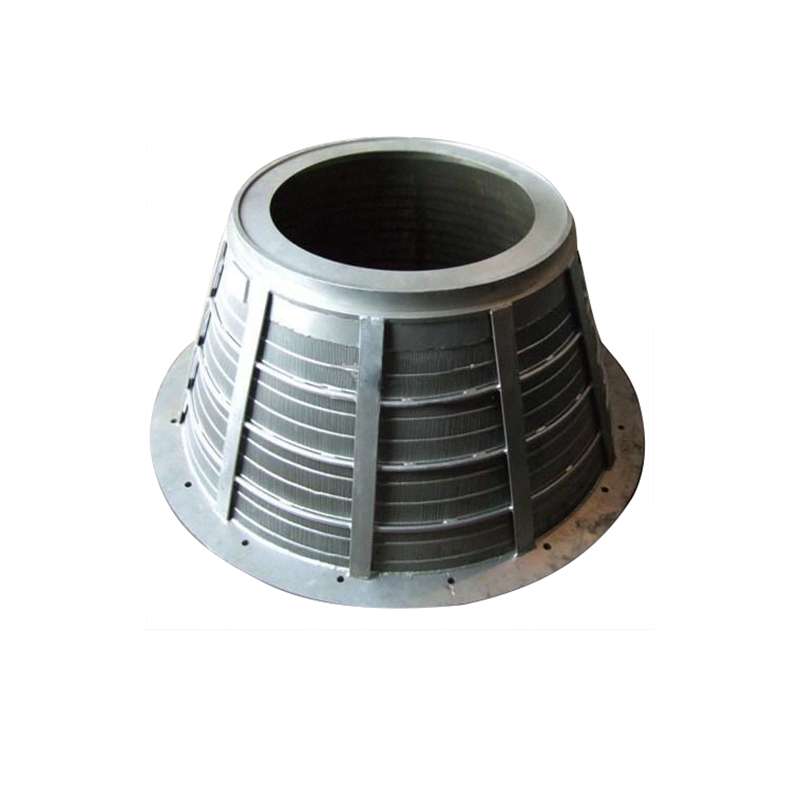

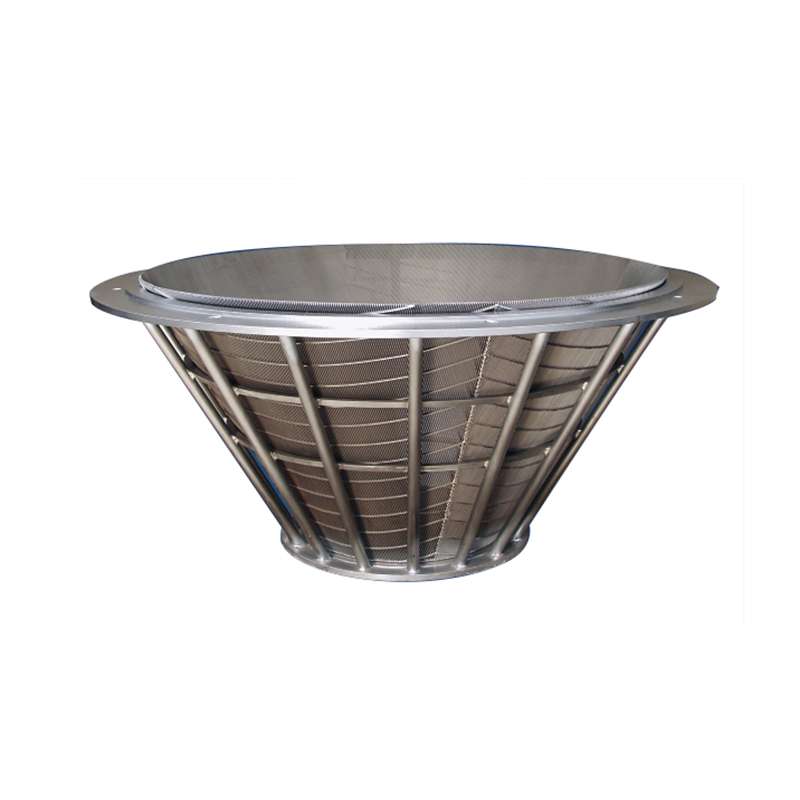

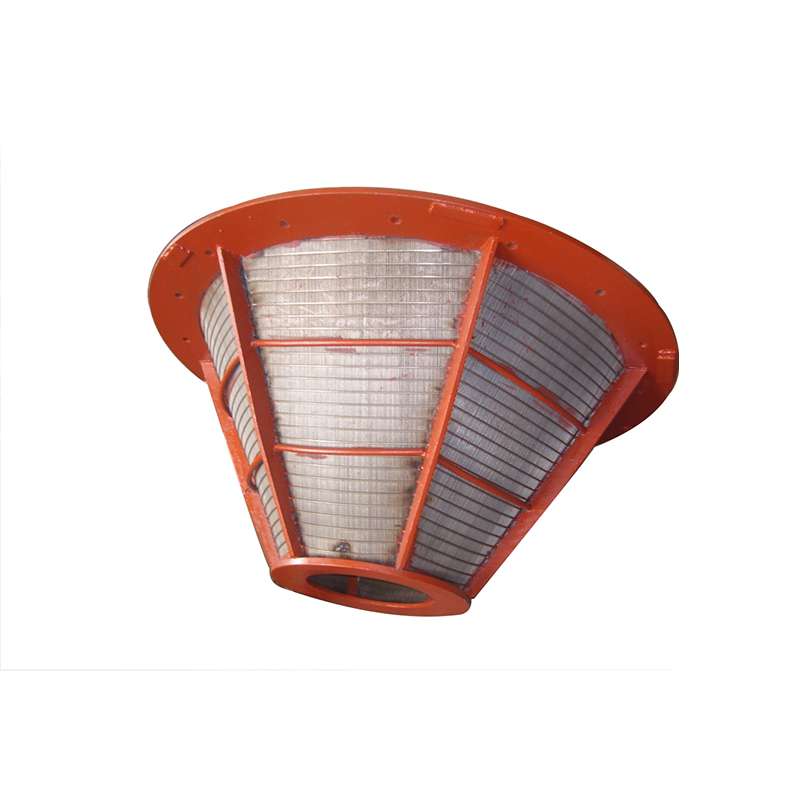

Category: Wedge Wire Screen Basket
Material: stainless steel 304,304L,304HC,316,316L,321,430 or as per your request.
Properties: Wedge Wire Screen Basket
Application: filters, strainers, architectural screens, water treatment underdrains, media support grids and overlays, infiltration gallery screens
Product Details
stainless steel screen basket and profile screens are all customs made. Length, width, shape, and spacing of profile wire are engineered to meet your special job requirements. And the individual wire on the working surface of the wedge wire screen or stainless steel screen can be manufactured at various angles to better serve your needs.
Application for Stainless Steel cylinder screen strainer basket:
Screen basket is mainly used in centrifuge dewatering, widely used in coal, chemical, and metallurgical industries. Screen basket is a key part of the centrifuge . It is high-speed rotating parts. When work, the basket should not only bear the vibration load but also bear the impact of coal and water. So it requires relatively high strength and precision.
Features for Stainless Steel cylinder screen strainer basket:
1. Combining the latest technology and years of experience as a whole.
2. Key components introduced abroad, lone service life, low maintenance cost.
3. All parts contact with the material is stainless steel, no material contamination.
4. Sieve basket is calibrated through dynamic equilibrium by the domestic authority body.
5. Sieve made from laser perforating on titanium alloy plate.
6. To facilitate the automatic design for the centrifugal sieve group, the CIP system and chain automatic control can be easily realized.
7. Advanced surface treatment technology ensures the good looking and resistance of oil and dirt.
8. Nozzles tested by strict examination in pressure and flow rate
9.Big capacity, low power consumption, stable operation, high starch extraction rate, and easy installation.
10. Widely used for starch extraction in starch processing factory.
Specifications of Stainless Steel cylinder screen strainer basket:
Specification(mm) | Inside Diameter(mm) | Outside Diameter(mm) | Slot Number(Bar) |
60 | 63.1 | 76 | 18 |
73 | 75.8 | 89 | 20 |
89 | 91.7 | 105 | 24 |
102 | 104.4 | 117 | 28 |
114 | 117.2 | 130 | 30 |
127 | 130.3 | 143 | 34 |
140 | 142.7 | 155 | 36 |
168 | 171.6 | 184 | 44 |
178 | 181.1 | 194 | 46 |
194 | 197.2 | 210 | 50 |
219 | 222.7 | 235 | 56 |
245 | 248.5 | 261 | 58 |
273 | 278.0 | 291 | 66 |
340 | 345.0 | 358 | 80 |
419 | 424.0 | 437 | 100 |
