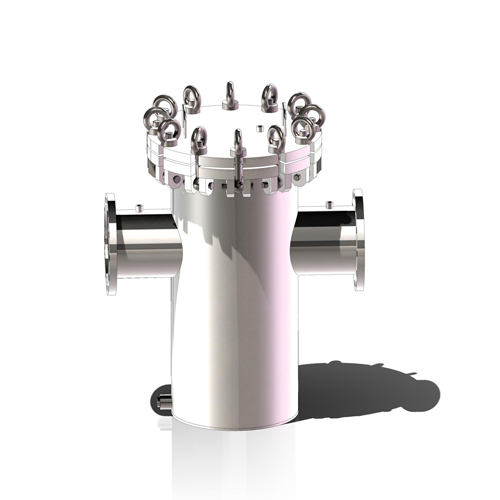

Basket Filter Housing



Inlet/Outlet: DN25~DN300

Working pressure: 1MPa~6.4MPa

Working temp: -30℃~200℃

Filtering precision: 10~300mesh

Flange: HG20592、HG20615、ASME B16.5 or customized

Housing material: Carbon steel, SS304, SS316, SS316 or customized

Basket material: SS304, SS316, SS316 or customized

Sealing material: Nitrile rubber, fluorine rubber, PTFE

Product Details

Baske Filter Housing--Removing large-size impurities from piping systems

Basket filters filter out particulate impurities in liquids and gases and protect the pipelines for transporting various liquids and gases.

A basket filter is a small device for removing a small number of solid particles in a liquid, mainly composed of the main body, filter basket, flange, and fasteners. Installed on the pipeline, it can remove large solid impurities in the fluid, so that the machinery and equipment (including compressors, pumps, etc.) and instruments can work and operate normally, so as to stabilize the process and ensure safe production.

When the fluid enters the filter basket with a built-in filter screen of a certain specification, the impurities are blocked, and the clean fluid passes through the filter basket and is discharged from the filter outlet. When cleaning is required, open the drain outlet at the bottom of the main body, drain the fluid, remove the flange cover, take out the filter basket and clean it, then reinstall it.

Therefore, it is extremely convenient to use and maintain.

Basket filters are used on oil or other liquid pipelines, the filtering pore area is 2-3 times larger than the through-hole pipe area, far exceeding the filtering area of Y-type and T-type filters, and the filtering precision is excellent.


1. The working principle is simple, the structure is not complicated, and it is easy to install, disassemble and maintain.

2. The equipment has few wearing parts, no consumables, low operation and maintenance costs, and simple operation and management.

3. Protect instruments, meters and mechanical equipment, and maintain the safety and stability of production.

4. The filter cartridge is made of stainless steel, and the filtration accuracy can be customized.

Applicable medium

A, weakly corrosive materials, such as: water, ammonia, oil, hydrocarbons, etc.;

B. Corrosive materials, such as caustic soda, soda ash, concentrated dilute sulfuric acid, carbonic acid, acetic acid, ester acid, etc.

C. Low-temperature materials in refrigeration, such as: liquid methane, liquid ammonia, oxygen and various refrigerants;

D. Materials with hygienic requirements in light industrial food and pharmaceutical production, such as: beer, beverages, dairy products, grain slurry medical supplies, etc.

YUBO offers different styles of basket filters according to your industry

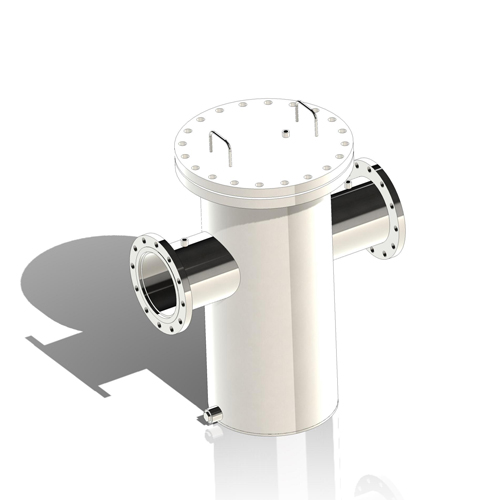

1.YZL serise

Basket Filter HousingBasket Filter Housing

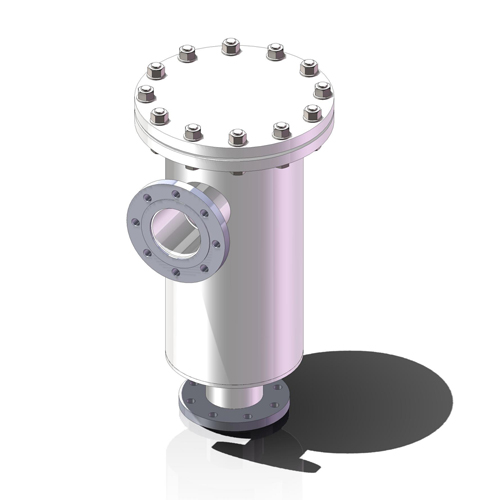

2. YXL series

Basket Filter HousingBasket Filter Housing


YUBO Manufacturing provides all kinds of stainless steel industrial filters, our filters can be widely used in multiple industries and complex liquid filtration, such as the food and beverage industry, industrial water treatment, chemical filtration, RO system pre-filtration, sterile filtration, pharmaceutical industry wait.

Our filter series are basket filters, bag filters, self-cleaning filters, and cartridge filters, in addition, we also provide customized services for industrial filtration systems to ensure that our customers can get the most effective filtration solutions.

Contact & Advice

In addition to the showed filter range, we can also manufacture Custom Made with deviating specifications at the customer’s request.

For the right filtration solution and filter products, contact or email our filter specialist.

We are happy to help you.

Our team of filter specialists is are 24/7 available.

We are specialized in liquid filtration for over 15 years.
