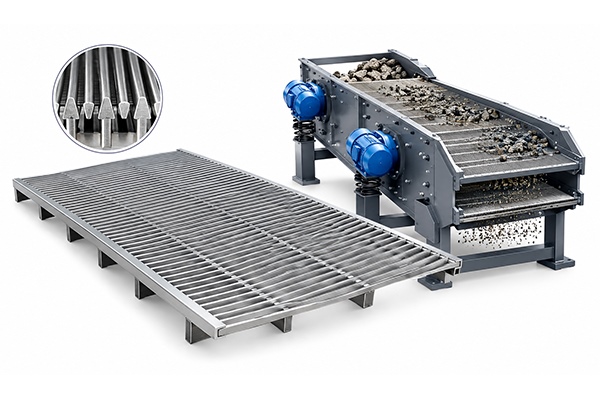

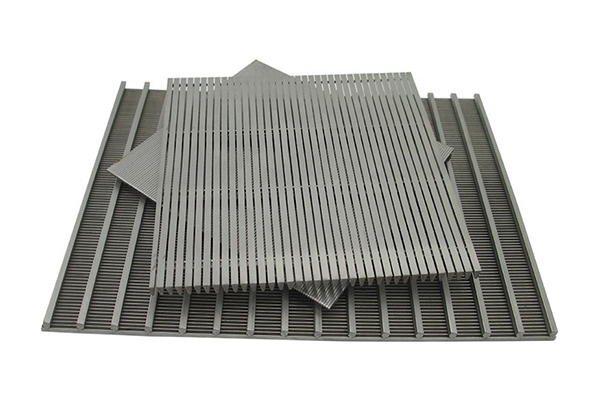

Wedge wire screen panels are commonly used as screening surfaces on vibrating screen decks for solid separation and particle classification. Their welded construction, continuous slot openings, and customizable support structure allow the screen panel to be matched to different screening equipment and material requirements.
A vibrating screen deck must provide a stable screening surface while allowing material to move across the panel under vibration. Flat wedge wire panels are well suited to this application because the surface profile and support structure are welded together to form a rigid panel.
The V-shaped profile wire creates continuous openings along the screening surface. This geometry provides controlled particle passage while the welded support structure helps maintain the required opening and panel strength during operation.
For applications where the screen deck is exposed to continuous vibration, material impact, or repeated loading, panel construction and mounting are therefore just as important as the opening size.
The operating principle is straightforward:
Feed material → vibration → separation → discharge
Material enters the vibrating screen and moves across the wedge wire panel as the equipment vibrates. Particles smaller than the selected slot opening can pass through the screen surface, while larger particles remain on the deck and move toward the discharge end.
The slot opening therefore plays a direct role in the required separation. It should be selected according to the particle size that needs to pass through the screen rather than chosen only from a standard specification.
Several specifications need to work together rather than being selected independently.
| Factor | Why It Matters |
| Slot opening | Determines the target separation size |
| Surface profile | Forms the screening surface |
| Support profile | Provides structural support |
| Panel dimensions | Must match the available screen deck |
| Material | Should suit the operating environment |
| Mounting method | Determines how the panel is installed |
YuanLv wedge wire screen panels use triangle wire as the surface profile, with support options including round bar, rectangular bar, wedge wire, and triangle wire. Stainless steel and other materials can be specified according to application requirements. Current product specifications include slot openings from 0.05 to 10 mm, with panel dimensions configurable for different equipment.
The important point is that these parameters should be considered as a complete panel configuration. A suitable slot opening alone does not guarantee that a replacement panel will fit or perform correctly on an existing vibrating screen.
Slot opening is one of the first specifications to establish because it determines the size of particles that can pass through the screening surface.
However, the required opening should not be selected from particle size alone. Feed characteristics, the desired separation result, screen configuration, and downstream requirements should also be considered.
For replacement projects, it is useful to confirm the opening of the existing screen and the actual separation requirement before ordering a new panel.
The support profile is part of the panel's structural design. It supports the surface wires and helps maintain the intended screening geometry.
YuanLv Filter panels can use different support profiles, including round bar, rectangular bar, wedge wire, and triangle wire. The appropriate configuration depends on the panel design and the requirements of the screening equipment.
This is particularly important when replacing an existing screen deck. The new panel should match not only the screening opening but also the physical and structural requirements of the equipment.
Wedge wire panels differ from conventional mesh or perforated screening media mainly in their opening geometry and welded construction.
| Consideration | Wedge Wire Panel | Conventional Mesh or Plate |
| Opening | Continuous slots | Mesh openings or punched holes |
| Construction | Welded profile and support structure | Depends on media type |
| Configuration | Profile, support and dimensions can be customized | Depends on product design |
The appropriate screening medium ultimately depends on the material, separation requirement, equipment design, and operating conditions.
A custom panel is useful when a standard screen does not directly match the existing equipment or process requirements.
Typical customization requirements include:
• Screen deck length and width
• Slot opening
• Surface and support profiles
• Material
• Frame or mounting arrangement
• Special panel shape
For a replacement panel, the most useful information to provide is the existing screen dimensions, required opening, screened material, panel material, and mounting details. This gives the manufacturer a practical basis for confirming the panel configuration.
YuanLv Filter manufactures flat wedge wire screen panelsfor vibrating screen decks and other industrial screening applications, with customized dimensions, profiles, materials, and finishing options available according to project requirements.
1. Can an existing vibrating screen deck be replaced with wedge wire panels?
Yes, provided the replacement panel matches the deck dimensions, mounting arrangement, required opening, and structural configuration of the equipment.
2. What information should I provide when requesting a replacement panel?
The screen deck dimensions, slot opening, screened material, material grade, support arrangement, and mounting details are useful starting information for a quotation.
3. Can wedge wire panels be made in shapes other than rectangular panels?
Yes. Depending on the application, wedge wire panels can be manufactured in customized shapes and configurations rather than being limited to a standard rectangular format.
