Wedge Wire Resin Trap Strainer for Water Treatment

Oct. 07, 2023

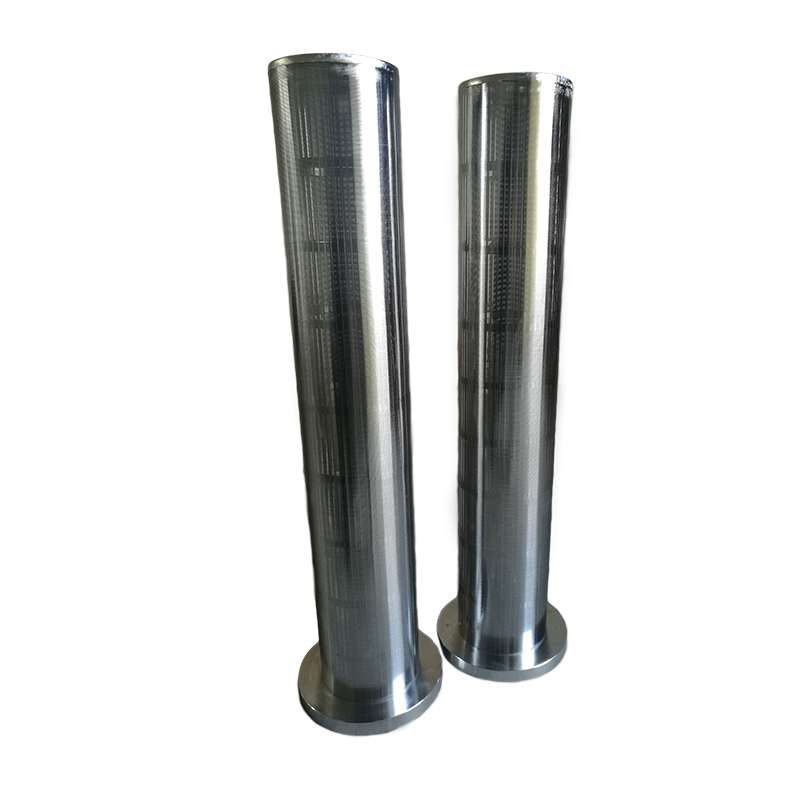

What is Wedge Wire Resin Trap Strainer?

wedge wire screen Resin Trap ion exchange stainer

A wedge wire screen resin trap strainer for ion exchange is a crucial device utilized to capture resin particles that may be carried away with water during various industrial processes. Resin is often employed for tasks like water purification and ion exchange, and it is vital to ensure that it does not enter the system where it can interfere with equipment operation. The resin trap plays a pivotal role in preventing such issues.

The resin trap is installed strategically within the system to intercept any resin particles that might escape from their intended location. This device is designed to allow the passage of water while effectively trapping resin particles. Simultaneously, it is equipped with a mechanism for automatic flushing, which helps to clean the trap and remove the intercepted resin from the system.

The core structure of a slotted screen resin trap comprises rods and warp. The rods can be constructed in various shapes, including round wire, triangular wire, or trapezoid wire. On the other hand, the warp consists of triangular wire, forming a V-shaped profile. The use of wedge wire in resin traps offers several advantages, such as a robust structure, a large open area, and precise slot dimensions. Additionally, wedge wire screens possess desirable qualities like heat resistance, excellent machine capability, safety, and reliability, making them suitable for a wide range of medium filtering applications.

Application Of Wedge Wire Screen Resin Trap:

The application of wedge wire screen resin traps is diverse and critical in various industries, primarily in water treatment and filtration processes. Some key applications include:

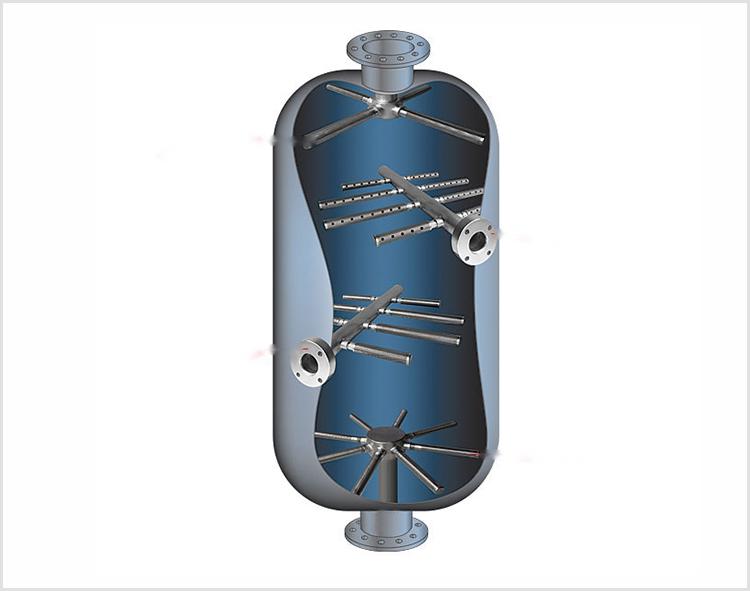

Wedge Wire Resin Trap for water treatment

Ion Exchange Systems: Resin traps are commonly installed near the outlet of ion exchangers to prevent resin particles from entering the treated water, ensuring the purity and efficiency of the ion exchange process.

Desalination Plants: In desalination plants where seawater is transformed into industrial or potable water, resin traps play a vital role in maintaining the integrity of the water treatment process.

Running Water Treatment: Resin traps are used in the treatment of running water to remove impurities and contaminants, ensuring the delivery of clean and safe drinking water to consumers.

Water Softening: Resin-based water softeners use resin traps to capture any resin particles that might escape, ensuring the effectiveness of the softening process.

Advantages of Wedge Wire Resin Traps:

Wedge wire resin traps offer several advantages that make them an ideal choice for various applications:

High Efficiency: Their precise slot dimensions and large open area allow for efficient particle capture while minimizing flow restriction.

Robust Structure: Wedge wire screens are durable and can withstand harsh operating conditions, ensuring a longer service life.

Heat Resistance: These screens can withstand high temperatures, making them suitable for applications involving hot liquids or gases.

Good Machine Capability: Wedge wire resin traps are easy to install and integrate into existing systems, enhancing overall operational efficiency.

Safety and Reliability: The automatic flushing mechanism ensures consistent performance and prevents resin buildup that could compromise equipment operation.

In conclusion, wedge wire resin traps are essential components in various industrial processes, especially in water treatment and filtration. Their ability to efficiently capture resin particles while maintaining system integrity makes them indispensable in ensuring the quality and efficiency of these processes. With their robust construction and numerous advantages, they offer a reliable solution for a wide range of applications.

Taking advantage of the technology to form the world's narrowest slits, YUANLV manufactures metal filters that are less likely to be clogged and have high cleaning and reproducibility. In addition, YUANLV designs and manufactures solid-liquid separators, filtration equipment, self cleaing filter housing, Hydro Sieve, etc.

Choose us for Resin Traps that redefine filtration efficacy — where innovation flows seamlessly with reliability.
