Stainless steel automatic Self cleaning water filter housing suit for any kind of viscosity liquid filtration and industrial water treatment. The filter elementd usually are wedge wire screen filter strainer.
We manufacture high-quality self-cleaning systems with leading designs that are modifiable based on user needs and drawing specifications.
Product Details

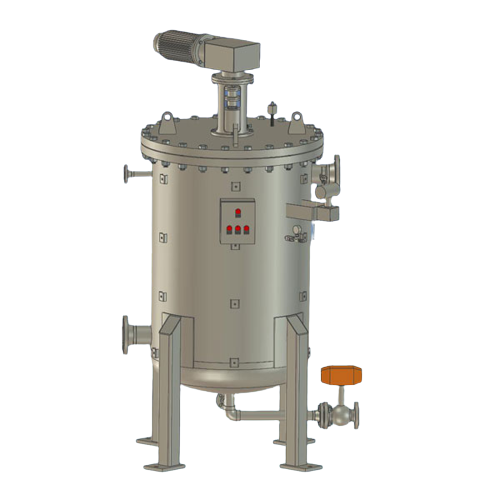

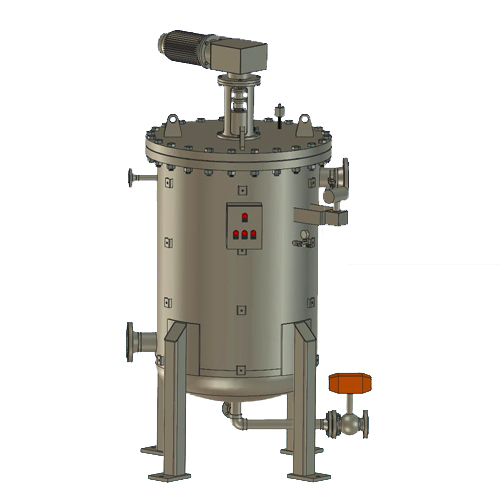

Self Cleaning Filter Housing is suitable for any kind of viscosity liquid filtration and industrial water treatment. The filter elementd usually are wedge wire screen filter strainer.
We are a leading manufacturer specializing in the manufacture of Self Cleaning Water Filter Housing and water treatment systems. For many years, we have been committed to providing high-quality filtration solutions that provide excellent filtration solution and filters for customers' industrial and commercial applications.
Excellent performance: Our auto backwash Self Cleaning Water Filter Housing is excellent in filtration efficiency and durability, effectively removing particles, pollutants, and harmful substances, ensuring your production environment is clean and safe.
Customer First: Our team upholds a professional, dedicated, and considerate service attitude to ensure that you get full support and a satisfactory experience throughout the purchase and use process.
All-round solutions: Whether your industry is chemical, food, pharmaceutical, mining, or other fields, we can provide you with all-around filtration solutions to meet your specific needs.
Global service: Our products are sold at home and abroad, with a wide range of customer groups.
Yuanlv manufactures a wide range of industry filters, especially automatic Self Cleaning Filters to meet your needs for liquid filtration. Our Self Cleaning Filter Systems are designed to be excellent for use in the filtration of liquids in various industries. We manufacture high-quality self-cleaning systems with leading designs that are modifiable based on user needs and drawing specifications.

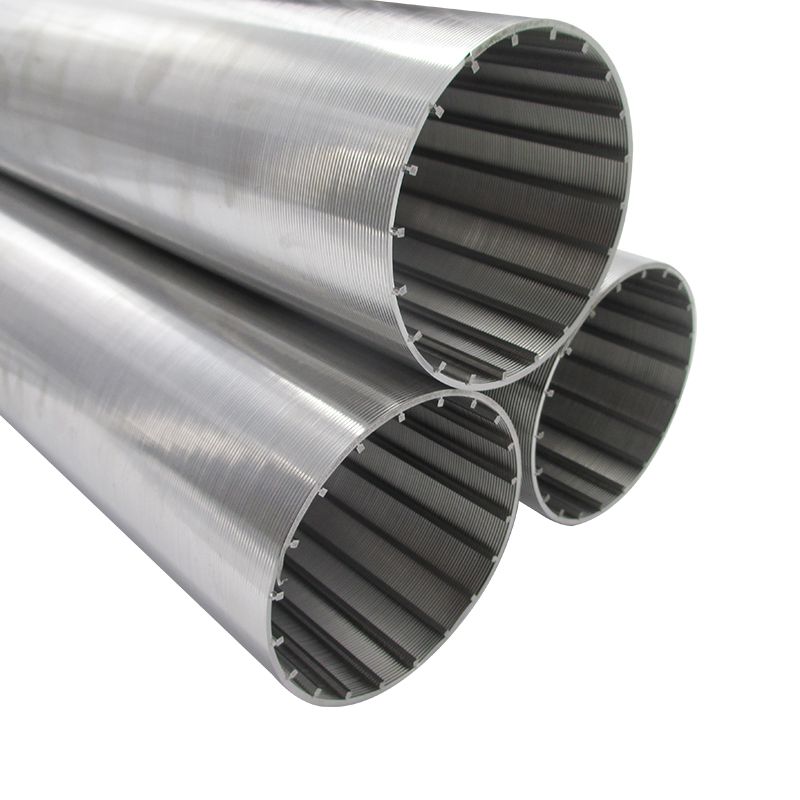

The system of our self-cleaning filter is made of a V-wire screen which is welded in a precisely defined spacing on a circle of supporting profiles. This creates a solid, stable in themselves wedge wire element. Using a wedge wire screen avoids blocking the free filter surface.
We manufacture and fulfill orders globally. Our customers can order from us their own specified self cleaning filter requirements, depending on the design and drawing specifications.

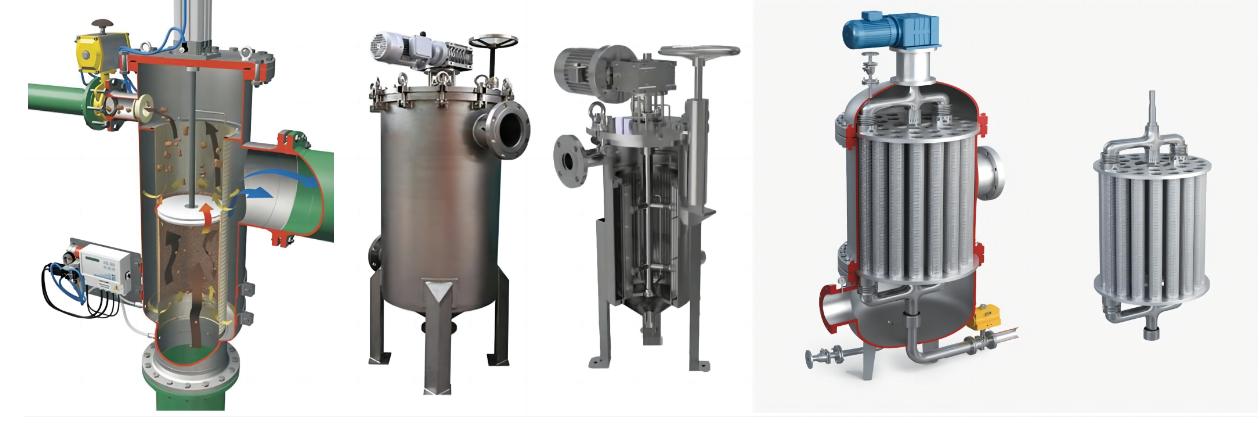

The self-cleaning filter housing can be divided into scraper self cleaning filter housing, Disc self cleaning filter housing and Backwash Self-cleaning Filter Housing.

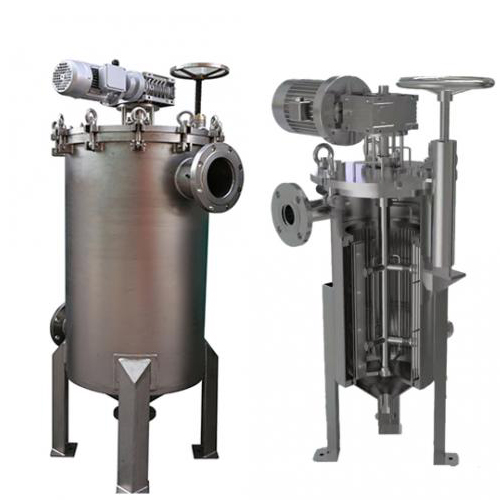

Cleaning by the rotary scraper.
Cleaning by vertical up and down.
Backwash Self-cleaning Filter Housin: Automatic continuous on-line filtration without downtime for cleaning
| Liquid | Water and viscous liquid (<800000cps), impurity content <1000ppm |
| Filter rating | 30-1500μm |
| Design pressure | 1.0MPa or customized |
| Design temp. | 0-200℃ |
| Filtering area | 0.14m²-1.45m² |
| Press difference | 0.05MPa |
| Pressure alert | Pressure switch |
| Gearmotor | 550W,three-phase,380V,IP55 |
| Inlet/outlet flange | HG20592-2009, HG20615-2009(ANSI B16.5) |
| Drum screen | Wedge wire,SS304/SS316L/2205/Titanium |
| Housing material | 304/316L/CS |
| Scraper material | Copper/alloy steel/PTFE |
| Seal material | NBR/VITON(FKM) |
| Drain valve | Electric/pneumatic ball valve，IP55 |
| 380V AC，0.4-0.6MPa Clean and dry compressed air |
The Automatic Self Cleaning Water Filter systems are fabricated with industry-leading techniques and are designed to meet a wide range of industrial applications for water filtration in processed water, seawater, recycle water as well as waste treatment, etc, it is also suitable for high-pressure and high-temperature applications.
| paint | brewery | vegetable oil |
| medicine | chemical | Petroleum products |
| Textile chemicals | cosmetic | Electroplating solution |
| milk | Honey | Industrial wastewater |
| resin | emulsion | ink |
| juice | edible oil | Waxes |
