Screen Filters in Drip Irrigation Systems

Drip irrigation has revolutionized modern agriculture and landscaping.

By delivering water directly to the root zone at low rates and high frequency, it offers significant savings in water, nutrients, and energy compared to traditional sprinkler systems. This precision allows for targeted delivery of water-soluble nutrients, closely matching plant needs.

However, the very precision that makes drip irrigation so effective also makes it vulnerable. The small emitters that deliver water are susceptible to clogging, which can undermine the entire system's efficiency. This is where effective water filtration becomes not just important, but essential.

Screen Filters: Your First Line of Defense Against Physical Contaminants

Among the various filtration methods, screen filters are often the go-to solution, especially for removing physical particles.

What makes them so popular?

Simplicity:Their design is straightforward, typically a durable stainless steel wire mesh screen element housed within a filter body.

Effectiveness: They physically block particles larger than the screen's mesh openings from passing through.

Cost-Effectiveness: They generally offer reliable filtration at an economical price point.

When and How to Use Screen Filters Effectively

The best way to deploy a screen filter depends heavily on your water source:

Surface Water (Rivers, Lakes, Canals, Ponds): Surface water often contains significant organic matter (like algae) and physical debris. Here, screen filters usually serve as secondary filters. They are installed after a primary filter (like a media filter, which is better at removing organic loads). In this setup, the screen filter acts as a safety net, catching any particles the primary filter might miss or any filtration media that might wash out.

Well Water: Groundwater quality varies.

If the well water has a low sediment load, a screen filter might be sufficient as the primary filter.

If the well water carries a significant amount of sand or silt, a screen filter is often used as a secondary filter after a hydrocyclone or vortex sand separator (which efficiently removes heavier mineral particles).

Exploring Different Types of Screen Filters

Not all screen filters are created equal. Different designs cater to specific needs:

Gravity Screen Filters: Ideal for systems where water flows from an elevated source (like a tank or reservoir) and minimizing pressure loss is critical. These filters operate effectively under low-pressure conditions.

Intake Screens: When pumping directly from an open water source (lake, river, pond), an intake screen is crucial. Positioned at the pump's suction inlet, its job is to prevent larger debris, fish, plants, and animals from entering the system in the first place. Good design ensures water can pass through while deflecting debris, often using horizontal screens below the surface or basket-type filters.

Self-Cleaning Screen Filters: For maximum convenience and consistent performance, consider automatic self-cleaning screen filters. These units monitor the pressure difference between the inlet and outlet. As the screen accumulates debris, the pressure drop increases. Once it reaches a preset threshold, an automatic flushing cycle is triggered, cleaning the screen without interrupting irrigation significantly. Cleaning can often be scheduled on a timer basis as well.

Disc Filters:

It's worth noting that disk filters represent a newer technology that can sometimes be used instead of or alongside screen filters. They use stacks of grooved discs to trap particles and offer excellent filtration capacity, particularly for certain types of contaminants.

Find the Right Filtration Solution for Your Drip System

Choosing the correct filter type and size is critical for protecting your drip irrigation investment and ensuring optimal performance. Factors like water source, flow rate, contaminant type, and maintenance preferences all play a role.

Looking for reliable filtration solutions?

Our factory specializes in manufacturing a wide range of high-quality filters suitable for diverse drip irrigation needs, including:

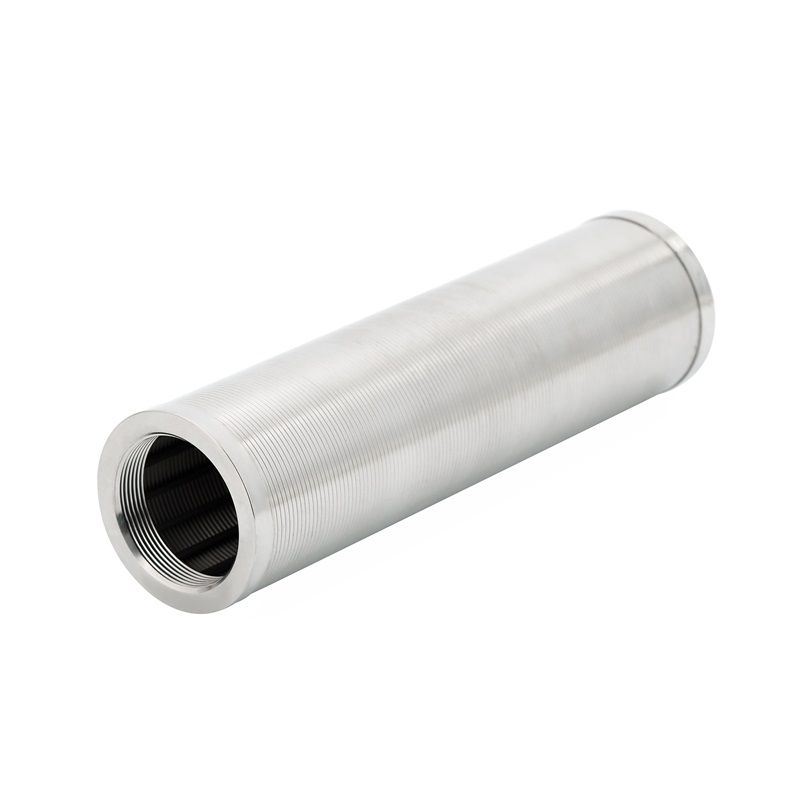

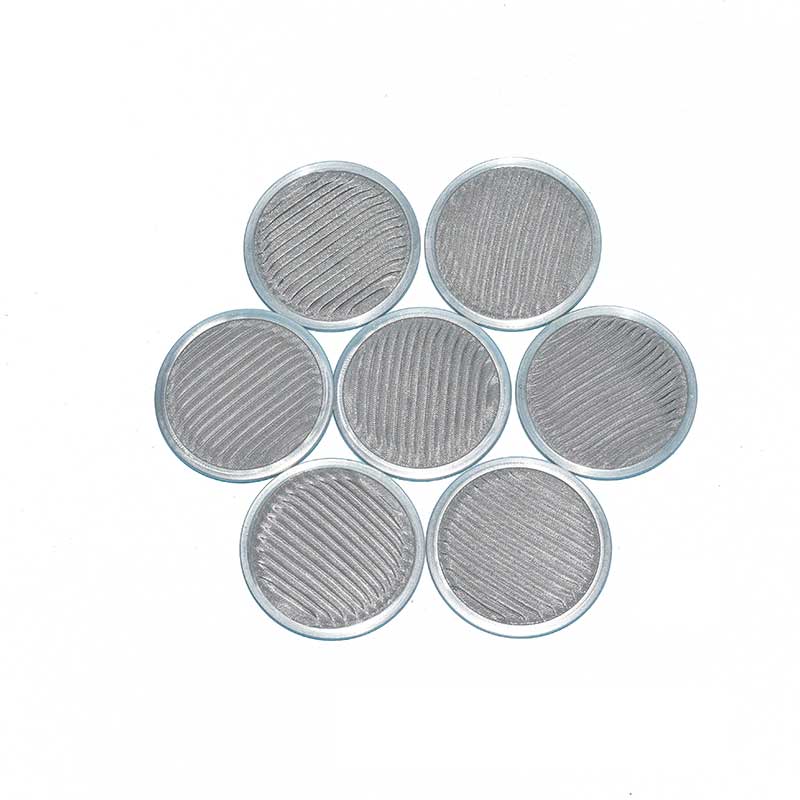

• Durable Stainless Steel Screen Filters

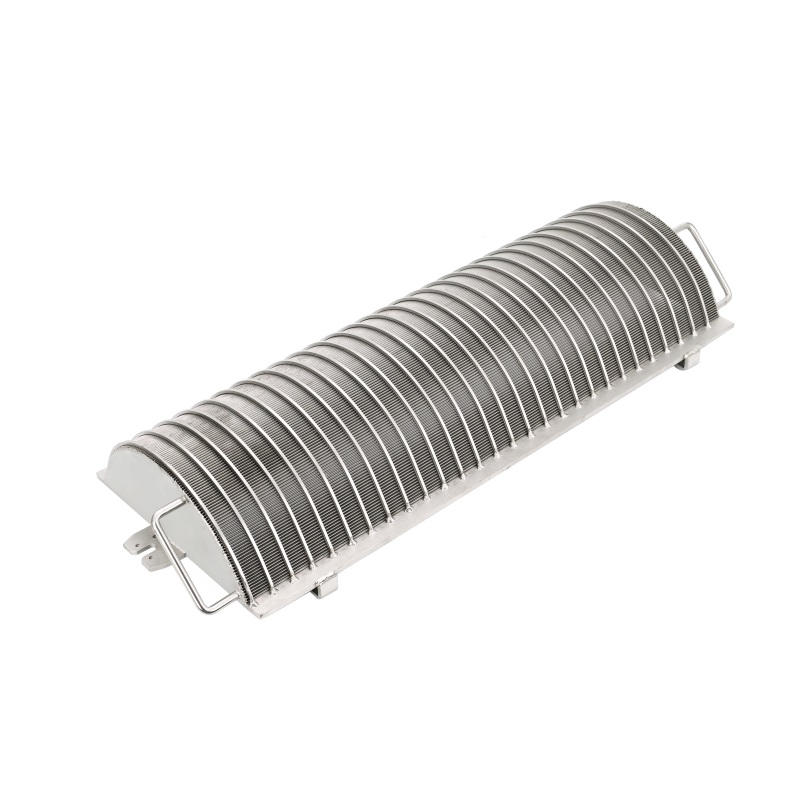

• Efficient Intake Screens

• Low-Pressure Gravity Screen Filters

• Convenient Self-Cleaning Screen Filter Systems

We understand the challenges of maintaining clean water for irrigation. Our team is ready to help you select the perfect filter to protect your system, save water, and maximize your crop health or landscape beauty.

Have questions or need guidance on the best filter for your specific setup?

Contact us today!

Let's ensure your drip irrigation system operates flawlessly for years to come.
