Vessel Internal|Ion Exchange Lateral Assembly for Sale

Jul. 14, 2025
Share:

Selecting the right vessel internals, especially hub and lateral distributor systems, is essential for maintaining efficient and durable ion exchange operations in water treatment, chemical processing, and industrial systems.


What Is a Hub & Lateral Assembly?

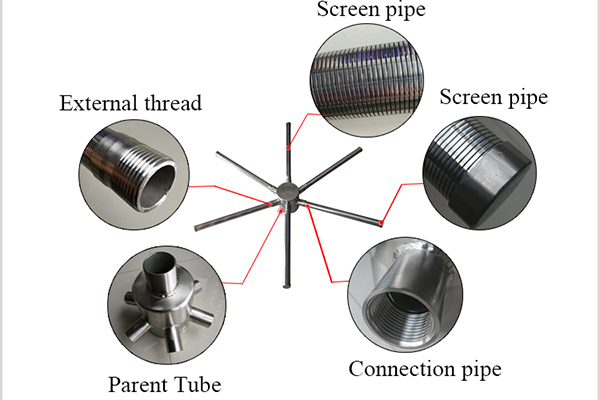

A hub and lateral system, also known as a lateral assembly or water distributor and collector, features a central hub connected to multiple wedge wire screen laterals. Installed at the top, bottom, or middle of a pressure vessel, it ensures even flow distribution and collection across the resin bed, preventing channeling and enhancing ion exchange efficiency.


Built with stainless steel (SS304, SS316, SS316L) and wedge wire or Vee wire screens, these lateral assemblies withstand high pressure, resist corrosion, and deliver long service life.


Vessel Internal|Wedge Wire Ion Exchange Lateral Assembly for Sale


Why Invest in Quality Ion Exchange Lateral Assemblies?

• Uniform Flow & Reduced Channeling

Balanced distribution improves resin utilization and reduces bypass or untreated zones.

• Reliable Media Retention

Precision-designed screens ensure the resin stays in place during service and backwash, avoiding media loss or clogged downstream equipment.

• Robust Durability

With continuous-slot wedge wire and high-grade stainless steel, these internals resist clogging, and corrosion, and withstand pressure variations

ar.

• Customizable Fit

Available in radial, fishbone, or T‑type lateral patterns, with threaded or flange connections to match any vessel design.


Ion Exchange Lateral Assembly, Hub and Lateral Assembly, Wedge Wire Lateral Assembly, Wedge Wire Water Distributor, Supplier

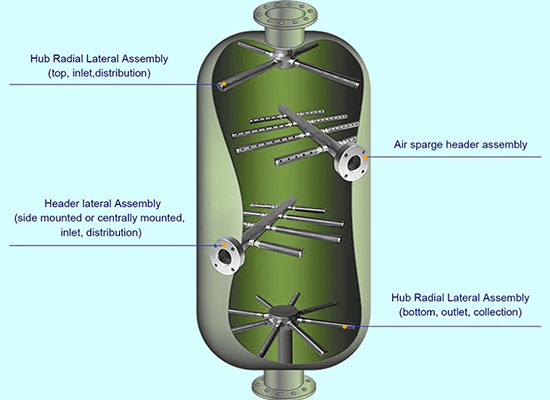

Popular Types of Wedge Wire Lateral Assemblies

Hub Radial Lateral Assembly: Mounted at the top or bottom; ensures even inflow or outflow.

Header Lateral Assembly: Positioned mid‑vessel; enhances distribution and prevents resin escape.

Side‑Nozzle Laterals: Ideal for confined vessels or specialized flow requirements.

Resin Trap Assemblies: Retain fine resin beads during backwash or flow surges.

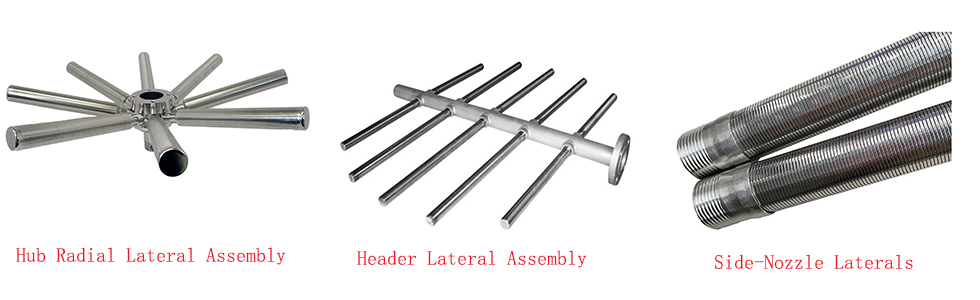

Hub Radial Lateral Assembly, Header Lateral Assembly, wedge wire Side‑Nozzle Laterals, Resin Trap Assemblies


Applications & Industry Benefits

These wedge wire ion exchange lateral assemblies are essential in:

Water treatment (softening, demineralization, RO pre‑treatment)

Industrial process water systems

Wastewater and power‑plant filtration

Chemical and petrochemical extraction

Sand, carbon, or mixed‑bed filters


They support efficient resin regeneration, minimize pressure loss, and resist clogging, ensuring smoother operations and reduced maintenance needs.


Choose the Right Ion Exchange Lateral Assembly Supplier

When sourcing ion exchange lateral assemblies for sale, aim for:

• Customization to fit your specific vessel dimensions and operating conditions.

• High‑quality materials (SS316L, wedge wire).

• Robust mechanical design that resists pressure, fouling, and corrosion.

• Clear documentation for material specifications, fabrication standards, and flange/thread types.

• After‑sales support, including installation guidance, replacement parts, and engineering consultation.


Invest in a well‑designed vessel internal hub and lateral system to achieve:

✔ Even flow distribution, reduced channeling

✔ Secure resin retention and low-pressure drop

✔ Long-term durability in harsh or high-pressure environments

✔ Tailored configuration for your exact process needs


Yuanlv is your stable and reliable wedge wire ion exchange lateral assembly supplier at a nice price. Our engineers can help specify materials, design configurations, and flow ratings to meet your project goals.
