The wedge wire water header laterals distributor is easy to penetrate, having good wear-resisting and corrosion resistance.
With Trapezoidal cross-section, even gap, stable welding quality, large opening area, long lifetime, high strength, and high load capacity, it can be made into various shapes. The dimensions, wire diameter, slot, and frame structure can be customized.
Product Details
Description of wedge wire water header laterals distributor:

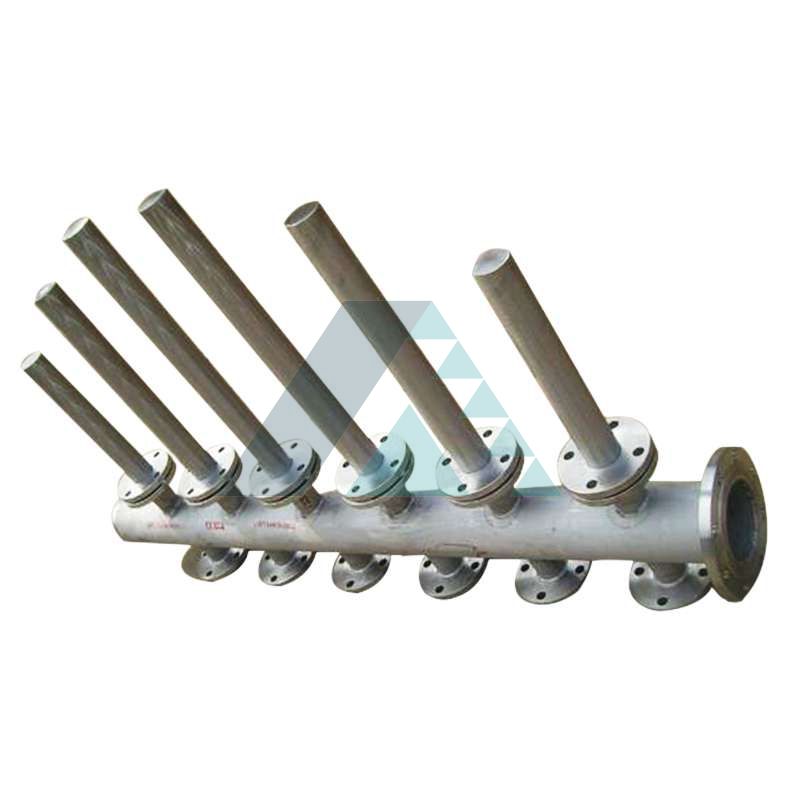

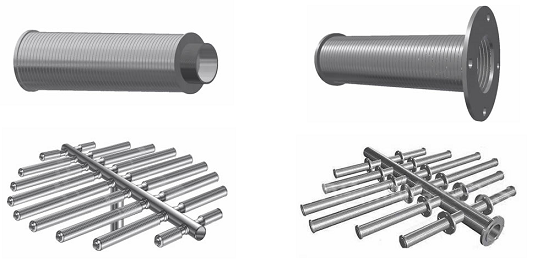

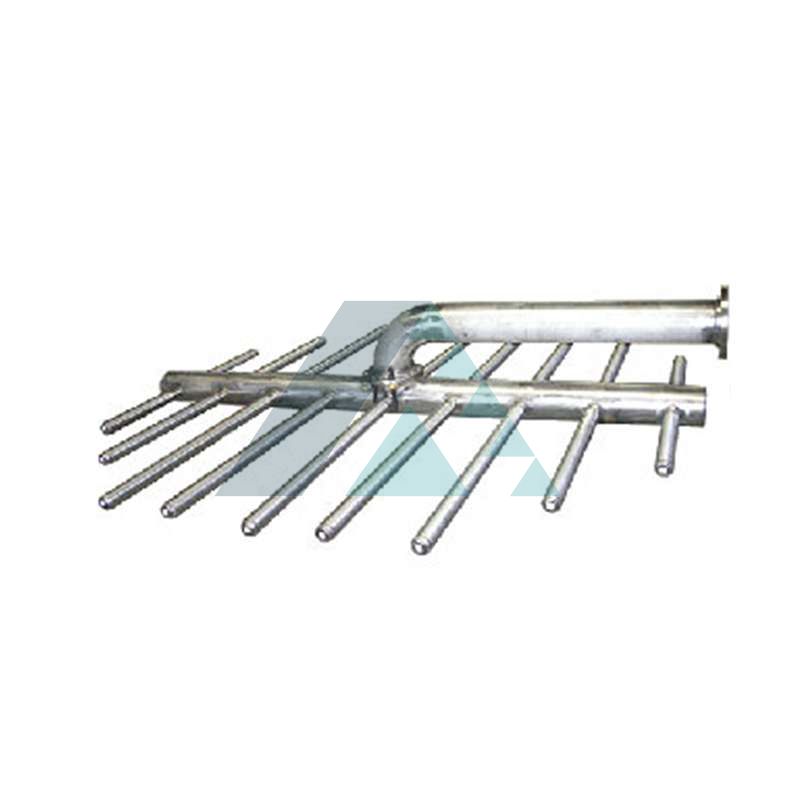

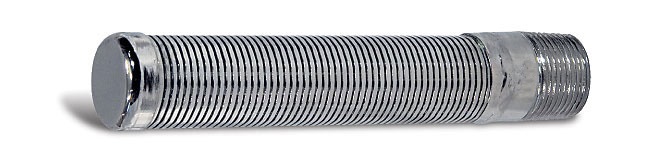

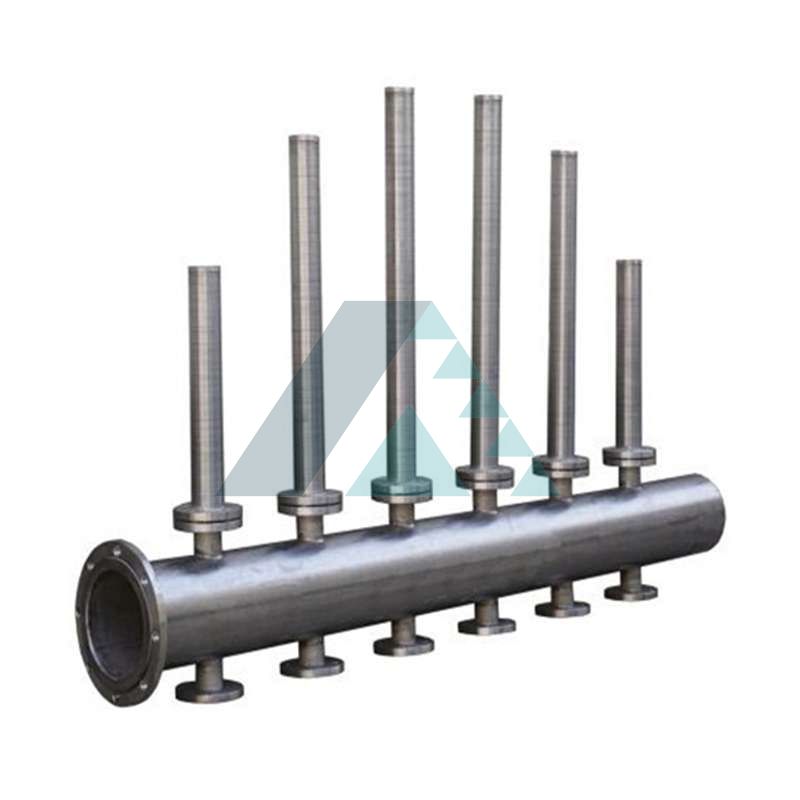

A wedge wire screen water header lateral system consists of a central header or hub connected to multiple laterals that extend outward. Each lateral is manufactured from stainless steel wedge wire screens, designed with precision slots that ensure uniform flow distribution while preventing media loss.
The water header lateral distributor is easy to penetrate, having good wear-resisting and corrosion resistance. With Trapezoidal cross-section, even gap, stable welding quality, large opening area, long lifetime, high strength, and high load capacity, it can be made into various shapes. The dimensions, wire diameter, slot, and frame structure can be customized.
Advantage of the wedge wire water header laterals distributor
1. Uniform slot, no leakage of resin or material
2. High opening area, high flow area which can meet large flow requirement
3. Large liquid distribution area and uniform distribution
4. The diversified structure which can meet the requirements of the container
5. High-pressure tolerance of branch pipe
6. The high-quality material ensures a longer life
Whether used in sand filters, ion exchange vessels, or wastewater treatment systems, wedge wire header laterals ensure even water distribution and reliable performance.
Application of wedge wire water header laterals distributor
The wedge wire water header laterals distributor consist of a series of screen laterals connected to either a central-header pipe or a hub, they are important components of ion exchange units, media filters, sand filters, carbon strip vessels, carbon towers, clay filters and in many water and waster water treatment applications.

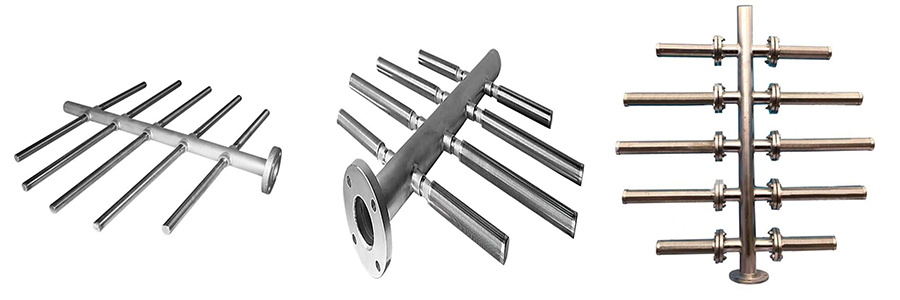

Wedge wire screen hub and lateral distributors are widely used across industries:
• Water Treatment Plants: for even distribution in filtration and softening systems.
• Ion Exchange Systems: preventing resin loss and ensuring stable operation.
• Desalination Plants: durable under continuous high-pressure operation.
• Chemical Processing : resistance to aggressive liquids and solvents.
• Power Plants: applied in condensate polishing units and cooling water systems.
Specifications of wedge wire water header laterals distributor:
Material | SS304, SS304L, SS316, SS316L, SS321, 904, C276, 2205, 2207, Duplex, Hastelloy, etc | ||
Normal Lateral Tube QTY (PCS) | 4, 6, 8, 12,16, etc. According to request, actual flow rating, and application. | ||
Lateral OD Range (mm) | 25 to 80mm, customized | ||
Normal Header diameter (mm) | According to flow rating, thread and flange diameter, and customers’ requirement | ||
Header and lateral connector types | Thread, Flange | ||
Diameter Range(mm) | According to the tank diameter. (Usually 200mm shorter than tank diameter) | ||
Slot Range(mm) | Normal slot 0.2, 0.25, 0.3, 0.35, 0.4mm.Slot according to request. | ||
Wedge Wire(mm) | 1x2 | 1.5x2 | 2x3 |
Support Rod (mm) | 1.5x2.52x3 | 1.8x2.52x3 | 2x32x4 |
Note | Customized According To Requirement | ||
Why Choose us?
We are a professional wedge wire water lateral distributor manufacturer and supplier in China. Clients can access customized wedge wire screen header laterals for specific flow rates, vessel sizes, and filtration demands.
We offer:
• Factory-direct pricing: competitive without compromising quality.
• Customization options: from hub size, lateral length, slot size, and connection type.
• OEM and ODM services: designed to meet unique system requirements.
• Strict quality control: compliant with international standards.
• Global supply capacity: ensuring timely delivery for large-scale projects.
