Hub and Header Laterals Wedge Wire Screen

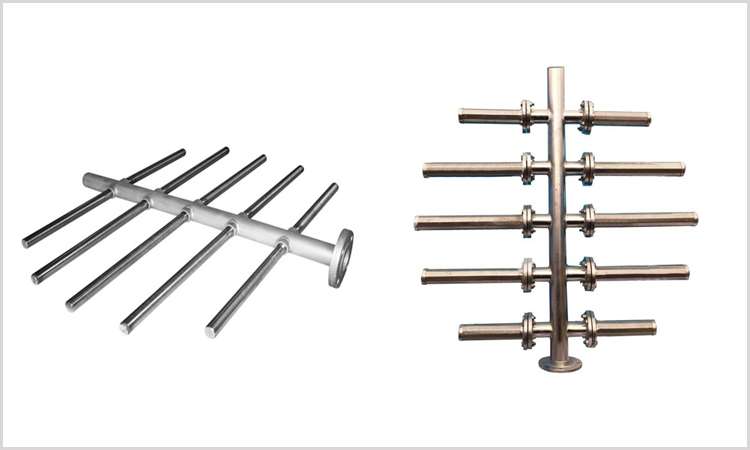

Wedge Wire Hub and Header Laterals are divided into Hub Radial Lateral Assembly and Header Lateral Assembly. It is for the uniform arrangement of water in a certain working area according to the law.

All Lateral Assemblies are designed for effective liquid or solid retention in a wide range of applications including exchangers, clay, and sand filtration applications, carbon towers, and power plants with water systems.

Product Details

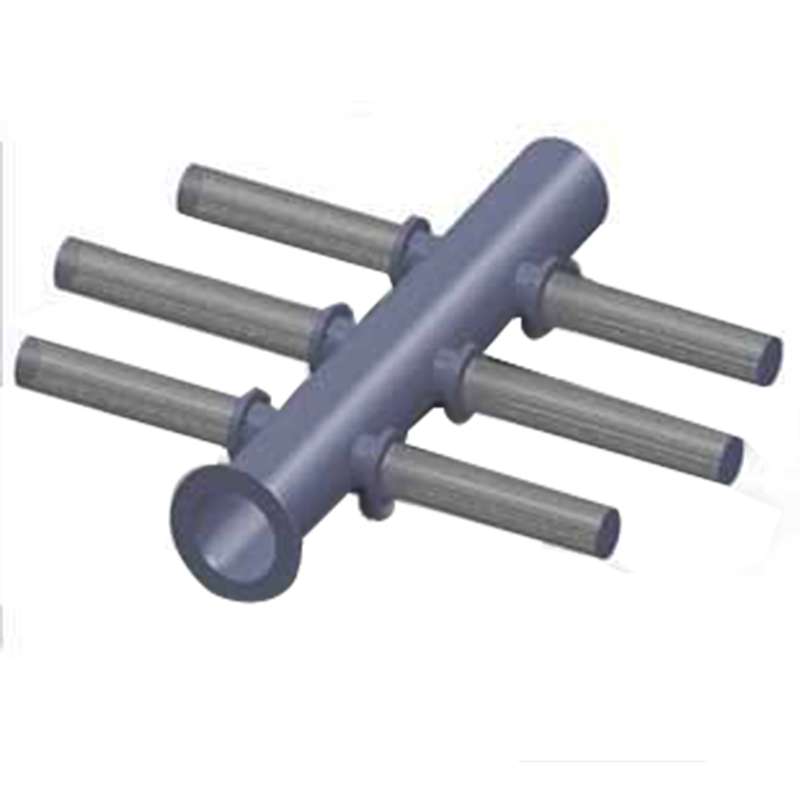

Wedge Wire Hub and Header Laterals are essential components divided into the Hub Radial Lateral Assembly and the Header Lateral Assembly. They facilitate the uniform distribution of water/liquid within a designated working area, adhering to hydraulic principles.

All Lateral Assemblies are meticulously crafted to ensure the effective retention of liquids or solids across various applications, including exchangers, clay and sand filtration systems, carbon towers, and water systems in power plants.

Wedge Wire Hub and Header Laterals is designed to promote uniform flow and prevent flow/pressure imbalances, each hub and header lateral comprises a series of screen laterals connected to a central header, ensuring consistent flow throughout vessels containing treatment media.

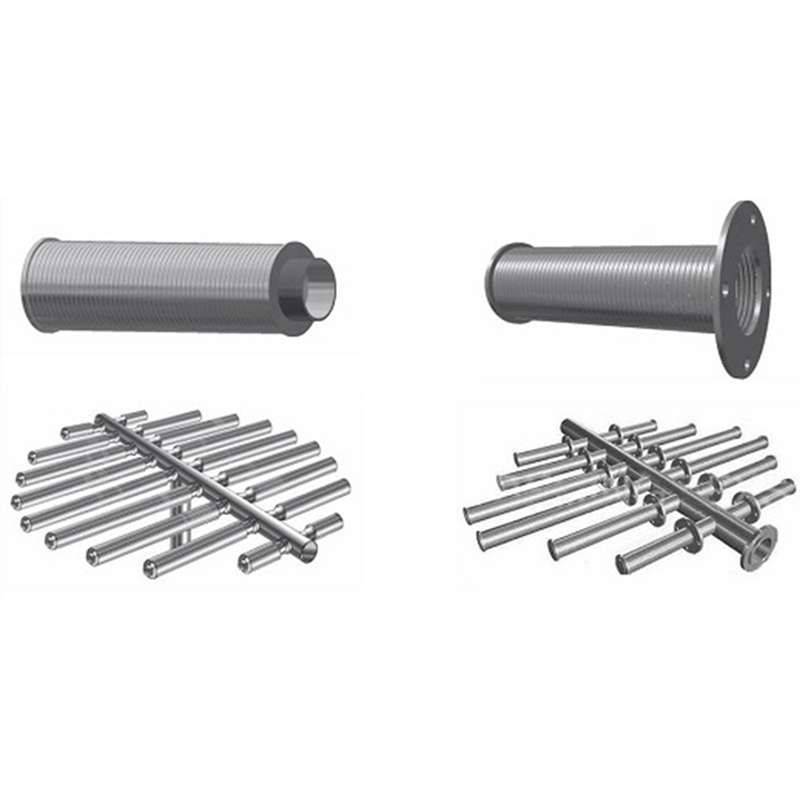

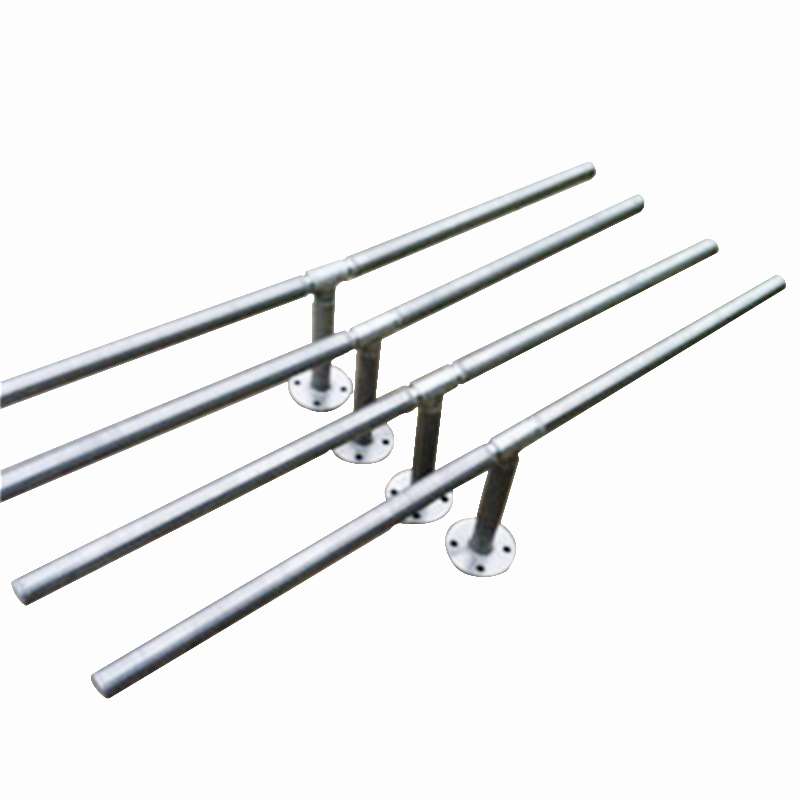

The screen laterals are easily removable and can be customized with either flange or threaded nipple connections for convenient installation.

Wedge Wire Hub and Header Laterals

Our Header and Hub-Lateral Systems are tailored to your specific design requirements, considering factors such as vessel diameter, volumetric flow rate, allowable pressure drop through the screen, type of resin or media to be retained, and minimum required open area. Collaboration with YUANLV during the design and engineering phase is crucial to accommodate all screen characteristics effectively.

Specifications of Wedge Wire Hub and Header Laterals:


SS304, SS304L, SS316, SS316L, SS321, 904, C276, 2205,  2207, Duplex, Hastelloy, etc

Normal Lateral Tube QTY (PCS)

4, 6, 8, 12,16, etc. According to request, actual flow rating, and application.

Lateral OD Range (mm)

25 to 80mm, customized

Normal Hub (mm)

108, 133, 219, Customized

Main Hub and Lateral Connector types

Thread, Flange

Diameter Range(mm)

According to the tank diameter. (Usually, 200mm shorter than tank diameter)

Slot Range(mm)

Normal slot 0.2, 0.25, 0.3, 0.35, 0.4mm.Slot according to request.

Wedge Wire(mm)


1.2x2 /1.5x2

Support Rod (mm)



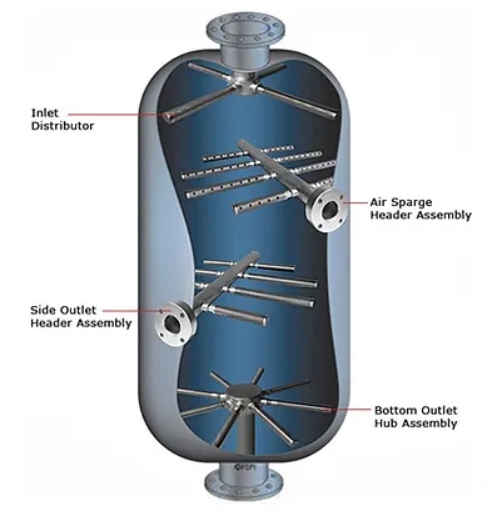

Structure of the Distributor

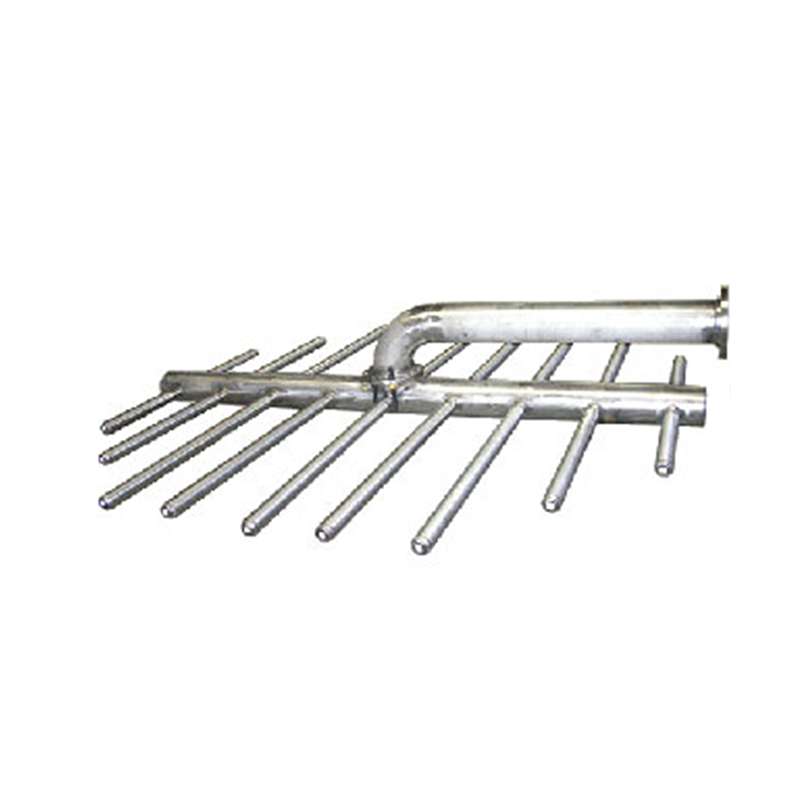

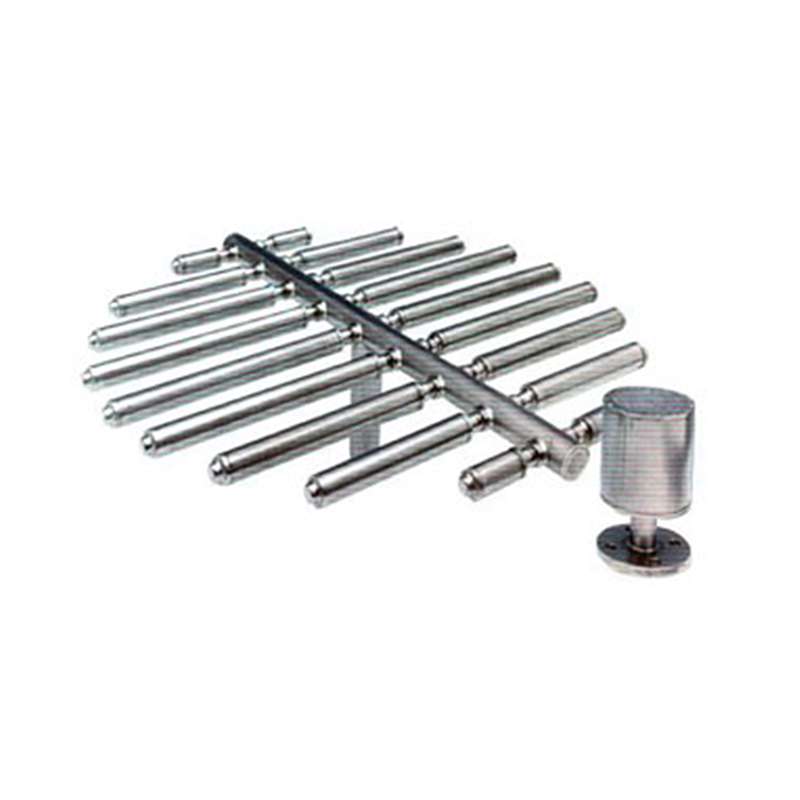

Header lateral(Fishbone type distribution), hub lateral(Decentralized)


Customized According To Requirement


Wedge Wire Hub and Header Laterals application

Hub and Header Laterals find extensive use in various applications, including:

-Quartz sand filters

-Activated carbon filters

-Multi-media filters

-Ion exchange systems

-Municipal rapid gravity sand filters

-Activated carbon vessels

-Large ion exchange columns

-Swimming pool filters

Our engineers would be happy to collaborate with you and determine the best Wedge Wire Hub and Header Laterals for your application.
