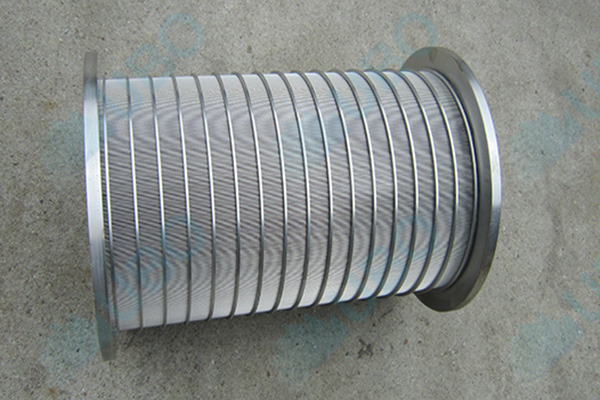

The Drum Screen cylinder filters are made of stainless steel wire, which is the most popular type because of its outstanding chemical stability and corrosion resistance. It is composed of a working profile and a support profile. It is produced on an automotive machine. The support profiles are placed on the suit position of the machine, during the surface profiles are spirally wounding, the support profiles are welded onto the surface profiles.

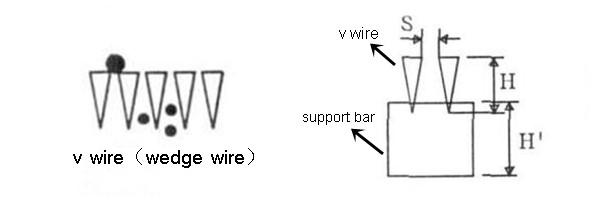

The screens of drum screens are made up of rods and profile wire. The rod can be round wire, triangular wire, or trapezoid wire. The profile wire is a triangular wire (V-shaped wire). This type of pipe screen has a structure and high open area, as well as accurate slot dimensions. At the same time, the stainless steel pipe screen has heat-resisting, anti-corrosive, good machine capability, last long, are safe and reliable, and so on characteristics. It can be used in many kinds of medium filtering.
Industrial filtration processes such as chemicals, Sugar, Coal Mining & Quarrying, Cement, Industrial wastewater Treatment, etc.
Pre-filter in urban & industrial waste treatment plants to improve the performance of the clarifier by dramatically reducing the load.
Fiber removal in the Starch industry.
Size (inch) | O.D (mm) | Slot (inch) | Collapse Strength (Psi) | Tensile Weight (Ton) | Wrap(thick*deep) (mm) | Rods (mm) |
4 | 117 | 0.04 | 395 | 6 | 2.2*3.0 | 3.8mm/22 |
4 | 114.3 | 0.04 | 395 | 6 | 2.3*3.0 | 3.8mm/22 |
6 | 168.3 | 0.04 | 252 | 8 | 2.3*3.5 | 3.8mm/32 |
8 | 219.1 | 0.01 | 399 | 10.5 | 3.0*5.0 | 3.8mm/48 |
8 | 219.1 | 0.02 | 370 | 10.5 | 3.0*5.0 | 3.8mm/48 |
8 | 219.1 | 0.04 | 323 | 10.5 | 3.0*5.0 | 3.8mm/48 |
10 | 273.1 | 0.01 | 206 | 11 | 3.0*5.0 | 3.8mm/50 |
10 | 273.1 | 0.02 | 191 | 11 | 3.0*5.0 | 3.8mm/50 |
10 | 273.1 | 0.04 | 167 | 11 | 3.0*5.0 | 3.8mm/50 |
