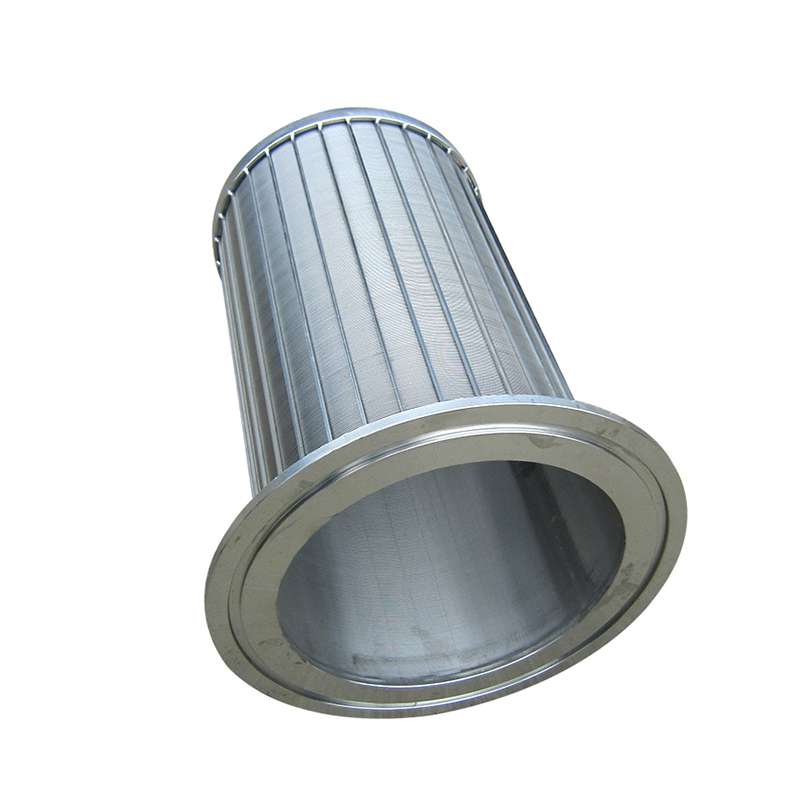

Solid-Liquid Separation Sieve Drum

Feb. 10, 2022

Solid-liquid separation sieve cylinder: filter and separate solid particles in liquid or gas, or make good contact with different material components, speed up the reaction time, the protection device works normally, and the air is clean. Barrier, clean flow out through the filter. The liquid filter element enables the liquid (including oil, water, etc.) to purify the contaminated liquid to the state required for production and life, that is, to make the liquid achieve a certain degree of cleanliness.

Solid-liquid separation screen material: 304, 304L, 316, 316L, 321, imported high-strength stainless steel wedge wire. Backwash filter element, feces dehydration, wet and dry separator. Common size gap: 0.1-0.3mm Backwash filter element: 0.3-0.4mm chicken manure dehydrator; 0.5-0.6mm dry and wet pig manure separator; 0.75mm--1mm dry and wet cow manure separator. Inner diameter: 175mm, 177mm, 180mm 195m 198mm 205mm 260mm; Length: 450mm, 495mm, 510mm, 550mm, 600mm, 610mm, 800mm.

Product features: high screening rate, wear resistance, corrosion resistance, anti-skid, anti-vibration, strong elasticity, good toughness, not tight. The mesh section is trapezoidal or wedge-shaped. There are gaps. The cold-rolled screen is made of stainless steel wire, and the support bar is welded by automated production equipment. The screen is evenly welded, the welding quality is stable, the porosity is high, the service life is long, the strength is high, the rigidity is high, and the bearing capacity is strong. Various shapes of screen filter devices are made.

Uses: Widely used in screening, filtration, dehydration, desliming, and other operations in many industries. With high strength, rigidity and bearing capacity, it can be used to make rigid screening and filtering devices of various shapes, and the separator is suitable for centrifuges, dry and wet), and mesh holes for feces dewatering centrifuge accessories, which are pigs, cattle, chickens, As well as various large and medium-sized livestock farms for animal manure residue, wine, medical treatment, slaughtering wastewater, biogas residue liquid, video filters. Ideal screening equipment.

 Solid-Liquid Separation Sieve Drum

Special models and sizes can be customized according to drawings or samples!
