Screen-Sugar Mill Screen

Sep. 15, 2020

We are the manufacturer of sugar mill screen for export in China.

Material: Stainless steel304, 316, 316L, 321, 904L, 2205, 2507, C276…
Slot size: 0.01mm – 2.00mm(or as your need)
wedge wire bend(Sieve Bend Panels): 30, 45, 60, 90(or as your need).
Diameter(rotary drum screen type): 30” – 120”
Length: 30” – 400”
All specifications and sizes support customization.

Sugar Processing Screen Types

Centrifugal screens

Sieve bend screens

Rotary drum filter (Juice) screens

Pulp press screens

Diffuser screens

Beet and cane pre-handling screens

Fine screens

Our screens are designed and manufactured to achieve the best possible separation and molasses run-off.

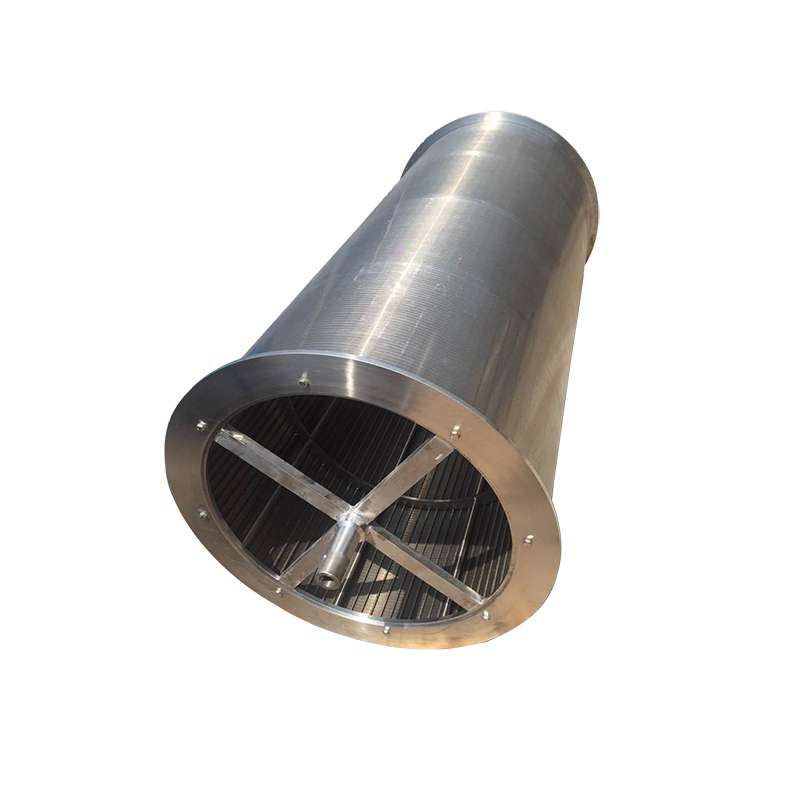

Rotary drum screen

wedge wire Rotary drum screen

The high-flow pump delivers the material to the rotary drum screen.

The transmission system drives the wedge wire drum screen to rotate for solid-liquid separation.

The entire separation process is carried out on the surface of the screen with special V-shaped structure slots.
The liquid and some small-sized solids pass through the V-shaped gap, and the larger solids are transported to the outlet end.

The Vee-Wire screens are designed to fit the specifications of the system and are ideal for replacing worn-out screens in existing applications.

We have a variety of wedge wire welding techniques with various tilt angles, which greatly improves the working efficiency of the rotary drum screen.

We have advanced surface treatment technology, which not only makes the product smooth and bright but also improves the corrosion resistance of the product and increases the service life.

Continuous Centrifuge Baskets

Continuous Centrifuge Baskets

The centrifugal baskets produced have a solid structure, high strength, precise gaps, and a large opening rate.

Years of production experience allow us to improve the recovery rate of sugar crystals through advanced production technology.

We use advanced ring fusion welding technology to connect the profile wire and the support bars.
The reasonable structure makes it able to withstand high stress, foreign object impact, and extreme load conditions.

Retains More Sugar:
Compared to electroforming and laser screens, centrifuge baskets help you produce more sugar per ton.

Wide selection:
We can meet products with gap sizes of 20 microns and above, we can be customized according to customer needs.

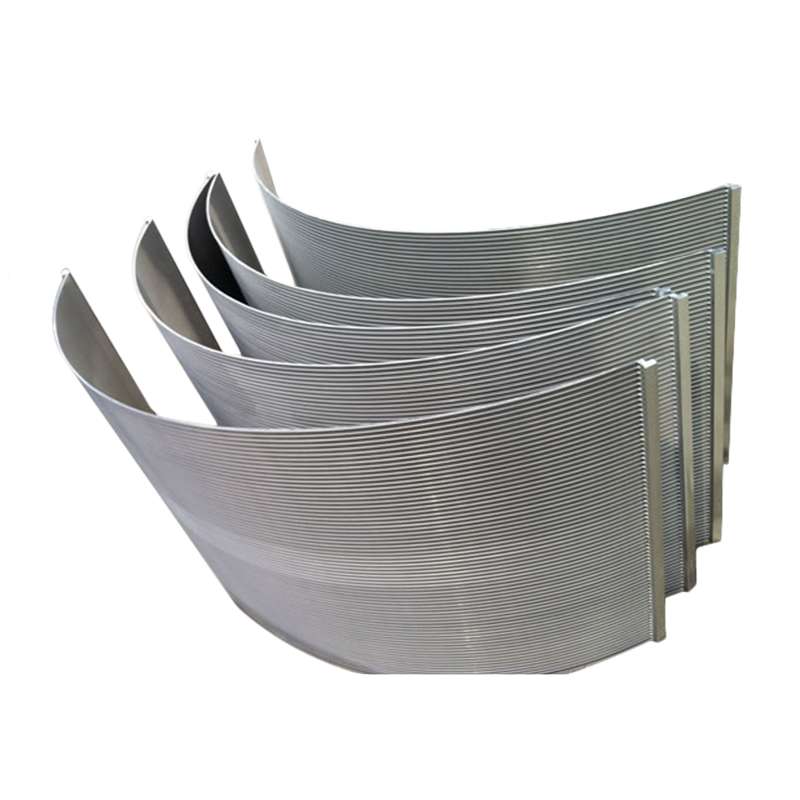

Sieve bend screen [DSM Screen]

Sieve bend screen DSM Screen

Low cost, low energy consumption, easy installation, and wide application.

For sugar clarified juice with bagasse

Static sizing screen.

Compared with flat-screen, strong screening ability.

The gap of the wedge-shaped mesh is perpendicular to the flow direction of the material.

The larger solid particles move down the surface of the screen, removing a large portion of the fluid.

The special V-shaped continuous slot structure is not easy to block.

The use of corrosion-resistant stainless steel raw materials, strong corrosion-resistance (can be customized 904L material products).

Easy to replace. Replacement can be completed within ten minutes.

The wedge wire with a tilt angle has been proved to have better separation efficiency in practice. We can customize arc screens with various tilt angles for customers.

The sieve bend screen is widely used, in addition to sugar mills, it can also be used in sewage treatment, washing water purification, poultry, fish, fruit and vegetable wastewater treatment, mineral treatment, coal preparation, paper making, textile mills, and so on.

Sieve bend screen Vs Flat wedge wire screen
Simply bend the wedge wire screen, and the performance of the product will change. After the screen is bent, the screening capacity will be enhanced. So in the sugar factory, the sieve bend screen is used.

Rotary drum sugar (Juice) screen
Product performance (screening capacity): Rotary sugar screen > Sieve bend screen.
Frequently asked questions in use: Welding, roundness, error control.
Welding: The common welding methods are plasma welding, argon arc welding, etc. Compared with argon arc welding, plasma welding is more excellent, the welded joint is stronger, and can achieve the same mechanical strength as the non welded joint.
