DSM Sieve Curved Screens-Reliable screening for all your projects

May. 06, 2023

DSM Sieve Curved Screens-Reliable screening for all your projects

Designed with your operation in mind, Our DSM Sieve Bend Screens are a curved concave wedge bar type of stationary screen made to be rugged, compact, efficient and easy to operate.

With no moving parts, these DSM Sieve Bend require minimal maintenance. Our full line of DSM Sieve Curved Screens is available in the following types: 45°, 60°, 120°, 270°, 300°, and custom.

They are often used in the following industries: mineral processing, chemical, food, and pulp and paper.

Each of these DSM Sieve Bend screen sizes has been tailored for a variety of process applications. For example, the 45° DSM Screen is best suited for thickening and screening, whereas the 120° type DSM Screen is capable of thickening pulp, recovering fibre, or separating fibre as small as 100 microns in length from a water suspension. It is very compact and requires minimal maintenance.

The flow to be screened is fed through a low-pressure nozzle which distributes the flow tangentially over the full screen width by means of an adjustable slice that optimises feed velocity. As the suspension flows along the screen plate, thin layers of water are ”sliced off” by the screen bars and pass through the slots together with fine particles.

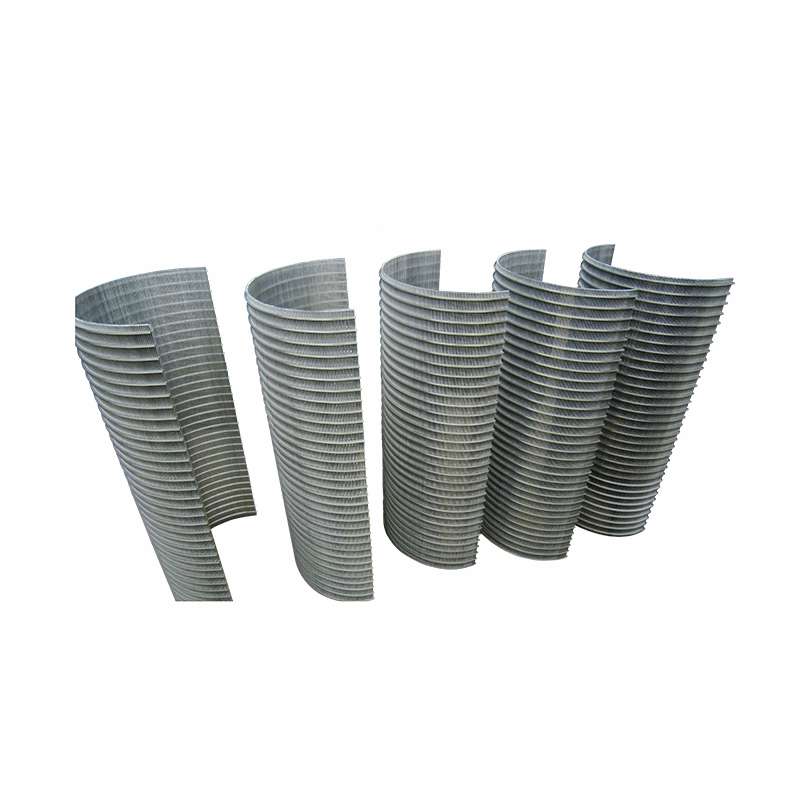

DSM Sieve Curved Screens

Goodbye high-maintenance: a DSM Sieve Bend Screen made to save space and money

Designed with you in mind, our DSM Screens are meant to be not only compact, rugged, and durable, but also extremely efficient and easy to use. Additionally, they are low cost and low maintenance. Because our DSM Screens have no moving parts, they require very little maintenance. This also makes them lower in cost.


Since our DSM Screens are compact, they’ll leave ample space for other parts and machines. Their relatively low cost means you’ll have more funds to spend on the bigger-picture elements of your operation.

Product Features

DSM Screens: your permanent, low-maintenance screening solution

In your search for the most reliable and highest-quality DSM Screens, there are a number of features that are high on your priority list.

You want a supplier that offers screens in many types so that you can find the right fit for your machine and use case. You demand a solution that is low maintenance and compact. These are just some of the features that come standard with our DSM Screens. Here is a larger list of all the features of our DSM Screens:

  • High capacity

  • Non-clogging

  • Permanent screen media

  • No moving parts

  • Little space needed

  • Low equipment and installation costs

  • Low maintenance costs

  • Insensitive to changes in consistency or freeness

  • Operating flexibility due to adjustable slice

YUANLV is a full flowsheet technology and service supplier to the industrial filtration and screening industries. We help our customers to improve performance, lower operating costs and reduce environmental impact. Our operations span the globe and we provide custom service and wedge wire filter products to every project. Please contact us now: admin@yuanlvfilter.com
