Material: stainless steel 304, 304L, 304HC, 316, 316L, 321,430.

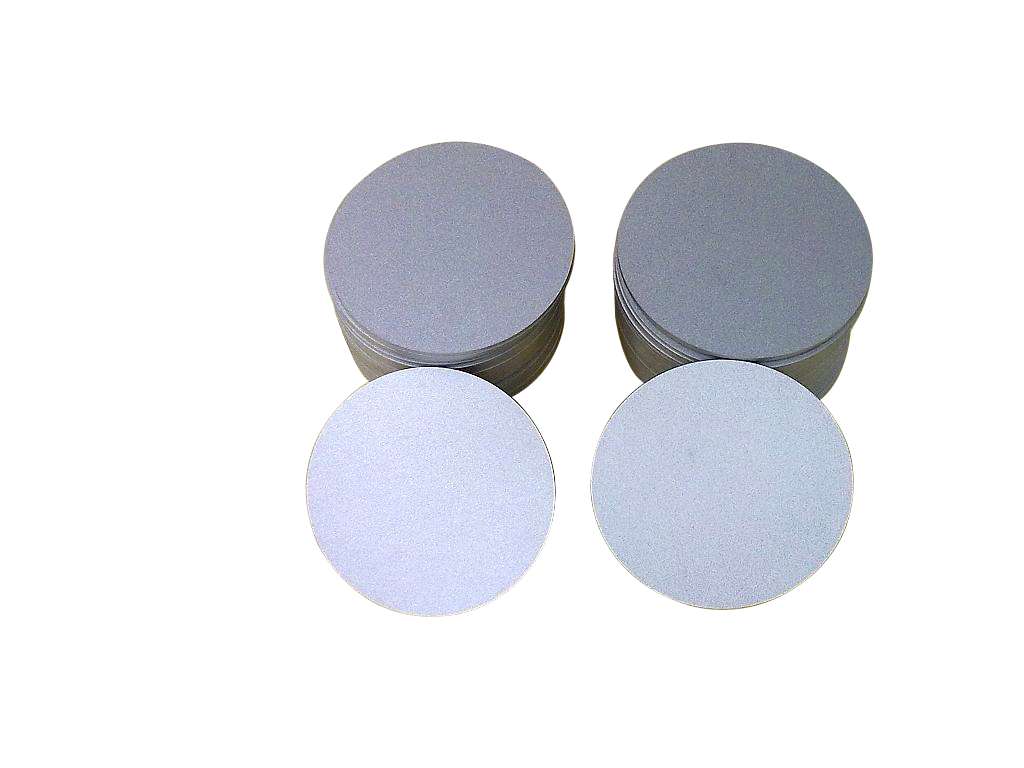

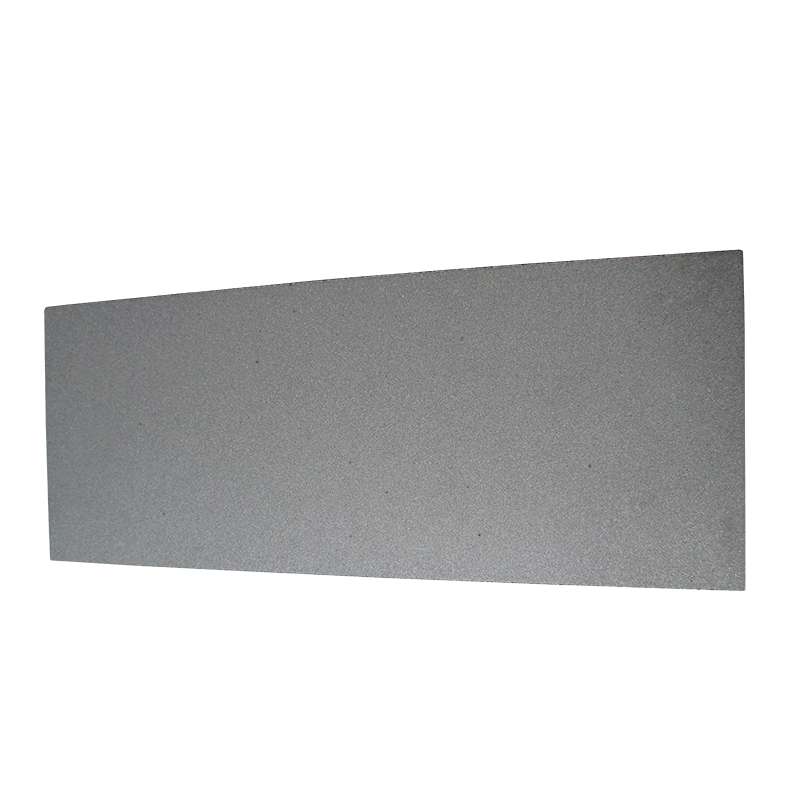

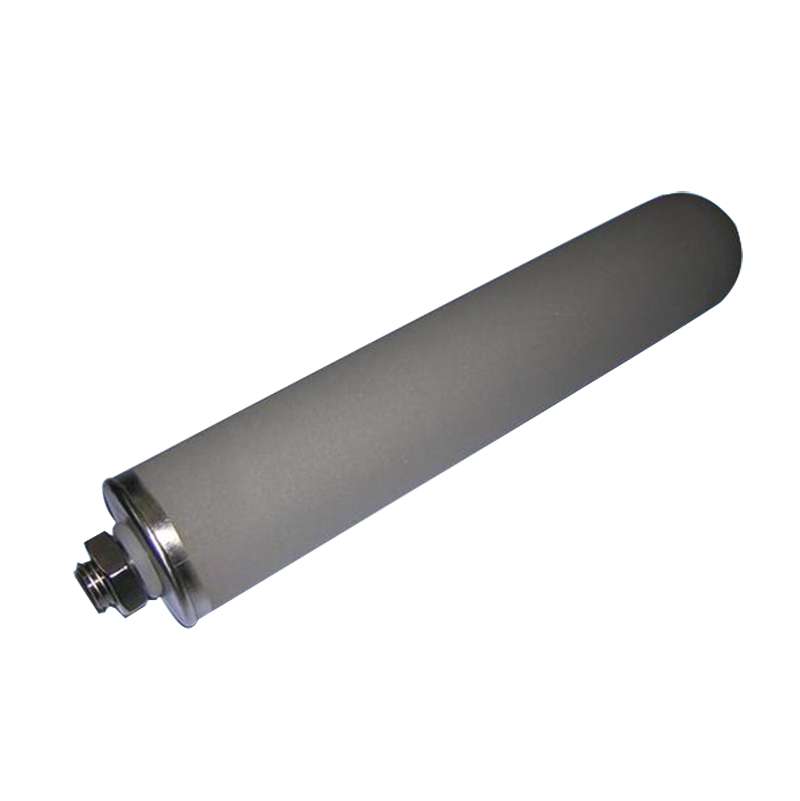

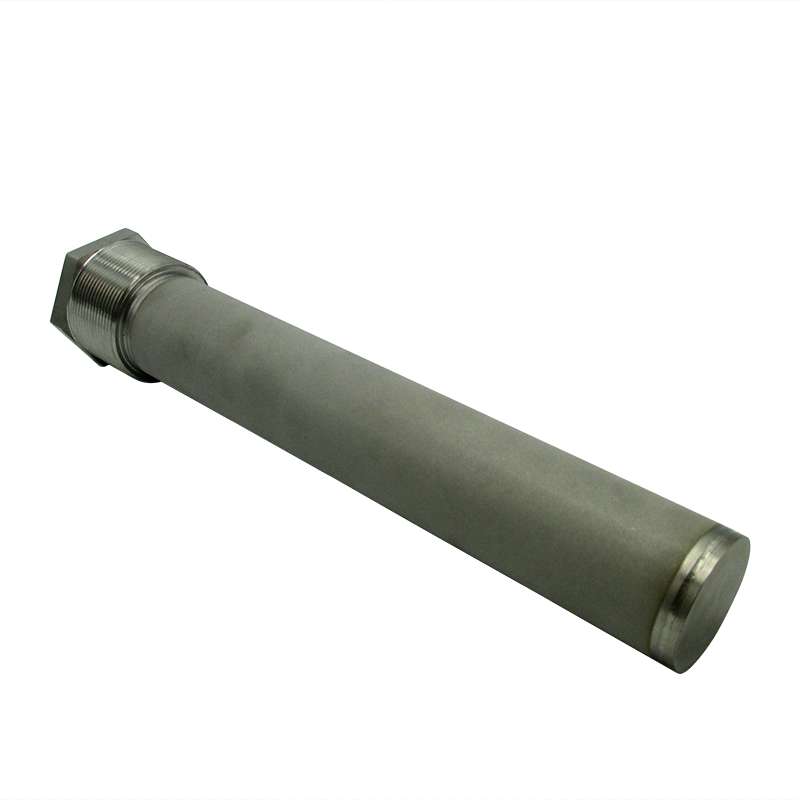

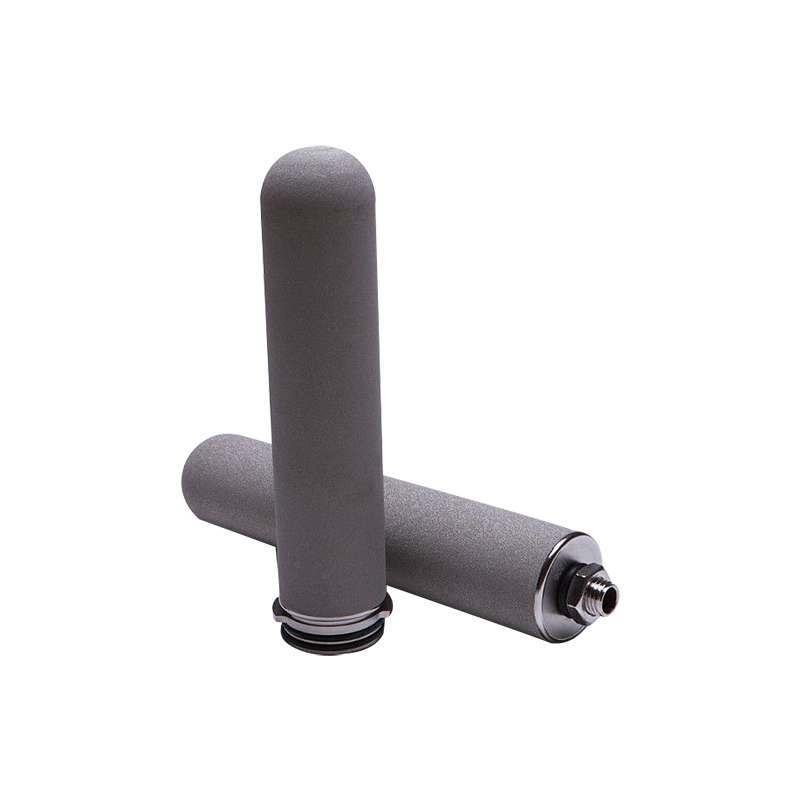

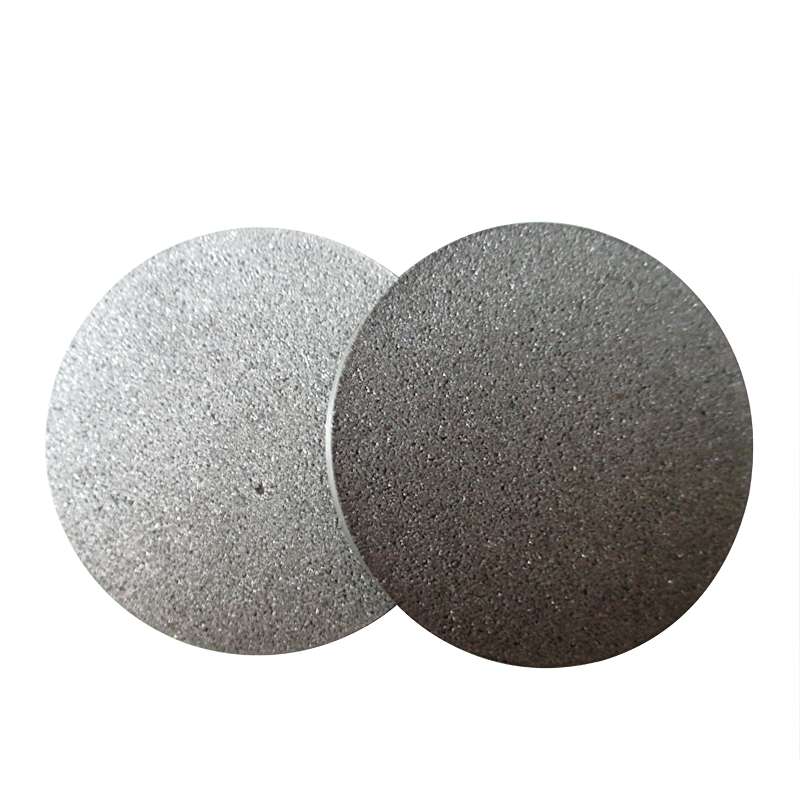

Types: Cartridge, disc, sheet, tube, and plate filter cartridges.
Application: catalyst retention and recovery; air sparging; gas filtration; liquid filtration; fire flame arrester.
Product Details
A sintered powder filter is a type of filter element made from metal or non-metal powders that have been processed through a sintering technique.
Sintered powder filter element also named metal porous sintered filter is made of titanium or stainless steel powder. It is a new style of material for filtering.
It loads stronger heat stress and concussion and can work in a higher temperature and corrupt medium. They are recommended for the filtration of air or liquid at higher operating temperatures and corrosive environments.
In-depth filtration property
High mechanical strength and pressure tolerance.
Good corrosion resistance, and excellent durability.
Stable pore shapes, high permeability.
High dirt-holding capacity.
Wide service temperature, ranging from -200 °C to 1000 °C.
It can be back-washed easily, which prolongs service life.
Filtering | Filtration | Maximum | Permeability | Permeability | Thickness | Compression | Bubbling |
S9 | 0.2 | 2.5 | 1 | 0.6~10 | 3.0 | ||
S8 | 0.5 | 4 | 3 | 0.6~10 | 3.0 | ||
S7 | 1.5 | 6 | 5 | 0.6~10 | 3.0 | ||
S6 | 2.5 | 10 | 0.09 | 10 | 0.6~10 | 3.0 | 9.16 |
S5 | 5 | 15 | 0.23 | 40 | 0.6~10 | 3.0 | 6.1 |
8 | 20 | 0.91 | 80 | 0.6~10 | 3.0 | 4.6 | |
S4 | 10 | 30 | 1.81 | 160 | 0.6~10 | 3.0 | 2.6 |
S3 | 28 | 60 | 3.82 | 350 | 0.6~10 | 3.0 | 1.8 |
35 | 80 | 7.29 | 500 | 0.6~10 | 3.0 | 1.4 | |
S2 | 40 | 100 | 9.43 | 700 | 0.6~10 | 3.0 | 1.1 |
S1 | 65 | 160 | 15.1 | 1000 | 0.6~10 | 3.0 | 0.66 |
The sintered powder filter cartridge is widely used for liquid, gas, solid filtration, gas sample collection, and sound attenuation in many industries such as aerospace, petroleum, food, metallurgy, etc.
1. Used for gas distribution in the fluidized bed.
2. Used for washing and drying in the pharmaceutical industry.
3. Used in water treatment and filtration of gas in the field of food and beverage.
4. Used for fine filtration of hydraulic oil or lubricating oil in the machinery industry.
5. Polymer filtration in the chemical industry.
6. Liquid and gas filtration at high temperature and pressure conditions.
7. Solid catalyst recovery.
8. Steam Filtration, and de-dusting.
