Wedge Wire Screen FAQ Knowledge

Feb. 23, 2021

Wedge wire screen, also known as Johnson screen, is mainly divided into two types: Screen tube and Screen plate. The wedge wire screen filter strainers are composed of a wedge-shaped or "V"-shaped stainless steel profile wire and a stainless steel support rod. The smooth surface of the filter element is the filter surface, and the gaps are strips. As the best filter strainer for various forms of automatic filters (such as automatic backwashing filter housing, self-cleaning filters, Horizontal Filter housing, or cartridge filters), it is widely used in fluid filtration in various industries such as the petrochemical industry, coal mines, chemical industry, sewage treatment, food, pharmaceutical, paper pulp, environmental protection, etc.
Structural principle: The stainless steel wedge wire screen filter is a metal mesh-shaped structural element used for screening and filtering. It has high strength, rigidity, and load-bearing capacity, and can be made into a rigid screening and filtering device of various shapes.

Product Features
1. The continuous gap greatly increases the flow area, so it can be in good contact with the aquifer.
2. The V-shaped screen bar structure forms a wedge-shaped gap to avoid clogging and ensure smooth circulation.
3. Long service life, continuous pores can be used effectively for a long time, Reduced maintenance costs.
4. The wedge wire filter pipe has a strong structure, high porosity, and precise gap size.
5. The wedge wire filter tube is easy to backwash, has a long service life, reliable quality, and low overall cost.

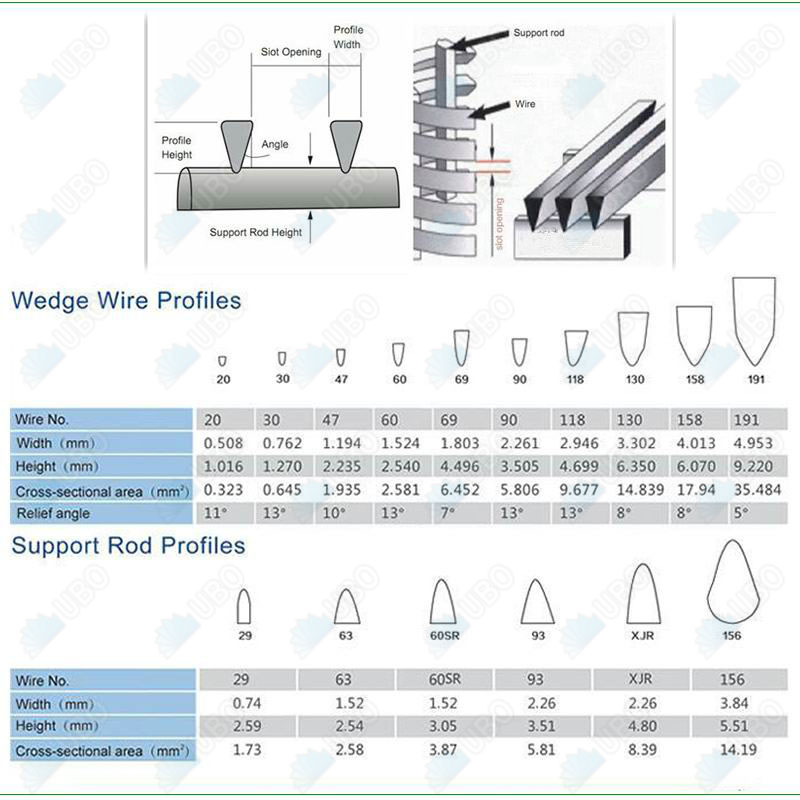

Wedge Wire Screen Knowledge

Note: Material: SS304, SS304L, SS316, SS316L, SS321, 904, C276, 2205, 2207, Hastelloy, etc.

Wedge Wire Products flow direction:

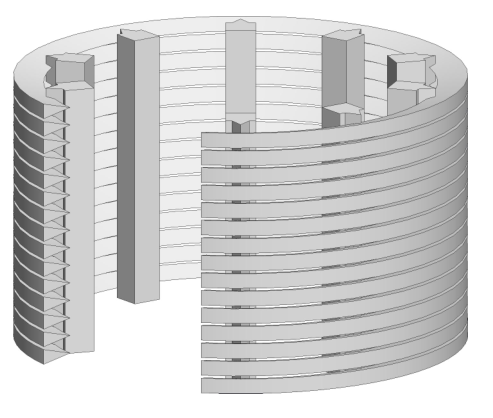

1. Radial Slots flow direction: outside to inside
Wedge Wire Products flow direction

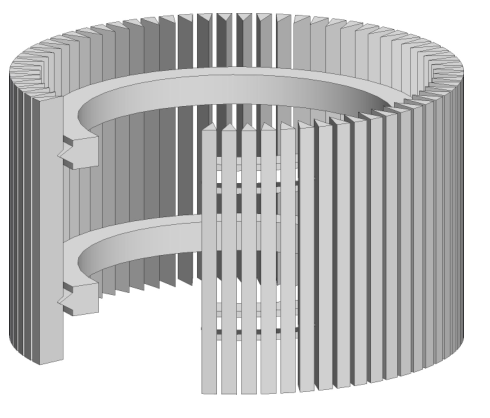

2. Axial Slots, flow direction: outside to inside
Wedge Wire Filter Products flow direction

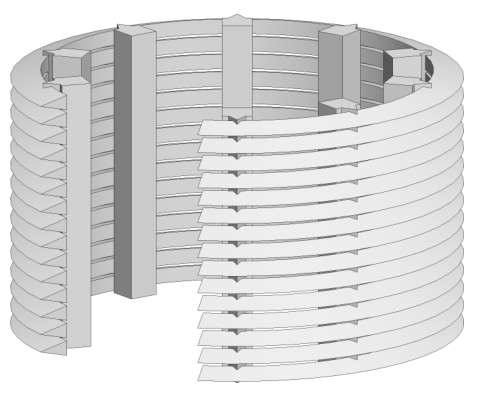

3. Radial Slots, flow direction: inside to outside
Wedge Wire flow direction

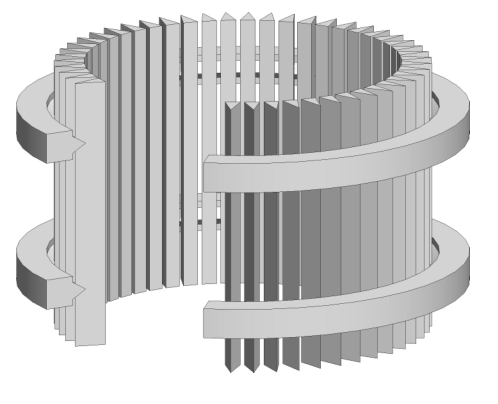

4. Axial Slots, flow direction: inside to outside
Wedge Wire Screen axial slots

5. Special Design: inverse welding
Wedge Wire Screen flow direction
Enhanced form

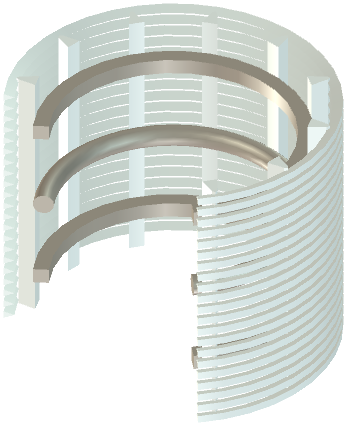

1. Ring reinforcement (round steel or square steel)
Wedge Wire Screen with Ring reinforcement

2. Lined pipe
Wedge Wire Screen with Lined pipe

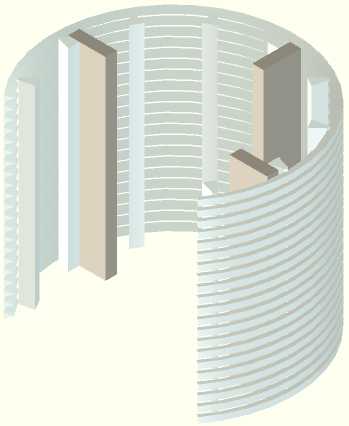

3. Longitudinal stiffener (welded flat steel)
Wedge Wire ScreenWedge Wire Screen filter

Connection Type

1.  Threaded connection
The threaded connection has two connection types: external thread and internal thread, and there are multiple thread connection types, such as M, G, NPT (N), and Wyeth thread, which can be made according to customers' needs.

2. Flange connection
Product features
Gap (mm): 0.02-0.5, can be made according to customer requirements
The opening rate is up to 30%.
The maximum length is 6 meters
OD :  φ20mm to φ1250mm

We are the wedge wire screen manufacturer and designer, For more professional information, please leave a message to us now.
