The Introduce of the Sintered Filter Disc

Stainless steel sintered wire mesh filter disc is made of multi-layer sintered woven mesh - plain dutch weave and plain weave type. As an important type of sintered metal filter mesh, our sintered filter discs can be manufactured in split and integral type used for drying and filtering. Sintered filter disc plate with long service life for drying, gas and liquid filtering in the pharmaceutical, petrochemical, food industry and chemical fiber industry.

Sintered stainless steel wire screen filter disc panel has the features as follow:

• Resistance to high temperature, high pressure, corrosion, acid, and alkali.

• High strength, high filter rating, good dirt holding capacity, repeated washing.

We can supply sintered mesh filter discs in the size:

• Material: Monel wire and stainless steel AISI304, AISI316, AISI316L.

• Diameter: 10 mm to 3000 mm.

• Filter Rate: 2 microns to 300 microns.

• Thickness: 1 mm to 5 mm.

• Heat resistance: -200 °c - 600 °c continuous filtration.




Step-1： Sintered filter disc can be made into multiple sizes and shapes for customization.

Step-2： Sintered filter disc rings.

Step-3：Inner diameter measurement of ring shape sintered filter disc.

Step-4: Thickness measurement of ring shape sintered filter disc.

Step-5；Outer diameter measurement of ring shape sintered filter disc.

Step-6: Positive view of column filter disc.

Step-7:Top view of column shape sintered filter disc.

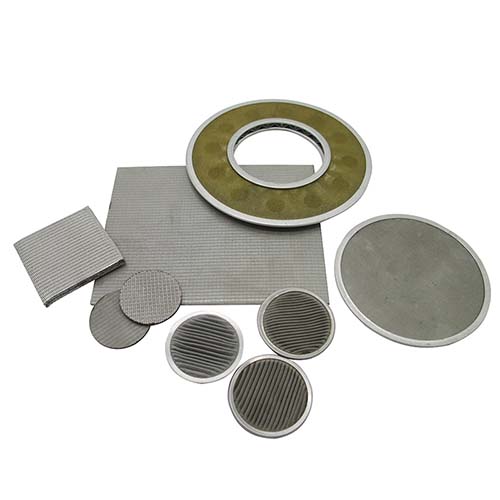

Step-8: Different shape sintered filter disc
