Protect Your Water Treatment Systems with Stainless Steel Resin Traps

Jun. 03, 2024

Water treatment systems rely heavily on ion exchange resins and other filtration media to produce clean water. However, without proper protection, these media can escape into the system, causing contamination and damage to downstream equipment.

This is where stainless steel resin traps come in – a simple, yet effective solution to prevent media loss and ensure the integrity of your water treatment system.

What are Resin Traps?

A resin trap, or a media trap, is a protective device that captures any ion exchange resin or other filtration media that may escape from the water treatment equipment. This prevents water distribution system contamination and protects downstream equipment, such as RO membranes, pumps, and tanks.

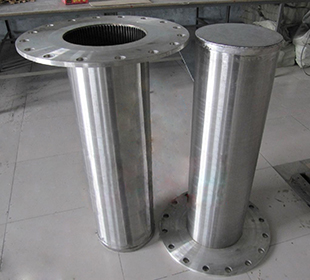

Stainless Steel Resin Traps

How Do Resin Traps Work?

Resin traps consist of a pipe housing and a wedge wire screen. The screen is designed to capture any media that may pass through, while allowing water to flow freely. In the event of a failure, the resin trap screen intercepts the escaping media, which can then be flushed out of the system through differential pressure.

Why Are Resin Traps Necessary?

Water treatment systems are prone to damage from corrosion, chemical attack, thermal damage, rapid flow changes, system age, and water hammer. When these systems fail, the ion exchange resin or other media can escape into the water distribution system, causing contamination and damage to downstream equipment. Resin traps provide an additional layer of protection against media loss, ensuring that your water treatment system operates safely and efficiently.

Benefits of Stainless Steel Resin Traps

Eliminate Mass Resin/Media Loss: Prevent ion exchange resin or other media from entering the water distribution system, reducing the risk of contamination and damage to downstream equipment.

Prevent Loss of Resin During Backwashing: Ensure that media is not lost during backwashing, reducing waste and minimizing the need for frequent replacements.

Protect Downstream Equipment and Pumps: Safeguard your equipment and pumps from damage caused by escaped media, reducing maintenance costs and downtime.

Choose YUANLV for Your Resin Trap Needs

At YUANLV, we offer high-quality stainless steel resin traps that effectively protect your water treatment systems. Our wedge wire resin traps are designed with fine raw materials and advanced welding processes, ensuring a durable and reliable solution for your media protection needs. Contact us today to learn more about our products and how they can benefit your water treatment system.

For more information on how our stainless steel resin traps can benefit your water treatment system, contact us today
