What is Pipe Base Screen?

Jun. 14, 2024

The Pipe Base Screen is a revolutionary solution designed to combine the hydraulic efficiency of continuous slot screens with the unparalleled strength of a pipe. This heavy-duty, high-flow system is engineered to support maximum well life and yield, making it an ideal choice for a variety of demanding applications.

What is a Pipe Base Screen?

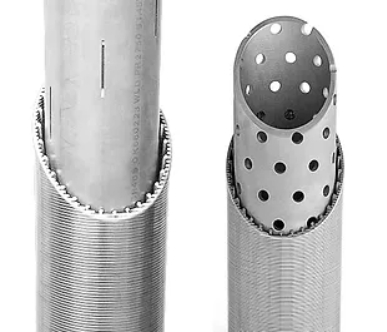

A Pipe Base Screen, often referred to as a double-layer screen, consists of a base pipe, an all-welded wedge wire screen, and a support bar. The base pipe can be either perforated or slotted, and it is typically made from stainless steel or carbon steel casing. The wedge wire screen is meticulously welded to the base pipe using support rods, creating a robust unit capable of withstanding harsh environments such as high pressure, high temperature, and slant wells.

What is a Pipe Base Screen

Key Features and Benefits

Hydraulic Efficiency: Combining the hydraulic efficiency of wrap wire screens with the strength of a pipe, these screens offer enhanced flow rates and operational efficiency.

Strength and Durability: The pipe-based design allows for smaller wrap wires, resulting in a greater open area without compromising structural integrity. This makes it suitable for deep well applications requiring additional strength.

Versatility: Pipe Base Screens can be easily modified to meet various well applications, including steam, water, injection, and waste disposal. Their design is adaptable to both gravel-pack and standalone operations.

Enhanced Performance: The longitudinal support rods on the screen jacket create channels that direct incoming flow to the nearest pipe perforation, ensuring efficient fluid movement and filtration.

Higher Collapse Resistance and Load Strength: These screens are engineered for higher collapse resistance and load strength, making them reliable in extreme conditions.

Customizable Options: YUANLV offers a range of standard pipe and telescope screen sizes, as well as custom diameters to meet specific application requirements. Threaded fittings can also be provided in any specification needed.


Pipe Base Screens are suitable for a wide array of applications, including:

Oil and Gas Wells: Ideal for high-pressure and high-temperature environments.

Water Wells: Efficient for both extraction and injection processes.

Waste Disposal: Effective in managing and filtering waste materials.

Why Choose YUANLV?

YUANLV is committed to providing high-quality Pipe Base Screens tailored to your specific needs. Our expertise in producing both standard and custom screen sizes ensures that you receive the perfect solution for your well application. Our products are designed to enhance well performance, increase operational efficiency, and extend the life of your well.

For more information on our Pipe Base Screens and to discuss your specific requirements, please contact us today. Our team of experts is ready to assist you in finding the best solution for your application.
