Header Lateral Screen Systems – Optimized Media Retention & Flow Control

Jun. 04, 2025
Share:

Header Lateral Screen Systems – Optimized Media Retention & Flow Control


Johnson screen header lateral systems are the ultimate solution for efficient media retention and uniform flow distribution. Engineered for adaptability, these header lateral assemblies excel across a broad spectrum of applications, ensuring precise liquid collection and distribution in vessels of varying sizes and configurations.


Connected to a central header pipe or hub, our header lateral screens are designed to deliver consistent performance in:

Side-, center-, top-, or bottom-inlet piping systems

Multi-directional flow handling (upflow, downflow, or counter-current)

Customizable layouts for diverse vessel shapes and dimensions

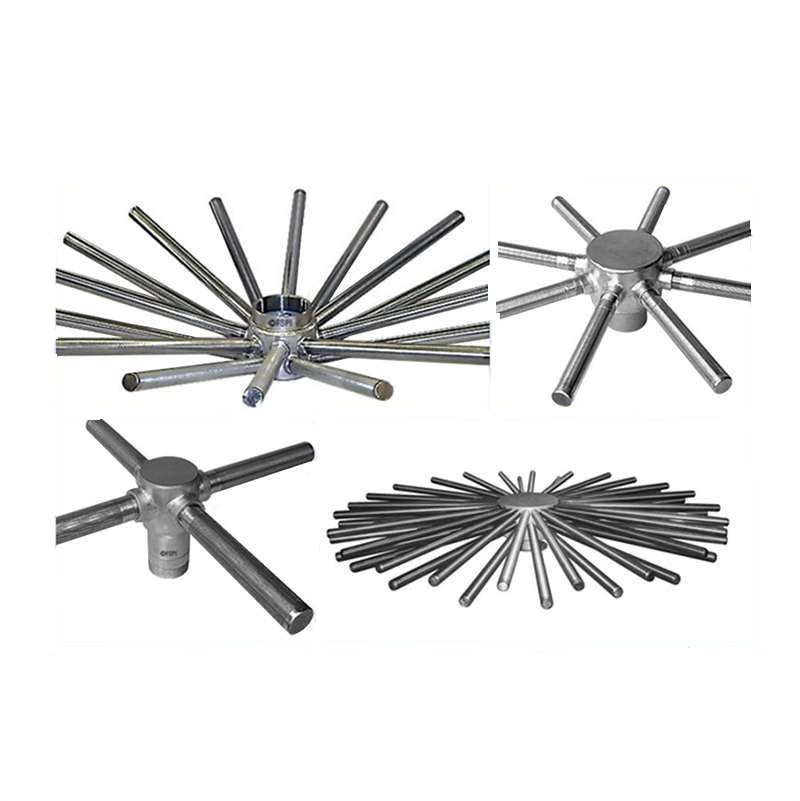

Johnson screen header lateral systems

Whether used as distributors or collectors, these systems ensure even flow distribution, preventing channeling and optimizing media contact time.

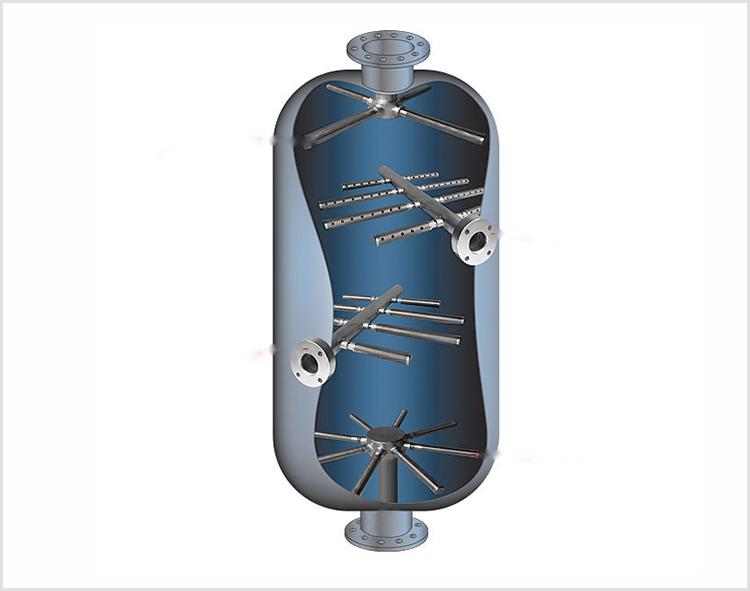

A typical setup includes:

Top-mounted laterals for uniform influent distribution.

Bottom or side collection laterals for efficient effluent extraction.


Customizable for Precision Performance

Every system is tailor-made to meet specific operational demands, with adjustable parameters such as:


1. Lateral spacing & quantity for optimal flow coverage.

2. Slot sizes ranging from 0.05 mm (and up in 0.03 mm increments) for precise media retention.

3. Stainless steel (SS 304/316L) or exotic alloy construction for corrosion resistance and longevity.

Header Lateral Screen Systems for ion exchange,Demineralization

Vessel Internals for Unmatched Durability

Our Vee Wire vessel internals are engineered to:

1. Minimize media loss & breakdown – Extending operational life.

2. Withstand high loads & pressure – Ensuring reliability in demanding conditions.

3. Improve backwash efficiency – Higher open area reduces pressure drop.

4. Reduce maintenance costs – Durable metal construction outperforms non-metallic alternatives.


Ideal for Critical Water Treatment Processes

From ion exchange and demineralization to softening and filtration, our systems are trusted in industries requiring:

Effective liquid distribution/collection

Secure media retention

Optimized backwash performance


Why Choose Our Header Lateral Screens?

1. Fully customizable designs – Adaptable to any vessel or flow requirement.

2. Superior materials – Weldable metals, including high-grade stainless steel.

3. Proven efficiency – Reduces downtime and operational costs.


Contact us Today!

As a leading provider of filtration solutions, we deliver high-performance screen systems tailored to your needs.

Request a quote now and discover more header lateral technology and products!
