100% Free Broken Nozzle Problem & Plugging Problem

High Pressure Resistance

Durable

Non Clogging

Very Low Pressure Lost

Higher Flow

Better Sand Control

Reduce Pumping Head

Energy Saver

Cost Saving

Downflow reactor can place extemely high loading on the media retention screens at the bottom of the vessel. In some cases, this can require a steel plate to carry the load. Obviously, some provision must be made for the process flow to pass through this plate.

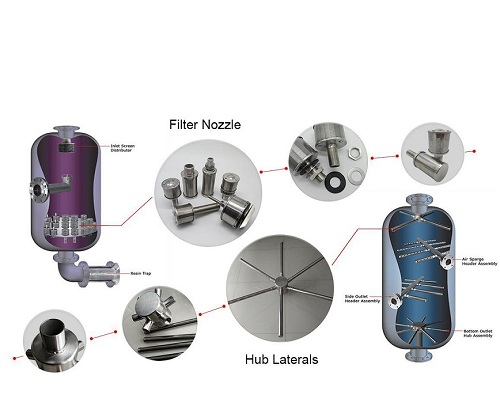

This can most easily and effectively be done by installing a number of screen nozzles uninformly across the plate. Johnson screen nozzles are an ideal choice based on their combination of high strength, high open area and non-plugging slot design.

Standard nozzles are 50 mm diameter and can be attached to the plate either with threaded end fittings or with “L” bolts. Slot openings are typaclly 0.20 mm wide and are of the unique plug-resistant Johnson Vee-Wire design, allowing particles to make only two-point contact with the edges of the wire.

In other designs such as wire mesh, particles can readily become entrapped in the mesh causing plugging and creating a continuing maintenance problem. Johnson screen nozzles are most commonly made with 304L or 316L stainless steel. Other custom nozzles can be designed to suit special process and installation requirements.
